Introducing the NEW triple-head merger from H&S!

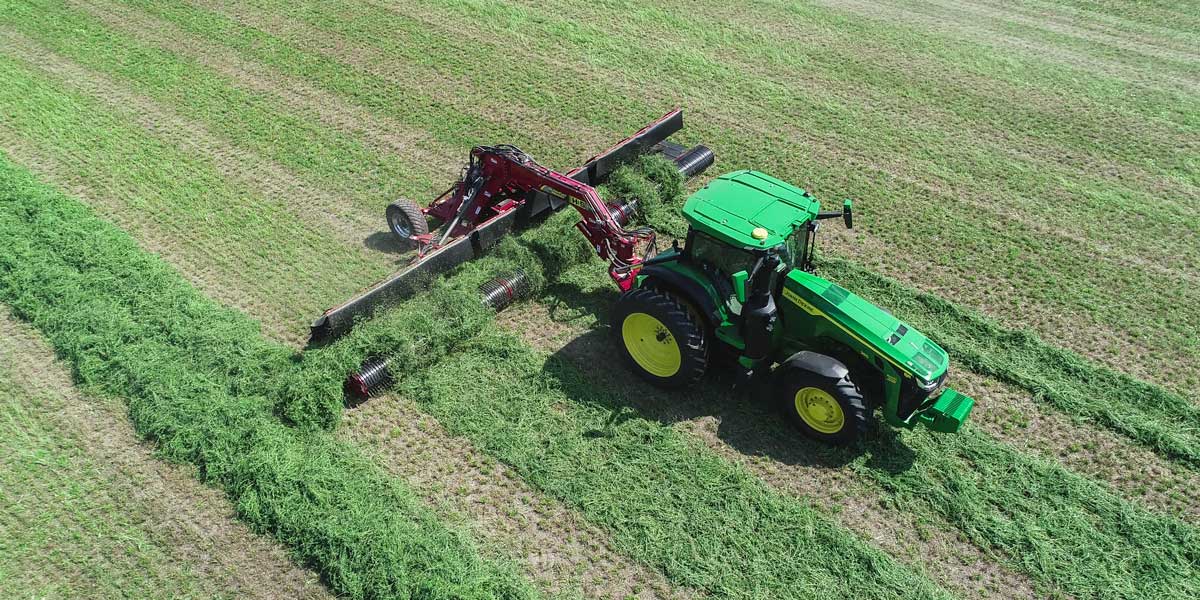

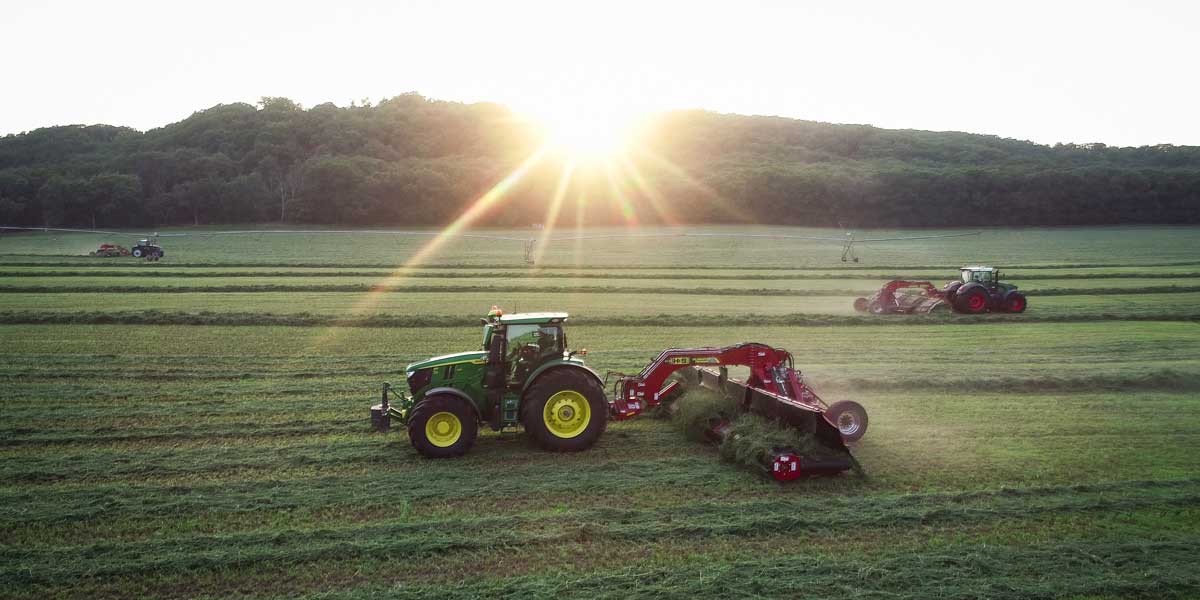

The UF6136 ULTRA-FLEX is a triple-head merger with 36’ of continuous working width and three 12’ heads. It’s ISOBUS ready with Aux-N capabilities, features a 42” cross conveyor belt (the widest in the industry), a self-contained hydraulic system so no tractor remotes are needed, and a patent pending self-contained steering system.
Other features include the patented SOFT-SHOE suspension system that wears the field as little as possible and extends skid shoe life, a patented center cam/center drive system, and heavy-duty 385/65 x 22.5 radial tires that don’t scuff in the field.
What particularly sets the ULTRA-FLEX apart is the capacity it can handle. This merger is designed to handle extreme conditions. It’s ideal for the custom operator or large dairy farm making 35′ triple-mower cuts in extreme terrain that needs to move a lot of material in a short amount of time.
UF6136 Model Year 2024 is a limited release.
- 36′ of continuous working width with three 12’ pick-up heads
- ISOBUS ready with Aux-N capabilities

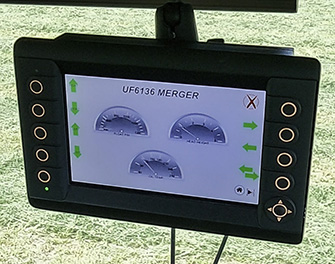

- Optional in-cab display
- Most head travel in its class, ideal for merging uneven terrains.
- Patented SOFT-SHOE suspension system
- Softest merger head footprint in the industry
- Patented center cam/center drive system
- 42” cross conveyor belt, the widest in the industry!
- Dual drive cross conveyors
- Self-contained hydraulic system. No tractor remotes needed!
- 65-gallon reservoir
- Hydraulic over electric logic (manual overrides)
- Defaults belts to the right
- 2-point hitch
- Highest torque-rated hydraulic motors in the industry
- Heavy-duty 385/65 x 22.5 radial tires don’t scuff in the field
- Hydraulic steerable rear axle (patent pending)
|Transport Height||11′ 10″|
|Pick-up Heads||3 (12′)|
|Head Travel||20″ Left and Right / 16″ Center|
|Pick-up Teeth||Rubber Mounted|
|Cross-Conveyor Belt Width||42"|
|Cross-Conveyor On/Off/Right/Left/Split||Electric-over-Hydraulic (adjustable in-cab)|
|Skid Shoe Height||Hydraulic (adjustable in-cab)|
|Head Suspension||Exclusive SOFT-SHOE Suspension Technology System|
|PTO||1 3/8" or 1 3/4 1000 RPM Std|
|Oil Reservoir Capacity||65 gallon|
|Hydraulic Requirements - Standard Unit||No hydraulic requirement from the tractor|
|Tire Size||385/65 x 22.5 radial tires|
|Tractor Size||150 HP|
