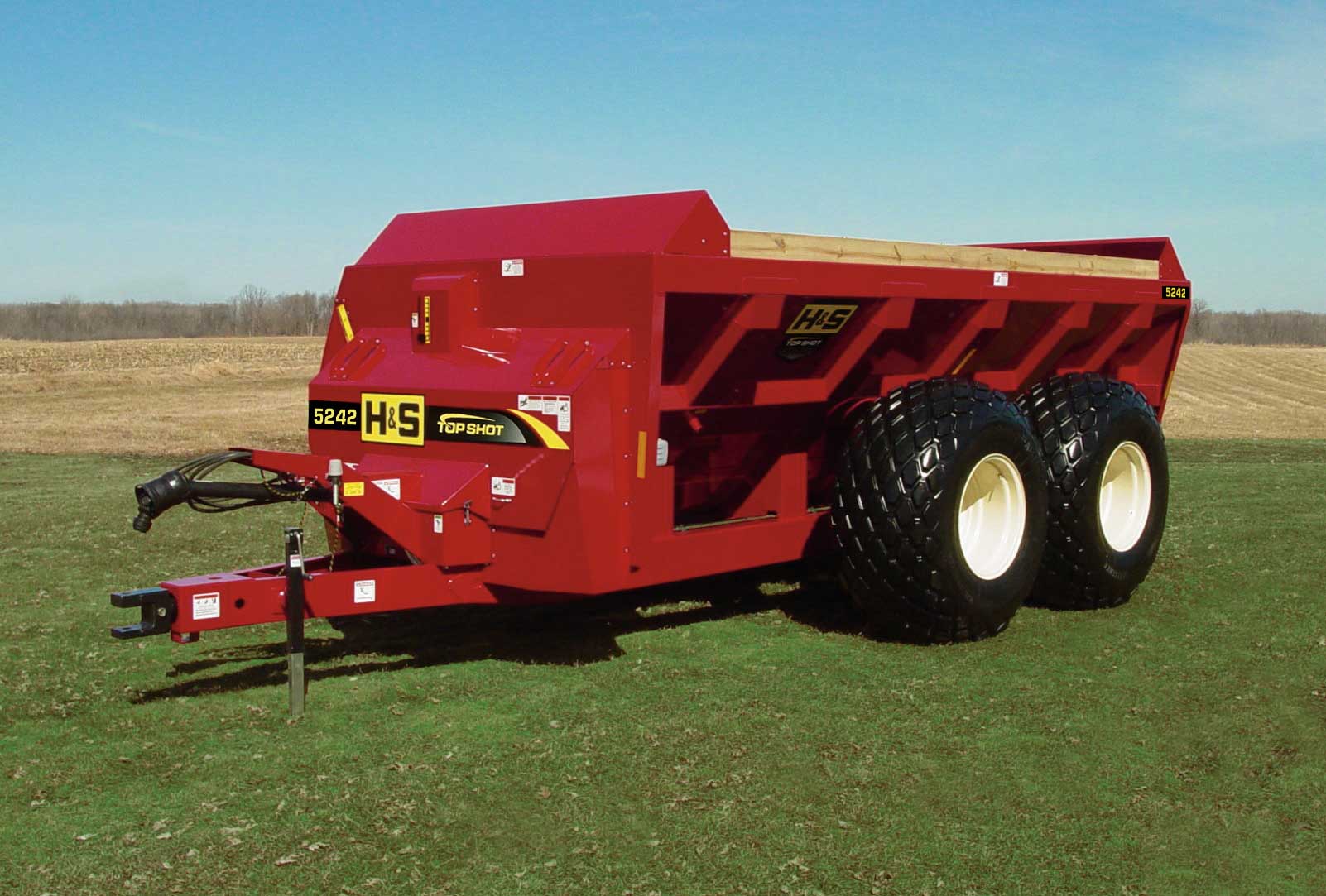

TOP SHOT SIDE DISCHARGE MANURE SPREADER
MODEL 5242 – 4200 GALLON
ALL MODELS EXCEPT THE 5215 are available with the optional Digi-Star GT400, or Nutrient Tracker Scale System with GPS!
The heavy-duty expeller system with a quick release poly-lined fine spread pan, and side fins help cut the drift of material towards the tractor and spreader, and provide an excellent spread pattern.
- 40″ Wide “Top Shot” Expeller Beater
- 30″ Diameter Round Core Segmented Auger
- Heavy Duty Gearbox Reduction
- Overrunning Clutch /Torque Limiting Clutch
- Left Side Poly Lined Tank
- Front and Rear Splash Guards
- Flip-Over Adjustable Hitch
- Shear Bolt Protection
- The auger System hydraulically raise and lower a full 8″ to break-up material that may bridge during the unloading process.
- Automatic Chain Oiler System
- Highway Lighting System
- Remote Grease System
- Hydraulic Lid (Optional)
5226 | |
---|---|
CUBIC FT. STRUCK LEVEL | 347 |
GALLON CAPACITY | 2596 |
TANK LENGTH | 16′ |
OVERALL LENGTH | 22′ 8″ |
TANK WIDTH – TOP | 87″ |
AUGER DIAMETER | 24″ |
POLY LINED TANK | Left Side |
OVERRUNNING CLUTCH | Yes |
SHEAR BOLT PROTECTION | Yes |
PTO | 540 RPM Std. 1000 RPM Opt. |
EXPELLER WIDTH | 40″ |
FRONT SPLASHGUARDS | Standard |
REAR SPLASHGUARDS | Standard |
AUTOMATIC OILER | Standard |
HIGHWAY LIGHTING | Standard |
WEIGHT | 7,880# |
5234 | |
---|---|
CUBIC FT. STRUCK LEVEL | 451 |
GALLON CAPACITY | 3377 |
TANK LENGTH | 16′ |
OVERALL LENGTH | 23′ 7″ |
TANK WIDTH – TOP | 97″ |
AUGER DIAMETER | 30″ |
POLY LINED TANK | Left Side |
OVERRUNNING CLUTCH | Yes |
SHEAR BOLT PROTECTION | Yes |
PTO | 1 ⅜″ or 1 ¾″ 1000 RPM |
EXPELLER WIDTH | 40″ |
FRONT SPLASHGUARDS | Standard |
REAR SPLASHGUARDS | Standard |
AUTOMATIC OILER | Standard |
HIGHWAY LIGHTING | Standard |
WEIGHT | 10,940# |
5242 | |
---|---|
CUBIC FT. STRUCK LEVEL | 564 |
GALLON CAPACITY | 4200 |
TANK LENGTH | 20′ |
OVERALL LENGTH | 27′ 7″ |
TANK WIDTH – TOP | 97″ |
AUGER DIAMETER | 30″ |
POLY LINED TANK | Left Side |
OVERRUNNING CLUTCH | Yes |
SHEAR BOLT PROTECTION | Yes |
PTO | 1000 RPM 1 ¾″ Std. or 1000 RPM 1 ⅜″ Opt. |
EXPELLER WIDTH | 40″ |
FRONT SPLASHGUARDS | Standard |
REAR SPLASHGUARDS | Standard |
AUTOMATIC OILER | Standard |
HIGHWAY LIGHTING | Standard |
WEIGHT | 16,500# |
5242 TIRE SPECIFICATIONS | ||
---|---|---|
w/28L X 26 Tires | ||
SIDE LOADING HEIGHT | 93″ | |
HEIGHT @ REAR CYL. BRACKET | N/A | |
HEIGHT @ FRONT SPLASH | 101″ | |
HEIGHT @ REAR SPLASH | 101″ | |
OVERALL WIDTH | 125″ |
WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
Options
The 5234 & 5242 feature an optional hydraulic lid can be installed to open and latch from either side. A 3rd tractor remote is needed to operate the opening and closing of the lid. This remote is also used in conjunction with an electrical toggle switch to activate the switching of the hydraulic valve that operates the hydraulic cylinder to lock and unlock the lid.
