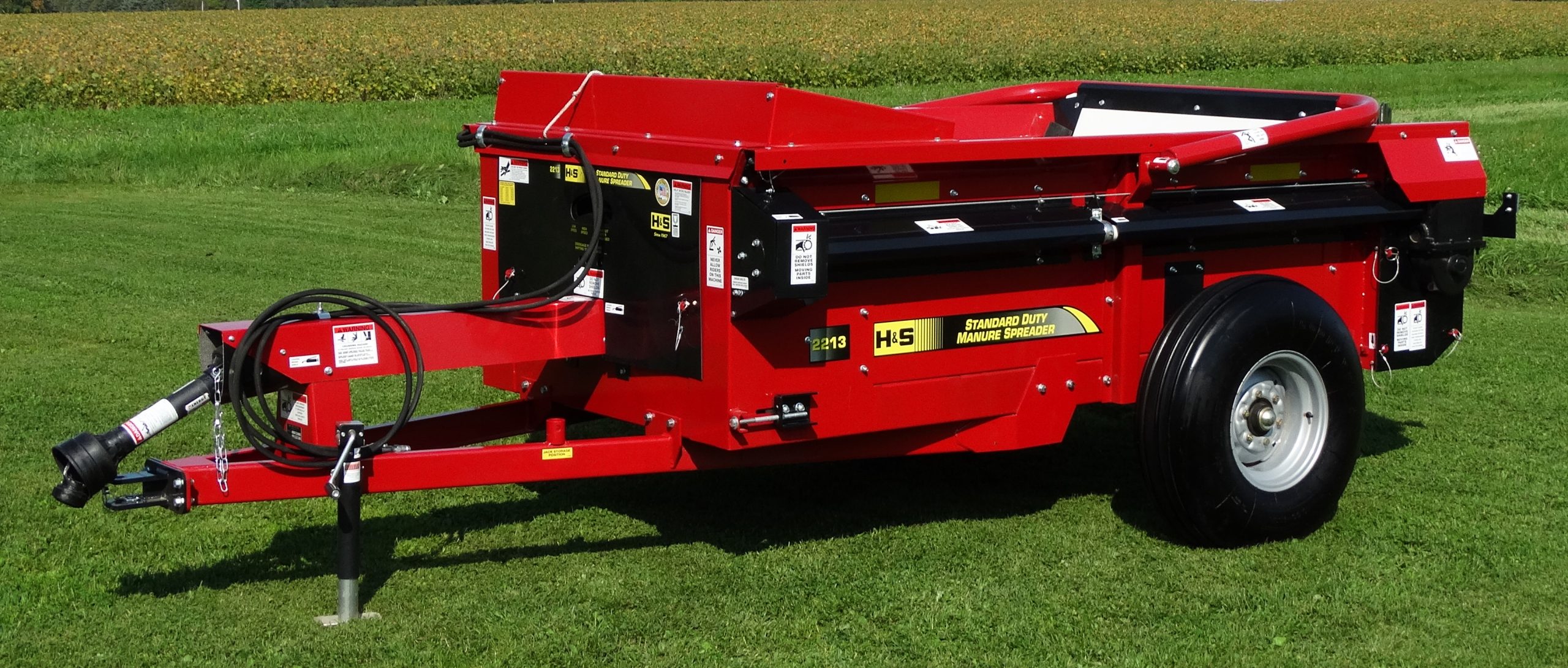

- 130 Bushel
- 68 Capacity Cu. Ft. Struck Level
- 2-Speed Apron Control
- Poly Bonded Floor
- All welded heavy-duty A-frame hitch assembly and full-length unitized main frame.
- The plastic-coated plywood floor allows for considerably less torque to move a heavy load.
- The drive utilizes the patented H&S 2-speed gearbox. Shifting is all done in the enclosed two speed/beater shutoff gearbox.

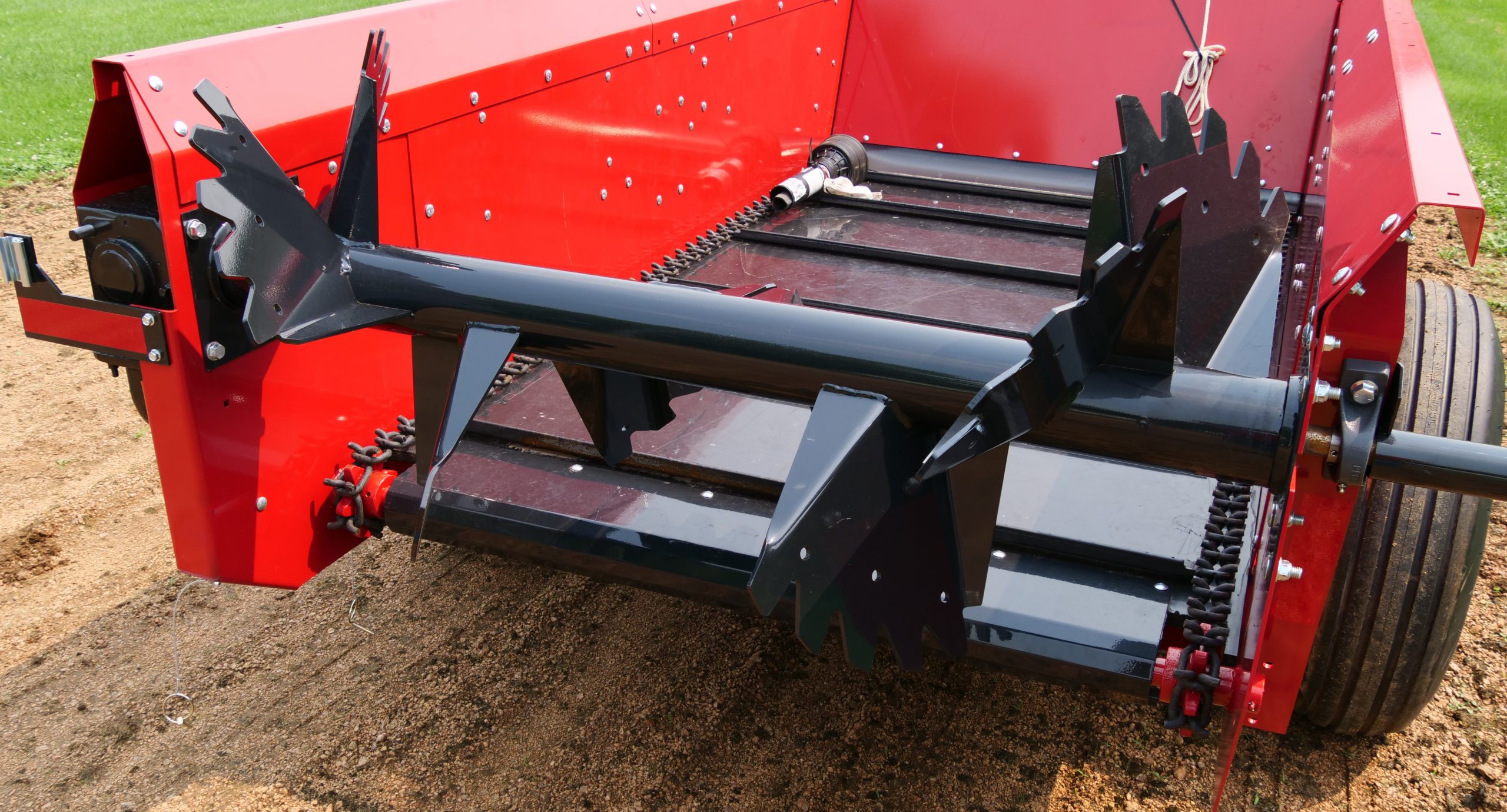

- A heavy-duty beater assembly ensures aggressive shredding action with wide and even spread patterns.
- Spreader box sides are constructed of powder coated steel.
- Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
- Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
- PTO Apron Low Speed/540 RPMs: 4′ 9″ per minute.
- PTO Apron High Speed/540 RPMs: 8′ 9″ per minute
- A front splash guard is standard equipment.
- Greaseable bearings
|Capacity - Old Rating||130 bu||175 bu||80 bu|
|Capacity Cu. Ft. Struck Level||67.61||105||45.11|
|Top of Flare Width||63 ½″ (161 cm)||63 ½″ (161 cm)||48″ (122 cm)|
|Inside Width||54″ (137 cm)||54″ (137 cm)||48″ (122 cm)|
|Inside Length||7′4″ (223 cm)||11′ 1″ (338 cm)||7′4″ (223 cm)|
|Inside Depth||23 3/4″ (65 cm)||25 ¾″ (65 cm)||19 ¾″ (50 cm)|
|Overall Length||14′ 7″ (444 cm)||17′ 8″ (538 cm)||13′ 10″ (422 cm)|
|Overall Loading Height-Top Of Side||47 1/2″ (121 cm)||45 ½″ (116 cm)||35″ (89 cm)|
|Overall Height W/Hyd. Endgate||51″ (130 cm)||49″|
|Overall Width W/Standard Tires||86″ (218 cm)||76″ (193 cm)|
|Standard Tire Size||10R x 22.5||9.00 x 20||6.70 x 15|
|Spindle Size||2″ (5 CM)||2″ (5 CM)||2″ (5 CM)|
|Main Apron Chain||T-Rod||T-Rod||67H|
|Box Construction||Powder Coated Steel||Powder Coated Steel||Powder Coated Steel|
|Floor Construction||Bonded Poly||Bonded Poly||Bonded Poly|
|Apron Drive||Gearbox 2-Speed PTO||Gearbox 2-Speed PTO||Gearbox 2-Speed PTO|
|Diameter Of Beater||27″ (68 cm)||27″ (68 cm)||18 ½″-47 cm|
|Number of Paddles||8||10|
|Swing Away Jack||Standard||Standard||Standard|
|Weight w/Tires||1,600 lbs. (726 kg)||2,030 lbs. (921 kg)||1,140 lbs. (517 kg)|
|Options||FINE SPREAD PAN||FINE SPREAD PAN – HYD. END GATE||FINE SPREAD PAN|
