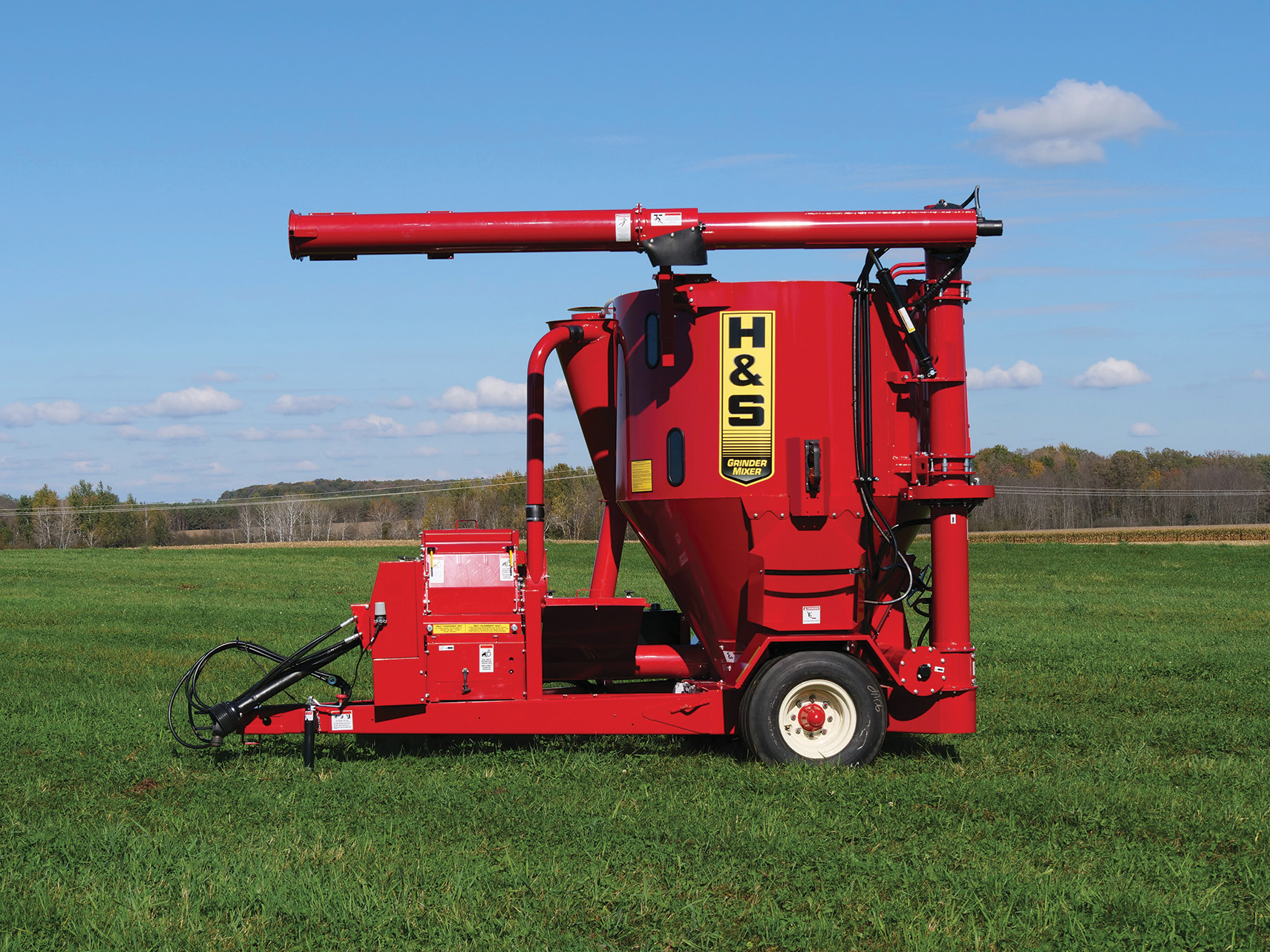

GM9117 - 135-Bushel GrinderMixer

Find a Dealer
  • 167 Cubic Ft. Capacity
  • Self-contained Hydraulic System
  • 21" Mill w/66 Hammers
  • Scale Ready


  • The self-contained hydraulic system includes a pulley-driven pump and a 15-gallon reservoir w/filter system provides circulation to cool the oil. The hydraulic motor provides a flow of 12 GPM.
  • Magnets in either of the machines remove any metal that may accidentally mix with the material entering the mill.
  • The 240-degree swing radius of the unloading auger allows repositioning of the discharge auger from one side of the machine to the other without moving the grinder-mixer.
  • A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
  • An adjustable slip clutch on the auger rotation provides protection if foreign objects are encountered.
  • Mixer drive systems are shear bolt protected.
  • A large discharge door provides high-capacity unloading.
  • Mixer feeding attachments and unloading mechanisms are all driven hydraulically.
  • 5-porthole windows allow the operator to see feed levels.
  • A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
  • Mixers feature a side mounted supplement hopper.
  • Transport lights are standard equipment.


Tank Capacity - Bushel135
Tank Capacity - Cubic Ft.167
Tank Diameter74"
Overall Height10′ 8″
Overall Length15′
Ground Clearance12″
Diameter of Mixing Auger14″ Diameter w/30″ Base
LadderFoldable Rear Mount Non-Slip
Tank Windows5-Port Hole Style
Supplement HopperSide Mounted
FeederStandard Gravity Hopper
Tires12.5L – 15 – 20 Ply
PTO Drive540 RPM Standard | Optional 1000 RPM
H.P. Requirement540 RPM up to 115 HP – 1000 RPM up to 145 HP
Self-ContainedIncludes Pump, 15 Gallon Reservoir w/Filter and Pressure Relief Valve
Pump Pressure3,200 PSI Maximum
Oil Flow12 G.P.M.
Hammermill Width21″
Cylinder Diameter20″
Grinder Drive8 “A” Section Banded V-Belt
Grinder Hammers66-4 Way Reversible Steel Alloy
Cylinder Speed2700 RPM
Throat Magnet2 – 3″ x 17″
Grinder Screen Area600 Square Inches
Unloading Auger Tube Diameter8″
Unloading Auger Length12′
Unloading Auger Rotation240 Degrees
Unloading Auger Reach StandardApprox. 19′ at 53 Degrees
Unloading Auger w/3' ExtensionApprox. 21′ 6″ at 53 Degrees
Unloading Auger w/6' ExtensionApprox. 23′ 10″ at 53 Degrees


  • 1000 RPM PTO in lieu of standard 540 RPM PTO

  • Corn cob-style variable speed swinging intake auger

  • Conventional variable speed swinging intake auger

  • Rear Supplement Hopper

  • Digi-Star 2500 Scale

  • Digi-Star 3410 Scale

  • 3' Folding Extension

  • 6' Folding Extension

  • 30,000# Safety Chain

  • 1/8″, 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1", 1-1/4", 1-1/2", 2" Mill Screens
