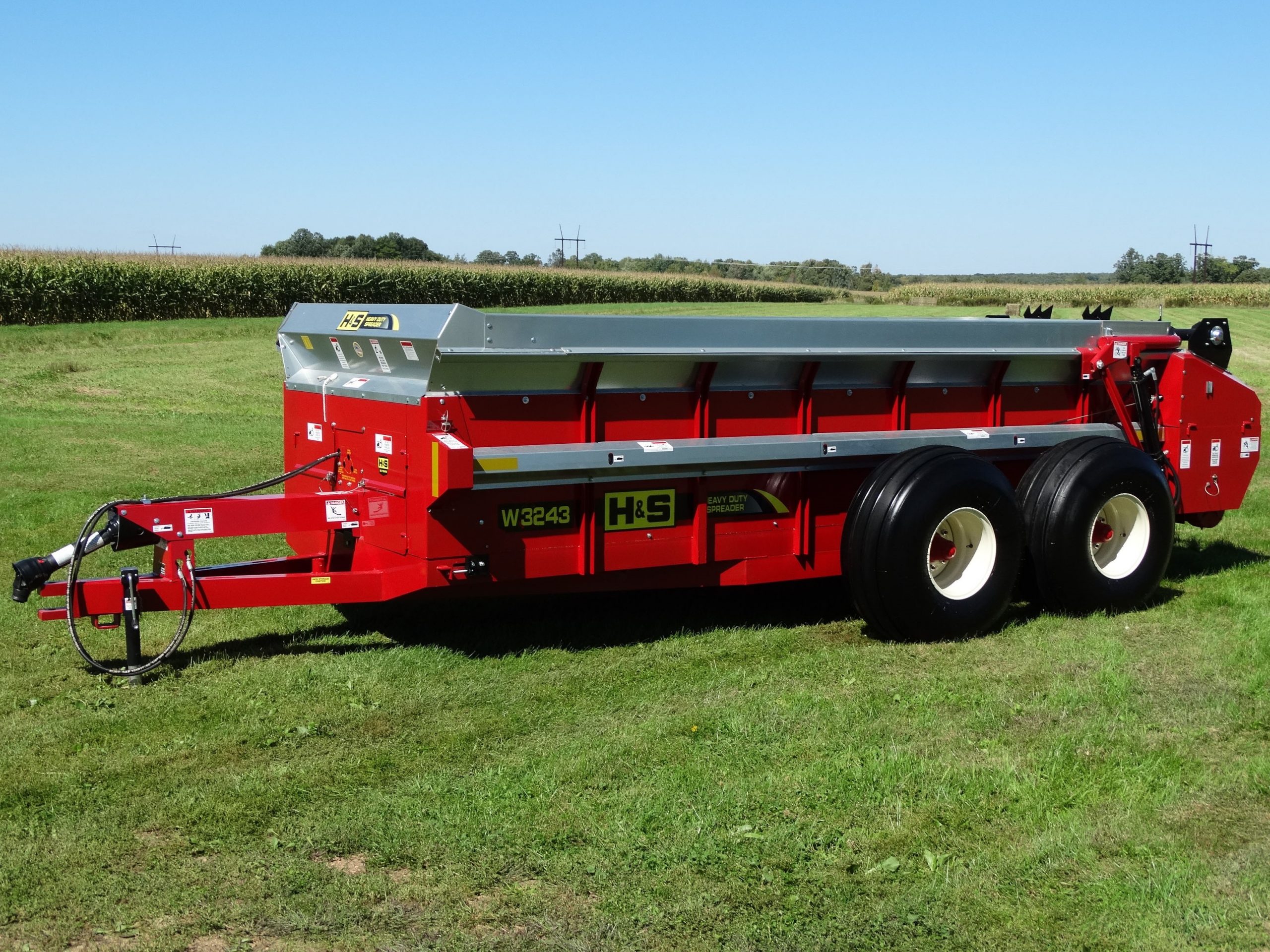

SW3243 430-Bushel Heavy-DutyManure Spreader

Find a Dealer
  • Heavy 5" Channel Iron Frame w/Double Pole Channels
  • Solid Virgin Grade Poly Floor
  • Hydraulic Endgate w/Dual Cylinders
  • Top Beater


  • The heavy-duty series of H&S manure spreaders feature a massive unitized welded frame with heavy floor supports, side stakes, and wrap-around steel front corners.
  • Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5″ U-channel side members. Compares with any on the market.
  • The side flares on all H&S heavy-duty manure spreaders are made of 10-gauge g210 culvert grade galvanized steel.
  • Sides, front panel and both sides of the rear hydraulic endgate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze-up.
  • The solid virgin grade poly floor allows for considerably less torque to move a heavy load.
  • The two-speed apron drive is standard equipment.
  • The 29″ diameter beater has two styles of replaceable beater paddles. Half of the 14-beater paddles are blunt for widespread, and the other half are a sharp ripper-type for cutting and shredding. Beater side wiper blades are also standard equipment.
  • The hydraulic endgate features 2 cylinders with hydraulic lines running through a 3″ x 3″ tube under the floor for protection. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
  • Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
  • Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
  • The beater drive gear box is 1:1.5 bevel gear oil bath equipped with a 4-jaw over running clutch for beater shut-off.
  • The apron drive is a 50:1 bronze worm gear with shear bolt protection.
  • PTO Apron Low-Speed/540 RPMs: 4′ 8.5″ per minute.
  • PTO Apron High-Speed/540 RPMs: 8′ 8.5″ per minute
  • The top beater provides load leveling and spreading of high heaped loads.
  • The SW3243 (western) has additional features to other heavy-duty models such as double main frame channels, additional floor supports, 1045 hardened drive shaft, and #80 drive chain.
  • A front splash guard is standard equipment.
  • Greaseable bearings


Capacity - Old Rating235 bu270 bu310 bu125 bu430 bu
Capacity Cu. Ft. Struck Level143167185235275
Inside Depth28 ⅜″ (72 CM)28 ⅜″ (72 CM)28 ⅜″ (72 CM)28 ⅜″ (72 CM)40 ⅜″ (102 CM)
Top of Flare Width68″ (173 CM)68″ (173 CM)68″ (173 CM)68″ (173 CM)68″ (173 CM)
Inside Width60″ (152 CM)60″ (152 CM)60″ (152 CM)60″ (152 CM)60″ (152 CM)
Inside Length12′ 1″ (3.7 M)14′ 1″ (4.3 M)15′ 7″ (4.8 M)16′ 6″ (5.1 M)16′ 6″ (5.1 M)
Overall Width W/Standard Tires94 ½″ (240 CM)94 ½″ (240 CM)98″ (249 CM)98″ (249 CM)112″ (285 CM)
Overall Length18′ 6″ (5.7 M)20′ 5.5″ (6.3 M)21′ 11.5″ (6.7 M)23′ 2.5″ (7.1 M)23′ 2.5″ (7.1 M)
Overall Loading Height-Top Of Side51.5″ (131 CM)51.5″ (131 CM)51.5″ (131 CM)57.5″ (1.5 M)63″ (160 CM)
Overall Height W/Hyd. Endgate55″ (140 CM)55″ (140 CM)55″ (140 CM)61″ (1.5 M)63.5″ (161 CM)
Diameter Of Beater29″ (74 CM)29″ (74 CM)29″ (74 CM)29″ (74 CM)29″ (74 CM)
Main Apron ChainT-RodT-RodT-RodT-RodT-Rod
Spindle Size2″ (5 CM)2 ½″ (6 CM)2 ¼″ (6 CM)2 ½″ (6 CM)2 ½″ (6 CM)
Standard Tire Size295×22.5 RECAP295×22.5 RECAP295×22.5 RECAP295×22.5 RECAP16.5×16.1
Upper BeaterStandard
Rear Hydraulic EndgateStandardStandardStandardStandardStandard
PTO Speed540540540 Standard 1000 Optional540 Standard 1000 Optional540 Standard 1000 Optional
Drive2 Speed2 Speed2 Speed2 Speed2 Speed
Front Splash PanelStandardStandardStandardStandardStandard
Hyd. Cyl On Hyd. Endgate1-Standard 2nd Optional1-Standard 2nd Optional1-Standard 2nd Optional22


Rear Pan

The rear pan is optional.

Variable speed hydraulic drive

A variable speed hydraulic drive is available in lieu of the 2-speed drive system.

Electric controls for hydraulic drive

Highway Lighting Kit

30,000# safety chain
