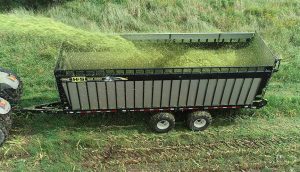

AVAILABLE IN 36′ AND 40′ LENGTHS, the “TOP DOG” Semi-Trailer Forage Box is completely Designed & Manufactured by H&S.
- The main frame is made of high quality formed steel 10″ I-Beams for the rear, and continuing full length to the front.
- New 25,000# spring axles w/heavy duty spindles are standard.
- 16 Gauge Stainless Steel Sides.
- The PL88C OPEN BARREL main apron pintle chain @ 29,900# per strand stays flexible. 2″ x 1″ x 3/16″ formed apron channels are used for the apron cross bars.
- The floor is ½″ thick virgin grade solid poly.
- The “TOP DOG” features 1″ steel lines to the back of the box and DUAL HYDRAULIC MOTORS. The motors evenly drive the dual gear case drive system for more power and less shaft stress than a single motor system.
- The drive shaft features MD nylon reversible style bearings.
- Panels above the front & rear wheels act as a chain slide for the main apron, and protect mud and debris from getting to the apron chain.

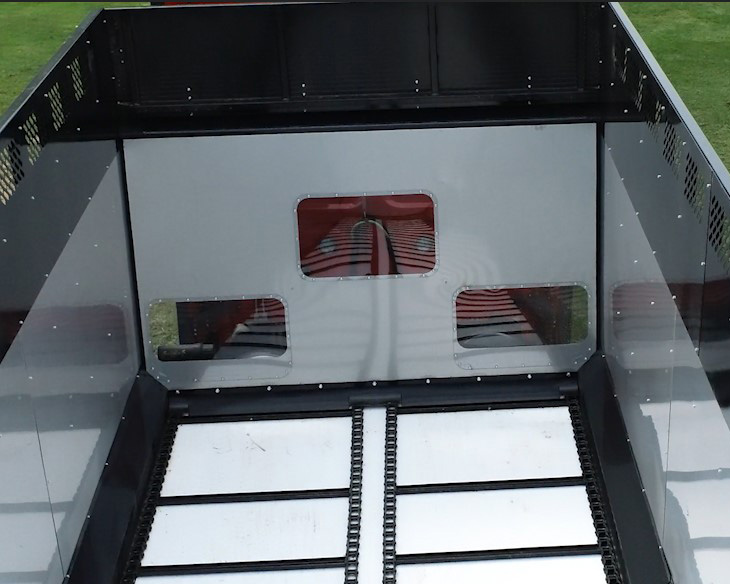

- 3 large front window for viewing when unloading.
- The idler apron shaft assembly features 6 tooth machined steel sprockets with bronze idler bushings.
- Apron tension adjustment is made by tightening the 4 spring loaded tightener bolts on the front of the box. The spring loaded tighteners maintain tension on the apron during start up and operation.
- Choice of a top pivot door with gate delay system and door locks, or barn doors with air closure.
- LED Lighting is standard equipment.
- Customer Farm Name – NO CHARGE!
- Options include a front fold-down actuator, rollback or side-to-side tarp, and a grain hopper.
| 1236 – 36′ | |
|---|---|
| CAPACITY – STRUCK LEVEL | 2045 CU. FT. |
| BOX WEIGHT | 18,240 LBS |
| INSIDE LENGTH | 36′ |
| INSIDE WIDTH | 98″ |
| INSIDE HEIGHT | 86″ |
| OVERALL LENGTH | 37′ 7″ |
| OVERALL WIDTH | 102″ |
| OVERALL HEIGHT INCLUDING TAILGATE | 13′ |
| SIDE HEIGHT | 142.5″ |
| DRIVE SYSTEM | DUAL HYDRAULIC MOTORS |
| FINAL DRIVE SYSTEM | DUAL GEAR CASE DRIVE SYSTEM |
| MAIN APRON CHAIN & SLATS | PL88C OPEN BARREL PINTLE 2″ X 1″ X 3/16″ FORMED APRON CHANNELS |
| REAR DRIVE SHAFT | 2 ¼″ 1045 STEEL |
| FRONT IDLER SHAFT | 1 ¾″ 1045 STEEL |
| UPRIGHTS | 2″ X 2″ X 3/16″ TUBULAR STEEL SET ON 16″ CENTERS |
| UNLOAD TIME | DEPENDENT ON TRACTOR HYDRAULIC SYSTEM & GPMs |
| WALL MATERIAL | STAINLESS STEEL |
| FLOOR MATERIAL | VIRGIN GRADE POLY |
| GATE DELAY SYSTEM | STANDARD |
| REAR DOOR LATCHING | AUTOMATIC |
| FRONT VIEWING WINDOWS | 3 |
| LIGHTS | L.E.D |
| CUSTOMER FARM NAME | STANDARD |
| AXLES/SUSPENSIONS/TIRES/RIMS | |
| AXLES | NEW 25,000# AXLES WITH HEAVY DUTY SPINDLES |
| SUSPENSION SYSTEM: | SPRING |
| TIRES/RIMS OPTIONS: |
|
| CHOICES OR OPTIONS: | |
| TOP PIVOT DOOR W/GATE DELAY SYSTEM | CHOICE |
| BARN DOORS W/AIR CLOSURE SYSTEM | CHOICE |
| FRONT FOLD-DOWN ACTUATOR | OPTIONAL |
| GRAIN KIT – TOP PIVOT DOOR ONLY | OPTIONAL |
| VARIABLE SPEED FLOW CONTROL | OPTIONAL |
| ELECTRIC FRONT TO BACK SCISSOR TARP | OPTIONAL |
| ELECTRIC SIDE TO SIDE ROLL TARP | OPTIONAL |
| 1240 – 40′ | |
|---|---|
| CAPACITY – STRUCK LEVEL | 2275 CU. FT. |
| BOX WEIGHT | 20,270 LBS |
| INSIDE LENGTH | 40′ |
| INSIDE WIDTH | 98″ |
| INSIDE HEIGHT | 86″ |
| OVERALL LENGTH | 41′ 7″ |
| OVERALL WIDTH | 102″ |
| OVERALL HEIGHT INCLUDING TAILGATE | 13′ |
| SIDE HEIGHT | 142.5″ |
| DRIVE SYSTEM | DUAL HYDRAULIC MOTORS |
| FINAL DRIVE SYSTEM | DUAL GEAR CASE DRIVE SYSTEM |
| MAIN APRON CHAIN & SLATS | PL88C OPEN BARREL PINTLE 2″ X 1″ X 3/16″ FORMED APRON CHANNELS |
| REAR DRIVE SHAFT | 2 ¼″ 1045 STEEL |
| FRONT IDLER SHAFT | 1 ¾″ 1045 STEEL |
| UPRIGHTS | 2″ X 2″ X 3/16″ TUBULAR STEEL SET ON 16” CENTERS |
| UNLOAD TIME | DEPENDENT ON TRACTOR HYDRAULIC SYSTEM & GPMs |
| WALL MATERIAL | STAINLESS STEEL |
| FLOOR MATERIAL | VIRGIN GRADE POLY |
| GATE DELAY SYSTEM | STANDARD |
| REAR DOOR LATCHING | AUTOMATIC |
| FRONT VIEWING WINDOWS | 3 |
| LIGHTS | L.E.D |
| CUSTOMER FARM NAME | STANDARD |
| AXLES/SUSPENSIONS/TIRES/RIMS | |
| AXLES | NEW 25,000# AXLES WITH HEAVY DUTY SPINDLES |
| SUSPENSION SYSTEM: | SPRING |
| TIRES/RIMS OPTIONS: |
|
| CHOICES OR OPTIONS: | |
| TOP PIVOT DOOR W/GATE DELAY SYSTEM | CHOICE |
| BARN DOORS W/AIR CLOSURE SYSTEM | CHOICE |
| FRONT FOLD-DOWN ACTUATOR | OPTIONAL |
| GRAIN KIT – TOP PIVOT DOOR ONLY | OPTIONAL |
| VARIABLE SPEED FLOW CONTROL | OPTIONAL |
| ELECTRIC FRONT TO BACK SCISSOR TARP | OPTIONAL |
| ELECTRIC SIDE TO SIDE ROLL TARP | OPTIONAL |
WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
- Front Fold-Down Actuator
- Rollback Tarp
- Side-to Side Tarp
- Grain Hopper
