- 430 Bushel
- 261 Capacity Cu. Ft. Struck Level
- 2-Speed Apron Drive
- 540 Standard PTO Speed

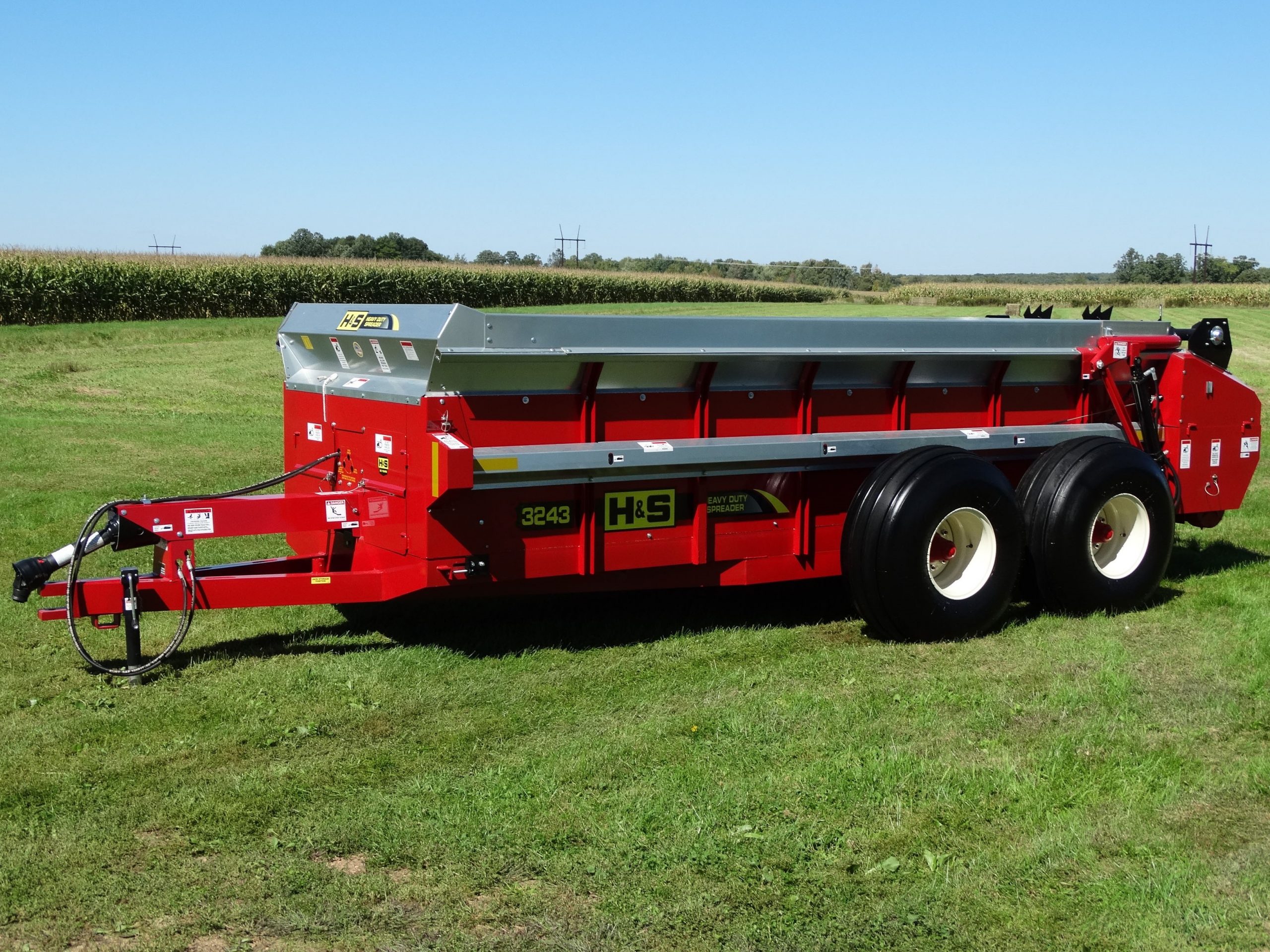

- A massive unitized welded frame with heavy floor supports and side stakes, and wrap-around steel front corners. Strong rear main beater side panels are slanted for clearance and wider spread and then welded to the strong 5″ U-channel side members. Compares with any on the market.
- The side flares on all H&S heavy-duty manure spreaders are made of 10-gauge g210 culvert grade galvanized steel.
- Sides, front panel and both sides of the rear hydraulic endgate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze-up. It also features a solid virgin grade poly floor. Considerably less torque is needed to move a heavy load.
- A front splash guard is standard equipment.
- Greaseable bearings
- The two-speed apron drive is standard equipment. An optional variable speed hydraulic drive is also available. As is an optional electric control for the hydraulic drive.
- A 29″ diameter beater with 14 replaceable beater paddles. The beater has two types of paddles, blunt for widespread and sharp ripper type for cutting and shredding. The beater side wiper blades are also standard equipment.
- The hydraulic endgate features 2 cylinders as standard (optional on the S3231). The hydraulic lines are run through a 3×3 tube under the floor. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
- H&S uses cast special steel alloy apron idler slides instead of idler sprockets, making for years of dependable service.
- Adjustment for the main apron is easy by simply loosening the two side bolts and drawing up the long bolt.
- Gearbox mechanisms and drive for the beater and apron are Timken tapered roller bearing equipped. The beater drive gear box is 1-½″ bevel gear oil bath equipped with a 4-jaw over running clutch for beater shut-off. The apron drive is a 50:1 bronze worm gear with shear bolt protection.
- The strong oil bath bevel gearbox that powers the beater is tapered Timken roller bearing equipped. The gear box utilizes a 4-jaw beater shut off clutch and tractor sized spline shaft.
- Unloading speeds for S3231, S3237, S3243, and SW3243 – (2-speed chain drive)
- High Speed: PTO speed 540 RPMs 8′8.5″ per minute
- Low Speed: PTO speed 540 RPMs 4′8.5″ per minute.
- Standard top beater is available to provide load leveling and spreading of high heaped loads.
|Capacity - Old Rating||235 bu||270 bu||310 bu||125 bu||430 bu||430 bu|
|Capacity Cu. Ft. Struck Level||143||167||185||235||275||275|
|Inside Depth||28 ⅜″ (72 CM)||28 ⅜″ (72 CM)||28 ⅜″ (72 CM)||28 ⅜″ (72 CM)||40 ⅜″ (102 CM)||40 ⅜″ (102 CM)|
|Top of Flare Width||68″ (173 CM)||68″ (173 CM)||68″ (173 CM)||68″ (173 CM)||68″ (173 CM)||68″ (173 CM)|
|Inside Width||60″ (152 CM)||60″ (152 CM)||60″ (152 CM)||60″ (152 CM)||60″ (152 CM)||60″ (152 CM)|
|Inside Length||12′ 1″ (3.7 M)||14′ 1″ (4.3 M)||15′ 7″ (4.8 M)||16′ 6″ (5.1 M)||16′ 6″ (5.1 M)||16′ 6″ (5.1 M)|
|Overall Width W/Standard Tires||94 ½″ (240 CM)||94 ½″ (240 CM)||98″ (249 CM)||98″ (249 CM)||112″ (285 CM)||112″ (285 CM)|
|Overall Length||18′ 6″ (5.7 M)||20′ 5.5″ (6.3 M)||21′ 11.5″ (6.7 M)||23′ 2.5″ (7.1 M)||23′ 2.5″ (7.1 M)||23′ 2.5″ (7.1 M)|
|Overall Loading Height-Top Of Side||51.5″ (131 CM)||51.5″ (131 CM)||51.5″ (131 CM)||57.5″ (1.5 M)||63″ (160 CM)||63″ (160 CM)|
|Overall Height W/Hyd. Endgate||55″ (140 CM)||55″ (140 CM)||55″ (140 CM)||61″ (1.5 M)||63.5″ (161 CM)||63.5″ (161 CM)|
|Diameter Of Beater||29″ (74 CM)||29″ (74 CM)||29″ (74 CM)||29″ (74 CM)||29″ (74 CM)||29″ (74 CM)|
|Main Apron Chain||T-Rod||T-Rod||T-Rod||T-Rod||T-Rod||T-Rod|
|Spindle Size||2″ (5 CM)||2 ½″ (6 CM)||2 ¼″ (6 CM)||2 ½″ (6 CM)||2 ½″ (6 CM)||2 ½″ (6 CM)|
|Standard Tire Size||295×22.5 RECAP||295×22.5 RECAP||295×22.5 RECAP||295×22.5 RECAP||16.5×16.1||16.5×16.1|
|Rear Hydraulic Endgate||Standard||Standard||Standard||Standard||Standard||Standard|
|PTO Speed||540||540||540 Standard 1000 Optional||540 Standard 1000 Optional||540 Standard 1000 Optional||540 Standard 1000 Optional|
|Drive||2 Speed||2 Speed||2 Speed||2 Speed||2 Speed||2 Speed|
|Front Splash Panel||Standard||Standard||Standard||Standard||Standard||Standard|
|Hyd. Cyl On Hyd. Endgate||1-Standard 2nd Optional||1-Standard 2nd Optional||1-Standard 2nd Optional||2||2||2|
|Weight w/Tires||2,890 lbs. (1,311 kg)||3,230 lbs. (1,495 kg)||4,190 lbs. (1,901 KG)||4,920 lbs. (2,232 kg)||430 5,220 lbs. (2,232 KG) W430 5500# (2,495 Kg)|
A variable speed hydraulic drive is also available on the 3231, 3237, 3243, and W3243.

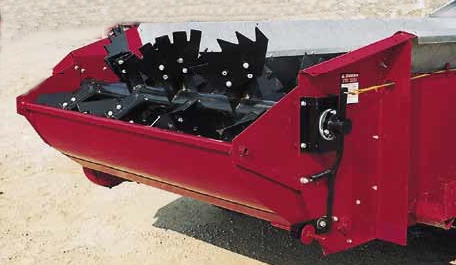

A rear pan is optional on all models.
