8200 Series Wide Body Rear Unload Forage BoxesFORAGE BOXES

Find a Dealer

8200 Series WIDE BODY Boxes are available in 18′, 20′, 22′, 24′, 26′ & 30′ Models

8200 SERIES WIDE BODY FORAGE BOX FEATURES:

  • Available in truck, chassis, or running gear mount.
  • 8′ inside width
  • Painted steel front panel & rear door

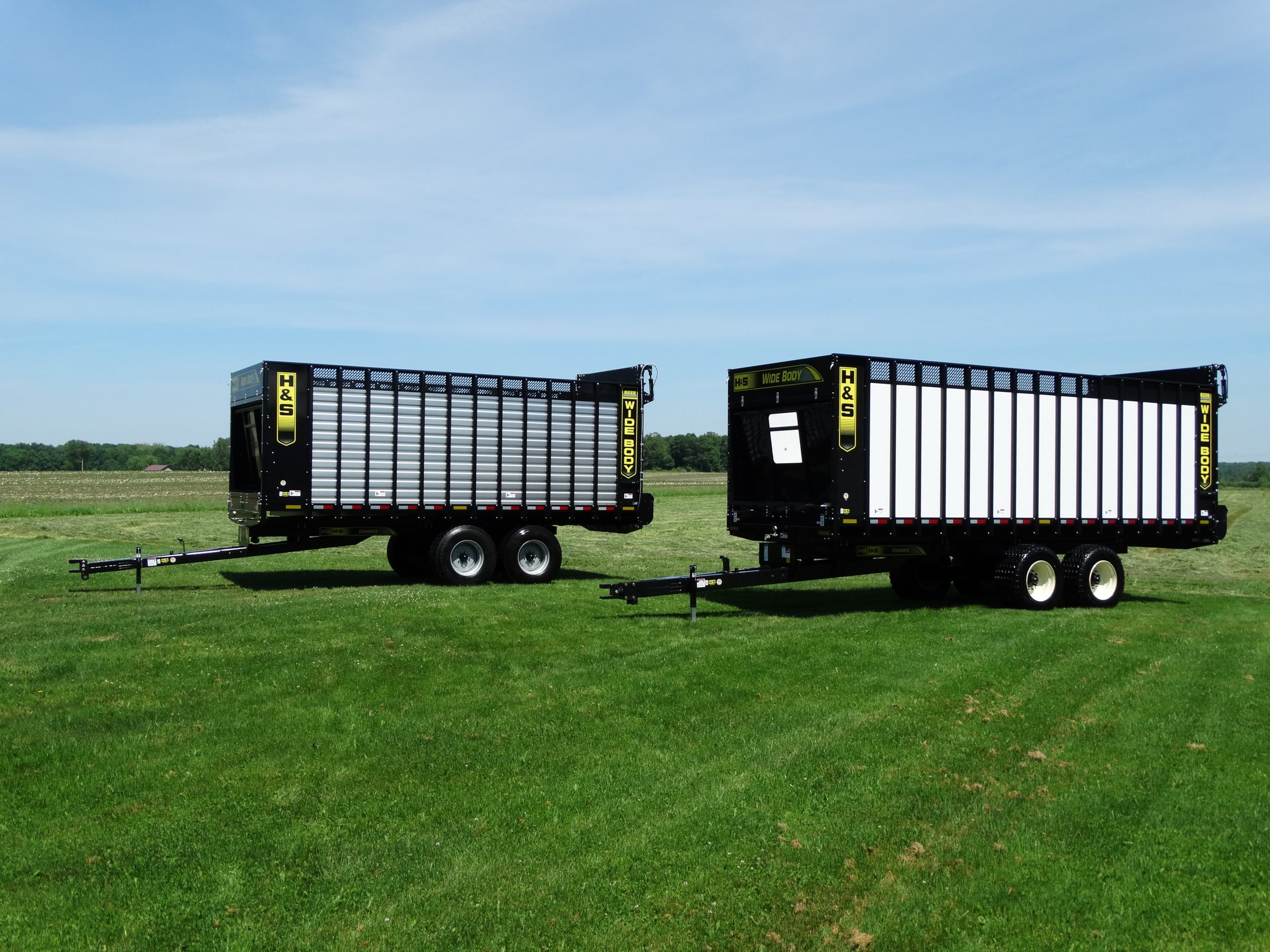

  • Aluminized side forage box models are available in 18′, 20′, and 22′ lengths.
  • Fiberglass Reinforced Plywood Side (FRP) forage box models are available in 22′, 24′, 26′ & 30′ lengths.
  • Mesh screen top sides
  • Bolted front flip down panel (electric actuator control is optional)
  • Side stakes are 2 ½″ x 2 ½″ 10-gauge tubular steel with a 15 ½” spacing between them.
  • The patented hydraulic center mount drive system provides smooth, trouble-free operation.
  • Spring-loaded tighteners on the main apron drive
  • Cross Z-iron is welded to the side channels in-line with the stakes for added strength.
  • The poly floor features four formed steel channel supports that run lengthwise under the floor for added strength.
  • 5″ side channels are welded to the stake pockets for added strength and are also used as a chain return slide.
  • Choice of double barn doors with air closure, or a top hinged door with a hydraulic delay system.
  • LED highway lighting
  • An optional front-to-rear electric roll tarp is a nice feature to keep that valuable forage from blowing out during transport.
  • An optional gravity unload grain hopper for grain is available for 8200 series forage boxes with a top hinged door.
WB8218A – 18′
INSIDE WIDTH 96″
INSIDE HEIGHT
(floor to top of side)
86″
INSIDE LENGTH 18′
OVERALL LENGTH 18′ 9″
OVERALL WIDTH 102″
STANDARD BOX OVERALL HEIGHT 101″
STANDARD BOX CAPACITY STRUCK LEVEL 1,015 CUBIC FT.
WEIGHT – STANDARD BOX 6,710#
BOX MATERIAL ALUMINUM
MAIN APRON CHAIN 667X
MAIN APRON DRIVE HYDRAULIC DRIVE
UNLOAD SPEED UNLOAD TIME IS DEPENDENT ON TRACTOR R.P.M., HYDRAULIC PRESSURE AND G.P.M.
REAR DOOR(S) W/AUTO LOCK/UNLOCK TOP PIVOT DOOR W/DUAL CYLINDER HYDRAULIC GATE DELAY OR BARN DOORS W/AIR CLOSURE
WB8220A – 20′
INSIDE WIDTH 96″
INSIDE HEIGHT
(floor to top of side)
86″
INSIDE LENGTH 20′
OVERALL LENGTH 20′ 9″
OVERALL WIDTH 102″
STANDARD BOX OVERALL HEIGHT 101″
STANDARD BOX CAPACITY STRUCK LEVEL 1,130 CUBIC FT.
WEIGHT – STANDARD BOX 7,235#
BOX MATERIAL ALUMINUM
MAIN APRON CHAIN 667X
MAIN APRON DRIVE HYDRAULIC DRIVE
UNLOAD SPEED UNLOAD TIME IS DEPENDENT ON TRACTOR R.P.M., HYDRAULIC PRESSURE AND G.P.M.
REAR DOOR(S) W/AUTO LOCK/UNLOCK TOP PIVOT DOOR W/DUAL CYLINDER HYDRAULIC GATE DELAY OR BARN DOORS W/AIR CLOSURE
WB8222A & WB8222 – 22′
INSIDE WIDTH 96″
INSIDE HEIGHT
floor to top of side)
86″
INSIDE LENGTH 22′
OVERALL LENGTH 22′ 9″
OVERALL WIDTH 102″
STANDARD BOX OVERALL HEIGHT 101″
STANDARD BOX CAPACITY STRUCK LEVEL 1,244 CUBIC FT.
WEIGHT – STANDARD BOX 7,624# ALUMINUM/7,584# FRP
BOX MATERIAL ALUMINUM/FIBERGLASS REINFORCED PLYWOOD (FRP)
MAIN APRON CHAIN 667XH
MAIN APRON DRIVE HYDRAULIC DRIVE
UNLOAD SPEED UNLOAD TIME IS DEPENDENT ON TRACTOR R.P.M., HYDRAULIC PRESSURE AND G.P.M.
REAR DOOR(S) W/AUTO LOCK/UNLOCK TOP PIVOT DOOR W/DUAL CYLINDER HYDRAULIC GATE DELAY OR BARN DOORS W/AIR CLOSURE
WB8224 – 24′
INSIDE WIDTH 96″
INSIDE HEIGHT
(floor to top of side)
86″
INSIDE LENGTH 24′
OVERALL LENGTH 24′ 9″
OVERALL WIDTH 102″
STANDARD BOX OVERALL HEIGHT 101″
STANDARD BOX CAPACITY STRUCK LEVEL 1,359 CUBIC FT.
WEIGHT – STANDARD BOX 7,873#
BOX MATERIAL FRP
MAIN APRON CHAIN 667XH
MAIN APRON DRIVE HYDRAULIC DRIVE
UNLOAD SPEED UNLOAD TIME IS DEPENDENT ON TRACTOR R.P.M., HYDRAULIC PRESSURE AND G.P.M.
REAR DOOR(S) W/AUTO LOCK/UNLOCK TOP PIVOT DOOR W/DUAL CYLINDER HYDRAULIC GATE DELAY OR BARN DOORS W/AIR CLOSURE
WB8226 – 26′
INSIDE WIDTH 96″
INSIDE HEIGHT
(floor to top of side)
86″
INSIDE LENGTH 26′
OVERALL LENGTH 26′ 9″
OVERALL WIDTH 102″
STANDARD BOX OVERALL HEIGHT 101″
STANDARD BOX CAPACITY STRUCK LEVEL 1,473 CUBIC FT.
WEIGHT – STANDARD BOX 8,448#
BOX MATERIAL FRP
MAIN APRON CHAIN 667XH
MAIN APRON DRIVE HYDRAULIC DRIVE
UNLOAD SPEED UNLOAD TIME IS DEPENDENT ON TRACTOR R.P.M., HYDRAULIC PRESSURE AND G.P.M.
REAR DOOR(S) W/AUTO LOCK/UNLOCK TOP PIVOT DOOR W/DUAL CYLINDER HYDRAULIC GATE DELAY OR BARN DOORS W/AIR CLOSURE
WB8230 – 30′
INSIDE WIDTH 96″
INSIDE HEIGHT
(floor to top of side)
86″
INSIDE LENGTH 30′
OVERALL LENGTH 30′ 9″
OVERALL WIDTH 102″
STANDARD BOX OVERALL HEIGHT 101″
STANDARD BOX CAPACITY STRUCK LEVEL 1,702 CUBIC FT.
WEIGHT – STANDARD BOX 9,405#
BOX MATERIAL FRP
MAIN APRON CHAIN 667XH
MAIN APRON DRIVE HYDRAULIC DRIVE
UNLOAD SPEED UNLOAD TIME IS DEPENDENT ON TRACTOR RPM, HYDRAULIC PRESSURE AND GPM
REAR ENDGATE TOP PIVOT DOOR W/DUAL CYLINDER HYDRAULIC GATE DELAY OR BARN DOORS W/AIR CLOSURE

WARRANTY: SEE OPERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Options

The H&S 8200 series WIDE BODY forage boxes offer a choice of double barn doors with air closure, or a top hinged door with hydraulic gate delay system.

Shown with the optional front-to-rear electric roll tarp.

An optional forage hood is also available.

H&S WIDE BODY shown with barn doors and optional front-to-rear electric roll tarp.

An optional gravity unload grain hopper for grain is available for WIDE BODY boxes with a top hinged gate.

Shown with the optional heavy-duty side-to-side electric roll tar
