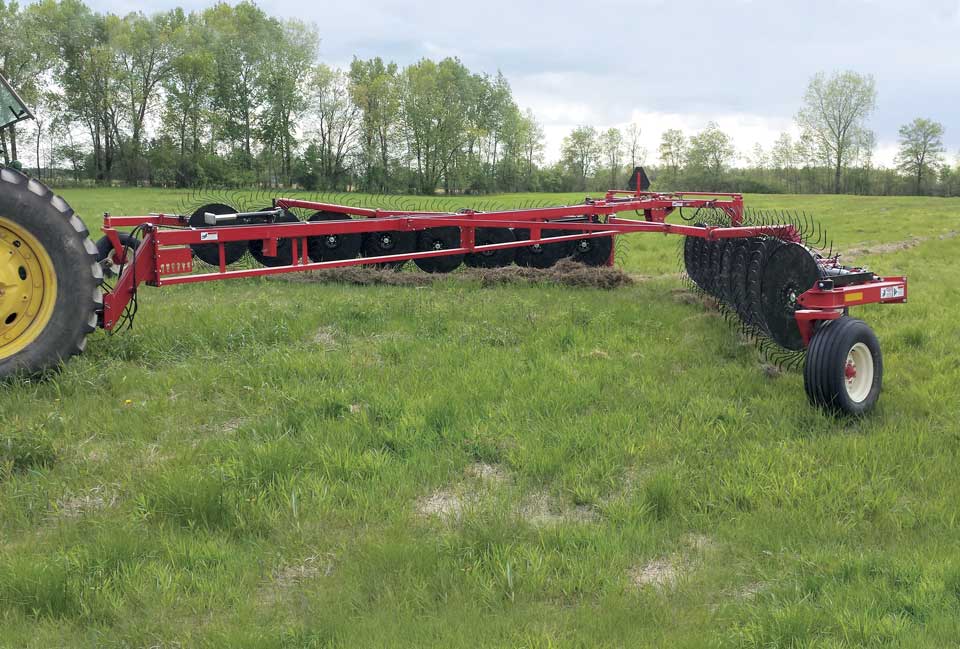

FF6118 18-Wheel Flex-FrameRake

Find a Dealer
  • 60" Diameter 7.5 mm Rake Wheels w/Rake Arm Roller Bearings
  • U-Joint/Ball Joint Flex Design
  • No Hang-Up Points or Restrictions
  • Oscillating Offset Tandems

Features

  • The raking wheels are positioned ahead of the rake arms, main frame beams and transport wheels.
  • With a high and wide end of frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
  • The rake beams and rake arms feature flex-joints for maximum flexibility over the terrain.
  • A brake band on each front gauge wheels can be easily adjusted to field conditions.
  • Large independent 60″ rake wheels with beehive-style spring suspension follow the contours of the ground smoothly.
  • A large diameter rake wheel hub is used for added strength to the rake wheel dish.
  • The adjustment for the ground pressure on the rake wheels allows the operator to fine tune the FLEX-FRAME wheel rakes to fit varying conditions.
  • The rake arms feature 2 ball bearings on each end of the arm for long life, smooth operation, and less wear than rakes with bushings.
  • The 7.5 mm 60″ diameter rake wheels w/wind panels turn slower for less tooth wear and deliver more capacity.
  • Windrow width adjustment is made by a ratchet jack.
  • Raking widths can be hydraulically adjusted in any position up to the pre-determined raking width. Setting the spring-loaded stop allows you to set a pre-determined raking width.
  • Rear limited oscillating offset tandem transport wheels assure a smooth, level ride, even over irrigation tracks.

Specifications

 FF6116FF6118FF6120
 FF6116FF6118FF6120
Number of Wheels161820
Wheel Diameter60″60″60″
Teeth Per Wheel404040
Tooth Diameter7.5 mm7.5 mm7.5 mm
Ground Pressure Rake Wheel AdjustmentNut/Threaded RodNut/Threaded RodNut/Threaded Rod
 FF6116FF6118FF6120
Rake Wheel HubsBall BearingsBall BearingsBall Bearings
Rake Wheel Anti-Wrap ShieldsStandardStandardStandard
Rake Wheel SuspensionIndependent “Bee Hive” SpringIndependent “Bee Hive” SpringIndependent “Bee Hive” Spring
Number of Raking Positions666
Rake Wheel Wind PanelsStandardStandardStandard
JackStandardStandardStandard
Gauge Wheels(4) 9.5L x 15(4) 11L x 15(4) 11L x 15
Rear Transport Wheels4 - 11L X 154 - 11L X 15
 FF6116FF6118FF6120
Transport Width10′ 6″11' 6"11' 6"
Transport Length32′ 7″34' 8"37' 6"
Transport Height in Transport Position80″ w/SMV SignN/AN/A
Maximum Raking Width32′35' 6"38' 6"
Windrow Width Adjustment3′ - 5′3′ - 5′3′ - 5′
 FF6116FF6118FF6120
Weight5,750 lbs.7,894 lbs.8,224 lbs.
 FF6116FF6118FF6120
Hydraulic Requirements1 Double Acting Cylinder For Folding - 1 Double Acting Cylinder for Rake Wheel Lift1 Double Acting Cylinder For Folding - 1 Double Acting Cylinder for Rake Wheel Lift1 Double Acting Cylinder For Folding - 1 Double Acting Cylinder for Rake Wheel Lift

Options

  • Clevis Hitch Extension

  • 2-Wheel Front Add-on Kit

  • Hydraulic Rear Opening Windrow Width Adjustment

  • 3-Wheel Center Kicker Assembly

  • Highway & Work Lighting Kit

  • 10,100# Safety Chain
