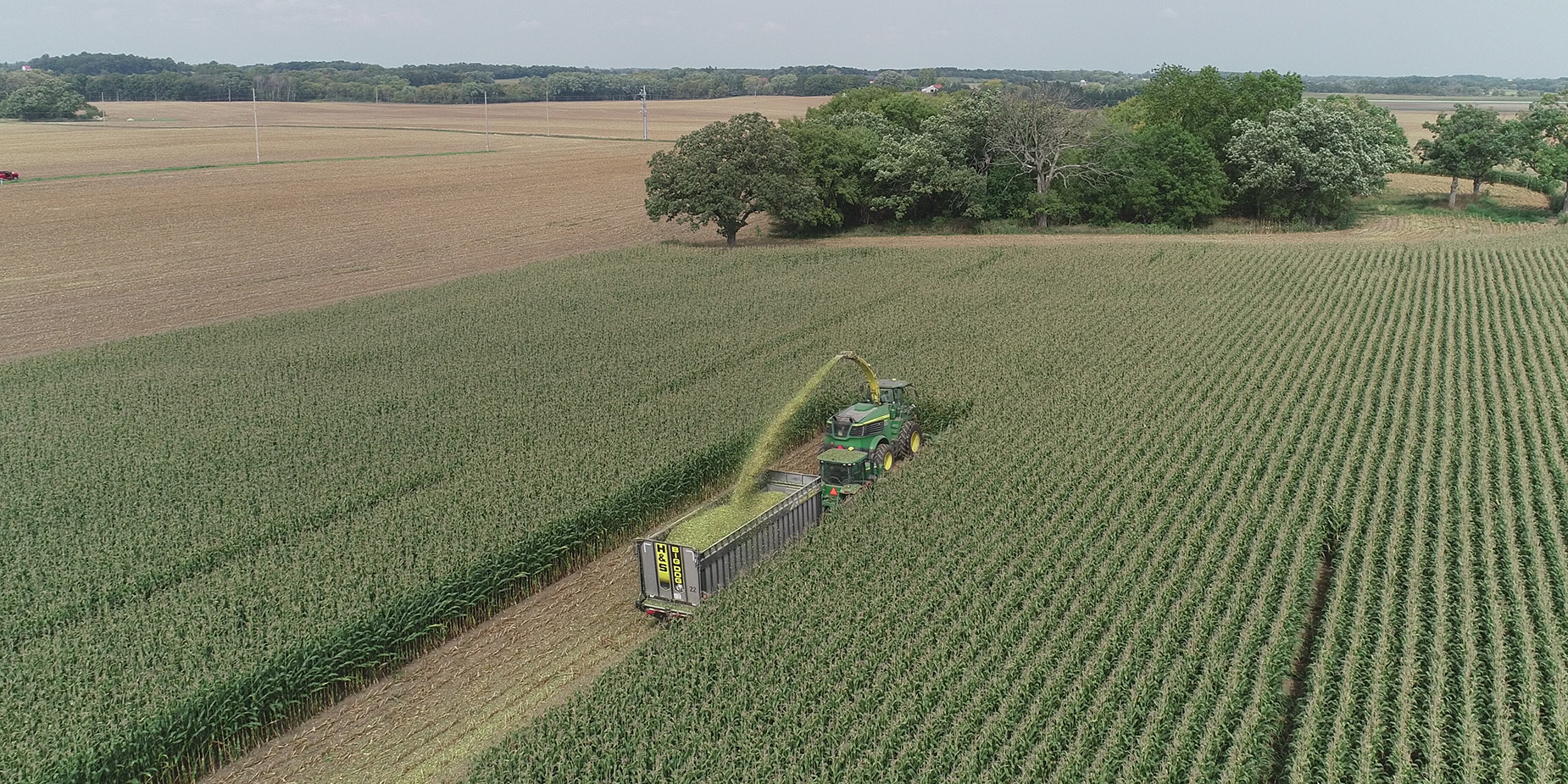

BD1230 - 30' Big Dog Rear UnloadForage Box

Find a Dealer
  • Full Opening Dual Cylinder Gate Delay
  • Heavy-Duty Dual Drive Gearboxes
  • PL88C Open Barrel Main Apron Chain
  • 16-Gauge Stainless Steel Sides


  • Truck mounted box: Choice of top pivot door w/hydraulic gate delay, or barn doors w/air closure.
  • Chassis mount box: Choice of top pivot door w/hydraulic gate delay, or barn doors w/hydraulic closure.
  • PL88C open barrel pintle chain @ 29,900# per strand = 119,600#
  • 2″ x 1″ x 3/16″ formed apron channels for apron cross bars.
  • The BIG DOG features 1″ steel lines to the dual hydraulic motors at the rear of the box
  • The dual hydraulic motors evenly drive the dual gear case drive system for more power and less shaft stress than a single motor system.
  • The drive shaft features MD nylon reversible-style bearings.
  • Panels above the rear wheels act as a chain slide for the main apron and protect mud and debris from getting to the apron chain.
  • 16-gauge stainless steel sides
  • The floor is ½″ thick virgin grade solid poly.
  • Two large front windows for viewing when unloading
  • The idler apron shaft assembly features 6-tooth machined steel sprockets with bronze idler bushings.
  • Adjustable spring-loaded tighteners on the front main apron idler shafts maintain tension on the apron during start-up and operation.
  • Spring-loaded main apron tighteners
  • LED lighting
  • Customer farm name – NO CHARGE!


Capacity Cu. Ft. Struck Level1,4771,752
Box WeightN/AN/A
Inside Length26′30′
Inside Width98″98″
Inside Height86″86″
Overall Length27′ 7″31′ 7″
Overall Width102″102″
Overall Height Including TailgateN/AN/A
Side HeightN/AN/A
Drive SystemDual Hydraulic MotorsDual Hydraulic Motors
Final Drive SystemDual Gear Case Drive SystemDual Gear Case Drive System
Main Apron Chain & SlatsPL88C Open Barrel Pintle 2″ x 1″ x 3/16″ Formed Apron ChannelsPL88C Open Barrel Pintle 2″ x 1″ x 3/16″ Formed Apron Channels
Rear Drive Shaft2¼″ 1045 Steel2¼″ 1045 Steel
Unload TimeDependent on Tractor/Truck Hydraulic System & GPMsDependent on Tractor/Truck Hydraulic System & GPMs
Front Idler Shaft1¾″ 1045 Steel1¾″ 1045 Steel
Uprights2″ x 2″ x 3/16″ Tubular Steel Set on 16″ Centers
Wall MaterialStainless SteelStainless Steel
Floor MaterialVirgin Grade PolyVirgin Grade Poly
Air Gate Delay SystemStandardStandard
Rear Door LatchingAutomaticAutomatic
Front Viewing Windows22
Customer Farm NameStandardStandard
Rear Door(s) w/Auto Lock/UnlockTop Pivot Door w/Dual Cylinder Hydraulic Gate Delay, Barn Doors w/Air Closure (Truck Mount) or Hydraulic Closure (Chassis Mount)Top Pivot Door w/Dual Cylinder Hydraulic Gate Delay, Barn Doors w/Air Closure (Truck Mount) or Hydraulic Closure (Chassis Mount)


  • Electric Actuator Control for Flip Down Front

  • Roof Hood

  • Top Pivot Door Seal Kit

  • Electric Drive Flip Tarp

  • Electric Drive Side-to-Side Tarp

  • Truck Mount Digi-Star Scale System

  • Reverse Apron System

  • Screen Filler Kit for One Side
