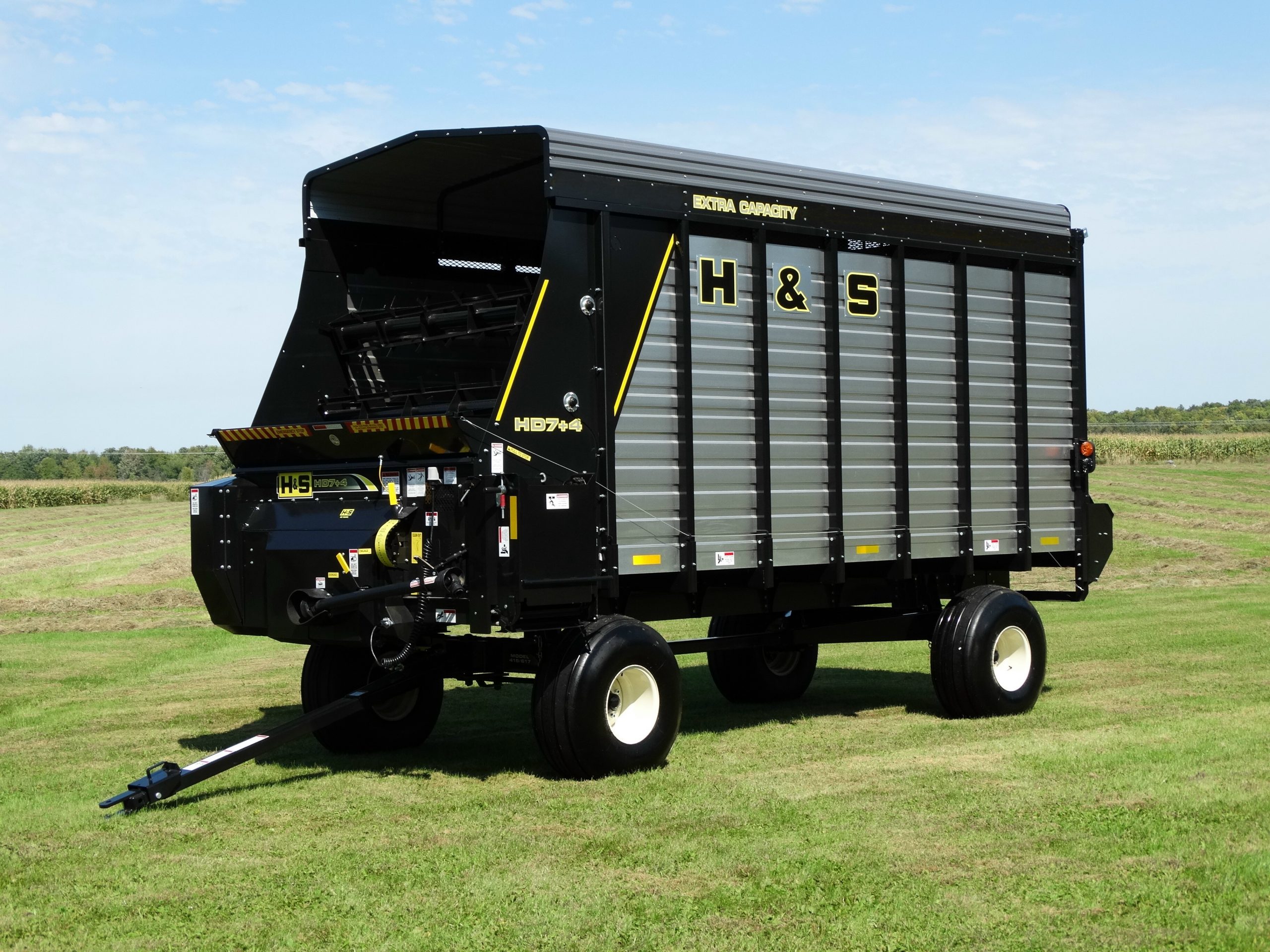

5200 Series Forage Box Information
Features common to all models:
- The 5200 Series Forage Boxes are front unload only.
- Available in either HD 7-4 (cross conveyor), or HD Twin Auger front unload systems.
- PTO front unload drive as standard, and hydraulic drive front unload as optional.
- Faster unload time and the smoothest unloading system on the market
- New swept back unit design
- H&S uses (3) – 18″ 4 Bar Heavy Duty spiral type beaters – not augers. Aggressive in handling tough material, they are even feeding.
- Beater shafts are 1¼″ & equipped with greaseable bearings and are mounted in the head, not auxiliary panels in the box.
- Full length side screen venting
- Easy install 4th beater w/knock-out lugs
- A simple trouble-free variable speed drive lets you match just the right unload speed to the crop type, load condition and blower capacity.
- A separate clutch allows you to start and clear the cross conveyor or augers before you start the beaters or main apron conveyors.
- Heavy 10″ frame stringers
- 5” – 6 Gauge Steel Channel Cross-Frame Members
- 2.5″ x 2.5″ tube uprights
- 2″ Apron Drive Shaft
- 7+4 Models – Standard Spring Assist 24″ Cross Conveyor Extension has the ability to tip DOWNWARD 22 degrees
- Spring loaded tighteners for the beater drive chains
- Remote grease zerks for the beater bearings
- All models feature a Removable Roof/No Roof Option
5217 Twin Auger & 7-4 Specifications
- Inside Width . . . . . . . . . . . . . . . . . . . . . 88.25″
- Inside Height (floor to roof center) . 99″
- Inside Length . . . . . . . . . . . . . . . . . . . . 17′
- Overall Width . . . . . . . . . . . . . . . . . . . . 112″
- Overall Length . . . . . . . . . . . . . . . . . . . 20′ 8″
- Overall Height . . . . . . . . . . . . . . . . . . . 120″
- Cubic Ft. Cap. – No Roof/Struck . . . . . 858.48 cu. ft.
- Apron Chain . . . . . . . . . . . . . . . . . . . . . 667X
- HD 7-4 Cross-Conveyor . . . . . . . . . . . 22″ Wide – CA550 Chain w/Welded Slats
- HD 7-4 Cross-Conveyor Extension . . 24” Spring Assist/Hydraulic Extend/Retract is optional
- Twin Auger Discharge . . . . . . . . . . . . . (2) 10″ High Speed Cross Augers w/Poly-Lined Auger Troughs & 11″ Slide-Out Extension
- Beaters . . . . . . . . . . . . . . . . . . . . . . . . . . 3 – 18″ – 4 Bar Spiral
- Main Apron Speed . . . . . . . . . . . . . . . . Variable Speed Drive — 12 Unload Speeds
- Drive System . . . . . . . . . . . . . . . . . . . . . Bronze Worm Gear Box — #80 Roller Chain
- Main Apron Drive Shaft . . . . . . . . . . . 2″
- Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 540 PTO is Standard/Hydraulic Drive is optional – (1) Remote Needed
- Emergency Stop Clutch . . . . . . . . . . . . Standard
- Main Stringers . . . . . . . . . . . . . . . . . . . 10” – 7 Gauge Channel set on 42” Spacing
- Box Uprights . . . . . . . . . . . . . . . . . . . . . 2.5” x 2.5” Tubular Steel
- Box Sides & Rear . . . . . . . . . . . . . . . . . Aluminized
- Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . Removable Roof is Standard w/No Roof option available
- Highway Lighting & Power Cord . . . . Standard
- Running Gear Hold-Down Kit . . . . . . Standard
5219 Twin Auger & 7-4 Specifications
- Inside Width . . . . . . . . . . . . . . . . . . . . . 88.25″
- Inside Height (floor to roof center) . 99″
- Inside Length . . . . . . . . . . . . . . . . . . . . 19′
- Overall Width . . . . . . . . . . . . . . . . . . . . 112″
- Overall Length . . . . . . . . . . . . . . . . . . . 22′ 8″
- Overall Height . . . . . . . . . . . . . . . . . . . 120″
- Cubic Ft. Cap. – No Roof/Struck . . . . . 963.23 cu. ft.
- Apron Chain . . . . . . . . . . . . . . . . . . . . . 667X
- HD 7-4 Cross-Conveyor . . . . . . . . . . . 22″ Wide – CA550 Chain w/Welded Slats
- HD 7-4 Cross-Conveyor Extension . . 24” Spring Assist/Hydraulic Extend/Retract is optional
- Twin Auger Discharge . . . . . . . . . . . . . (2) 10″ High Speed Cross Augers w/Poly-Lined Auger Troughs & 11″ Slide-Out Extension
- Beaters . . . . . . . . . . . . . . . . . . . . . . . . . . 3 – 18″ – 4 Bar Spiral
- Main Apron Speed . . . . . . . . . . . . . . . . Variable Speed Drive — 12 Unload Speeds
- Drive System . . . . . . . . . . . . . . . . . . . . . Bronze Worm Gear Box — #80 Roller Chain
- Main Apron Drive Shaft . . . . . . . . . . . 2″
- Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 540 PTO is Standard/Hydraulic Drive is optional – (1) Remote Needed
- Emergency Stop Clutch . . . . . . . . . . . . Standard
- Main Stringers . . . . . . . . . . . . . . . . . . . 10” – 7 Gauge Channel set on 42” Spacing
- Box Uprights . . . . . . . . . . . . . . . . . . . . . 2.5” x 2.5” Tubular Steel
- Box Sides & Rear . . . . . . . . . . . . . . . . . Aluminized
- Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . Removable Roof is Standard w/No Roof option available
- Highway Lighting & Power Cord . . . . Standard
- Running Gear Hold-Down Kit . . . . . . Standard
5221 Twin Auger & 7-4 Specifications
- Inside Width . . . . . . . . . . . . . . . . . . . . . 88.25″
- Inside Height (floor to roof center) . 99″
- Inside Length . . . . . . . . . . . . . . . . . . . . 21′
- Overall Width . . . . . . . . . . . . . . . . . . . . 112″
- Overall Length . . . . . . . . . . . . . . . . . . . 24′ 8″
- Overall Height . . . . . . . . . . . . . . . . . . . 120″
- Cubic Ft. Cap. – No Roof/Struck . . . . . 1,067.98 cu. ft.
- Apron Chain . . . . . . . . . . . . . . . . . . . . . 667X
- HD 7-4 Cross-Conveyor . . . . . . . . . . . 22″ Wide – CA550 Chain w/Welded Slats
- HD 7-4 Cross-Conveyor Extension . . 24” Spring Assist/Hydraulic Extend/Retract is optional
- Twin Auger Discharge . . . . . . . . . . . . . (2) 10″ High Speed Cross Augers w/Poly-Lined Auger Troughs & 11″ Slide-Out Extension
- Beaters . . . . . . . . . . . . . . . . . . . . . . . . . . 3 – 18″ – 4 Bar Spiral
- Main Apron Speed . . . . . . . . . . . . . . . . Variable Speed Drive — 12 Unload Speeds
- Drive System . . . . . . . . . . . . . . . . . . . . . Bronze Worm Gear Box — #80 Roller Chain
- Main Apron Drive Shaft . . . . . . . . . . . 2″
- Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 540 PTO is Standard/Hydraulic Drive is optional – (1) Remote Needed
- Emergency Stop Clutch . . . . . . . . . . . . Standard
- Main Stringers . . . . . . . . . . . . . . . . . . . 10” – 7 Gauge Channel set on 42” Spacing
- Box Uprights . . . . . . . . . . . . . . . . . . . . . 2.5” x 2.5” Tubular Steel
- Box Sides & Rear . . . . . . . . . . . . . . . . . Aluminized
- Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . Removable Roof is Standard w/No Roof option available
- Highway Lighting & Power Cord . . . . Standard
- Running Gear Hold-Down Kit . . . . . . Standard
