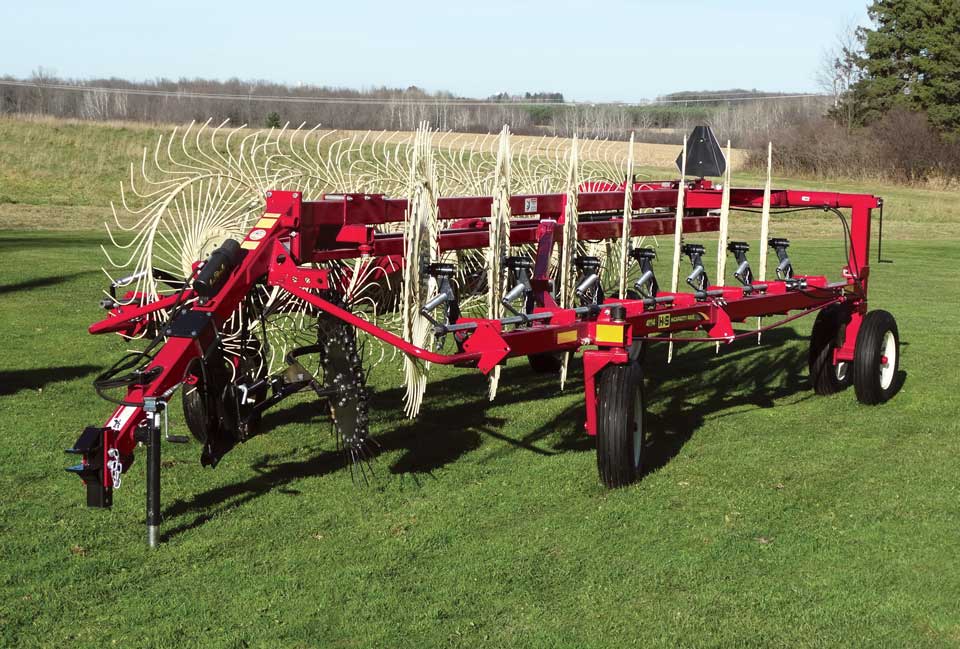

- Raking wheels positioned ahead of the rake arms, main frame beams and transport wheels.
- Coupled with a high and wide end of frame there are no hang-up points or restrictions when raking the heaviest of hay crops. Windrow width adjustment is done with a hand crank.
- Rake opens and closes hydraulically, rake wheels are lowered and raised hydraulically, and the rake wheels float independently.
- The rake arms on the 14 and 16 wheel hi-capacity rakes feature 2 roller bearings on each end of the arm for long life, smooth operation and less wear than rakes with bushings.
- Hi-Capacity rakes fold up to 8′ 6″ or less with the touch of a lever for road transport or to go through gates.
- Limited oscillating offset tandem transport wheels assure a smooth, level ride, even over irrigation tracks. Standard on the 14 & 16 wheel models and optional on the 12 wheel model.
- An adjustment for the ground pressure on the rake wheels allows the operator to fine tune the 12, 14 and 16 wheel Hi-Capacity rakes to fit varying conditions.
- An adjustable brake band on top of the front spindle keeps the front gauge wheels from spinning in rough conditions.
OPTIONS
- 2 wheel center kicker assemblies.
- Rake wheel wind boards.
- Transport lighting.
- Safety chain.
- Limited oscillating offset tandem transport wheels for the 12 wheel model.
- Set of 15″ front gauge wheels for the 14 and 16 wheel models to help improve float over irrigation tracks.
- Wrap-around front rake beam with 15″ gauge wheels.
| 4112 | |
|---|---|
| NUMBER OF WHEELS | 12 |
| WHEEL DIAMETER | 55″ |
| TEETH PER WHEEL | 40 |
| TOOTH DIAMETER | 7mm |
| TRANSPORT WIDTH | 8′ 6″ |
| TRANSPORT LENGTH | 24′ 6″ |
| WINDROW WIDTH ADJUSTMENT | 38″- 58″ |
| RAKING WIDTH | UP TO 24′ HYD. SET. |
| RAKING WHEEL HUBS | TAPERED BEARINGS |
| WING FLEX | 3′ UP OR DOWN |
| NUMBER OF TRANSPORT WHEELS | 4 |
| HITCH JACK | STANDARD |
| CENTER KICKER WHEELS | OPTIONAL |
| GAUGE WHEELS | 15″ |
| TRANSPORT WHEELS | 15″ |
| WEIGHT | 3500 LBS. |
| 4114 | |
|---|---|
| NUMBER OF WHEELS | 14 |
| WHEEL DIAMETER | 55″ |
| TEETH PER WHEEL | 40 |
| TOOTH DIAMETER | 7mm |
| TRANSPORT WIDTH | 8′ 6″ |
| TRANSPORT LENGTH | 27′ 3″ |
| WINDROW WIDTH ADJUSTMENT | 38″- 58″ |
| RAKING WIDTH | UP TO 28′ HYD. SET. |
| RAKING WHEEL HUBS | BALL BEARINGS |
| WING FLEX | 3′ UP OR DOWN |
| NUMBER OF TRANSPORT WHEELS | 6 |
| HITCH JACK | STANDARD |
| CENTER KICKER WHEELS | OPTIONAL |
| GAUGE WHEELS | 15″ |
| TRANSPORT WHEELS | 15″ |
| WEIGHT | 3800 LBS. |
| 4116 | |
|---|---|
| NUMBER OF WHEELS | 16 |
| WHEEL DIAMETER | 55″ |
| TEETH PER WHEEL | 40 |
| TOOTH DIAMETER | 7mm |
| TRANSPORT WIDTH | 8′ 6″ |
| TRANSPORT LENGTH | 30′ 3″ |
| WINDROW WIDTH ADJUSTMENT | 38″- 58″ |
| RAKING WIDTH | UP TO 32′ HYD. SET. |
| RAKING WHEEL HUBS | BALL BEARINGS |
| WING FLEX | 3′ UP OR DOWN |
| NUMBER OF TRANSPORT WHEELS | 6 |
| HITCH JACK | STANDARD |
| CENTER KICKER WHEELS | OPTIONAL |
| GAUGE WHEELS | 15″ |
| TRANSPORT WHEELS | 15″ |
| WEIGHT | 4200 LBS. |
An optional set of 15″ front gauge wheels for the 14 and 16 wheel models help improve float over irrigation tracks or rough ground.
2 wheel kicker assembly available.
Rake wheel wind boards are also available.
