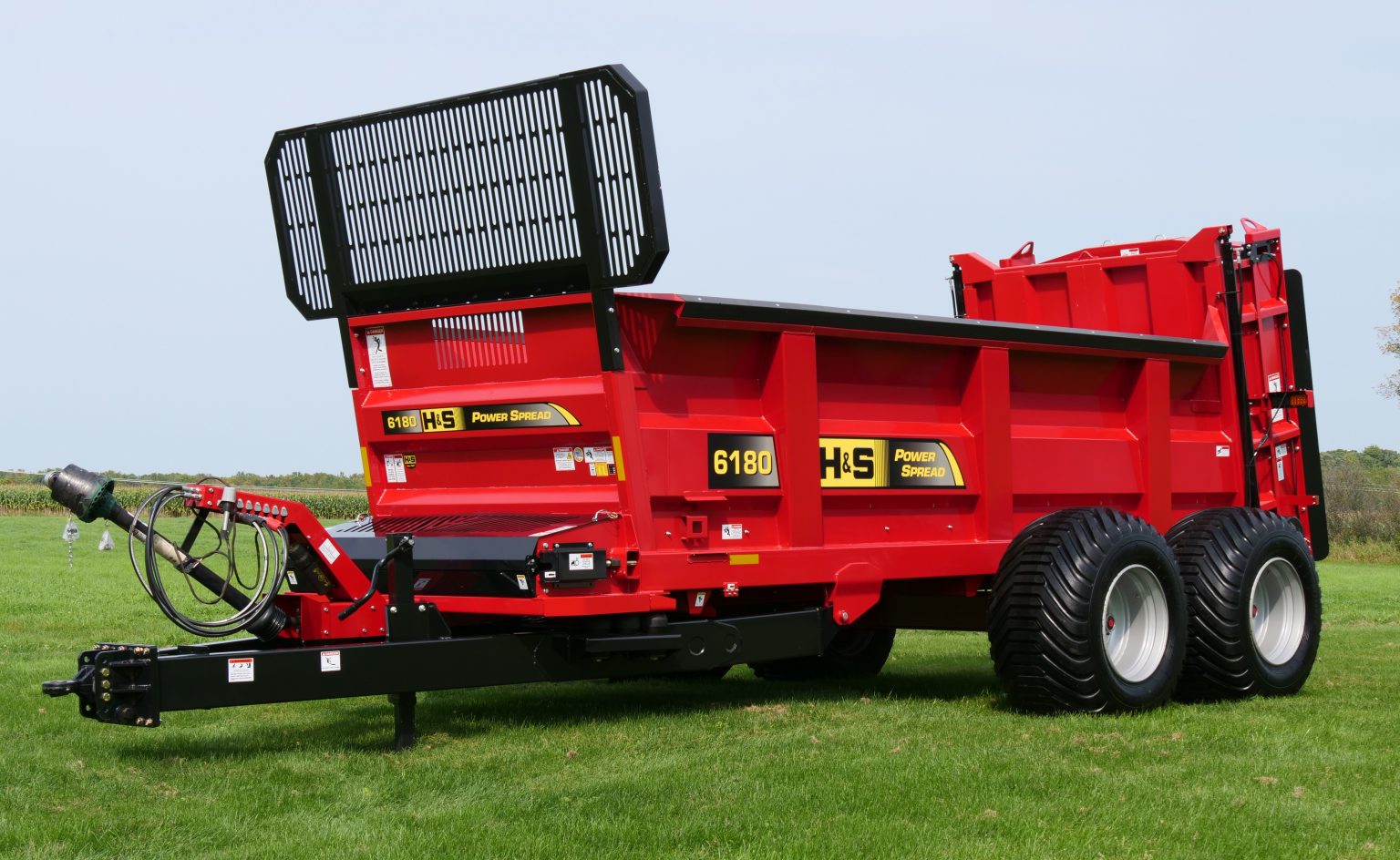

PS6180 793 Cu Ft PowerSpreadManure Spreader

Find a Dealer
  • 400 HP Rated Monobloc Beater Gearbox
  • Heavy-Duty Dual Apron Drive Gearboxes
  • 3/4" Marine Grade Main Apron Log Chain
  • 3/4" Beater Flighting w/Replaceable Beater Paddles

Features

  • 793 cu ft heaped capacity per ASAE S324.2
  • A constant velocity tractor PTO and a center drive shaft with a torque limiting clutch provides power and protection to the bottom driven monobloc gearbox.
  • Bottom drive monobloc gearbox with 3-1/8″ output shafts vs. 2-1/2″ on the competition
  • Dual hydraulic cylinder guillotine/metering style endgate
  • 3/4″ thick vertical beaters w/ replaceable beater blades vs. 1/2″ on some competitors.
  • Vertical beaters feature reverse flighting on the top 20+″ of the beater flighting. This patented feature allows for an even spread pattern of material.
  • The hydraulically driven apron features heavy-duty dual drive apron gearboxes.
  • 3/4″ marine grade 80 log chain vs. competitor’s 5/8″
  • Heavy 2″ x 4″ x 1/4″ tubular apron slats
  • Single-bolt, easy-adjust main apron chain
  • Rubber tongue suspension is standard equipment, not an option like some of the competition.
  • Heavy-duty rectangular tubing is used for the pole to ensure strength and long life.
  • Removal of the beater assembly is done by simply removing the mounting bolts and disconnecting the PTO gearbox driveshaft.
  • Poly side load bump rails
  • LED lighting

Specifications

 PS6138PS6180
 PS6138PS6180
Capacity - Cu. Ft Struck Level Per ASAE S324.2237578
Capacity - Heaped Bushel Per S324.1N/A764
Capacity – Heaped Bushel Per S324.2300638
Capacity Cu. Ft Heaped Per ASAE S324.2373.34793
 PS6138PS6180
Side Loading Height67″ / 5′ 7″94.75″ / 8′ 10.75″
Vertical Beater Height98.38″ / 8′ 2.38″132″ / 11′
Height - Top of Hyd. Endgate98″ / 8′ 2″127″ / 10′ 7″
Height - Top of Screen132″ / 11′
 PS6138PS6180
Inside Width73″ / 6′ 1″78.75″ / 6′ 6.75″
Inside Length177″ / 14′ 9″235.50″ / 19′ 7.50″
Inside Depth30″ / 2′ 6″52.50″ / 4′ 4.50″
Overall Width W/Tires121″ / 10′ 1″169″ / 14′ 1″
Overall Length297″ / 24′ 9″393″ / 27′ 5″
 PS6138PS6180
Standard Number of Beaters22
Vertical Beater Diameter34″ / 2′ 10″39″
Replaceable Beater PaddlesYesYes
Removeable Beater AssemblyYesYes
Apron Chain Size5/8″ Grade 803/4″ Grade 80
Hub8,000 LB.10 Bolt – 25,000 Rating
Spindle Size3″4.5″
Hydraulic EndgateGuillotine/Metering StyleGuillotine/Metering Style
Hitch ChoicesWelded Clevis or Category 3 BullnoseSwivel Clevis or Category 4 or 5 Bullnose
Poly Bump RailsStandardStandard
PTO ChoicesChoice of 1-3/8″ or 1-3/4″ 1,000 RPM Constant VelocityChoice of 1-3/8″ or 1-3/4″ 1,000 RPM Constant Velocity
Cylinders on Endgate22
 PS6138PS6180
Spread Pattern - Approximate25’ – 30’ dependent on the weight of material25’ – 30’ dependent on the weight of material
 PS6138PS6180
Hitch Empty Weight - Approximate570 lbs.
 PS6138PS6180
Hydraulic Requirements3,000 p.s.i. & 30 g.p.m.
 PS6138PS6180
JackCrankChoice of Crank or Hydraulic
 PS6138PS6180
Weight w/TiresApproximately 9,410 lbs.Approximately 21,000 lbs.

Options

Hydraulic Actuator Light Covers

Light covers close when the guillotine/metering-style endgate is raised for spreading. Keeps lights clean for road travel.

Electric Adjust Hydraulic Variable Speed Control

An optional speed control for the apron is available if the tractor is not equipped with a variable speed hydraulic flow control.

Reverser Valve Package

This option allows you to reverse the load away from the beater assembly if a foreign object should come in contact with the beaters.

4-wheel electric-over-hydraulic 15" brakes

5-Point Scale

Safety Chain - 60,000 Lb.

Digi-Star GT400 Monitor

Digi-Star NT560 Monitor with GPS

Digi-Star NT560 Monitor with GPS and Autolog/Automatic Start/Stop Function
