Features
The H&S GM9117 & RM7117 both offer the convenience, dependability and smoothness of hydraulically operated feed making on your farm. Features of the GM9117 & RM7117 include:- The self-contained hydraulic system includes a pulley-driven pump and a 15 gallon reservoir w/filter system provides circulation to cool the oil. The hydraulic motor provides a flow of 12 GPM.
- Magnets in either of the machines remove any metal that may accidentally mix with the material entering the mill.
- The 240 degree swing radius of the unloading auger allows repositioning of the discharge auger from one side of the machine to the other without moving the grinder-mixer.
- A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
- An adjustable slip clutch on the auger rotation provides protection if foreign objects are encountered.
- Mixer drive systems are shear bolt protected
- A large discharge door provides high-capacity unloading.
- Mixer feeding attachments and unloading mechanisms are all driven hydraulically.
- 5-porthole windows allow the operator to see feed levels.
- A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
- Mixers feature a side mounted supplement hopper.
- Transport lights are standard equipment.
Specifications
| GM9117 GRINDER MIXER | |
|---|---|
| TANK CAPACITY-BUSHEL | 135 |
| TANK CAPACITY-CUBIC FT. | 167 |
| TANK DIAMETER | 74″ |
| DIAMETER OF MIXING AUGER | 14″ Diameter w/30″ Base |
| LADDER | Foldable Rear Mount Non-Slip |
| TANK WINDOWS | 5-Port Hole Style |
| OVERALL HEIGHT | 10′ 8″ |
| OVERALL WIDTH | N/A |
| OVERALL LENGTH | 15′ |
| GROUND CLEARANCE | 12″ |
| SUPPLEMENT HOPPER | Side Mounted | Optional Rear Hopper |
| FEEDER | Standard Gravity Hopper | Optional Swinging Intake Augers |
| PTO DRIVE | 540 RPM Standard | Optional 1000 RPM |
| H.P. REQUIREMENT | 540 RPM up to 115 HP - 1000 RPM up to 145 HP |
| TIRES | 320/75 R15 radial tire |
| JACK | Standard |
| WEIGHT | N/A |
| DRIVE SYSTEM | |
| SELF-CONTAINED | Includes Pump, 15 Gallon Reservoir w/Filter and Pressure Relief Valve |
| PUMP PRESSURE | 3,200 PSI Maximum |
| OIL FLOW | 12 G.P.M. |
| HAMMERMILL SPECIFICATIONS | |
| HAMMERMILL WIDTH | 21″ |
| CYLINDER DIAMETER | 20″ |
| GRINDER DRIVE | 8 “A” Section Banded V-Belt |
| GRINDER HAMMERS | 66-4 Way Reversible Steel Alloy |
| CYLINDER SPEED | 2700 RPM |
| THROAT MAGNET | 2 - 3″ x17″ |
| GRINDER SCREEN AREA | 600 Square Inches |
| DISCHARGE AUGER SYSTEM | |
| UNLOADING AUGER TUBE DIAMETER | 8″ |
| UNLOADING AUGER LENGTH | 12′ |
| UNLOADING AUGER ROTATION | 240 Degrees |
| UNLOADING AUGER REACH STANDARD | Approx. 19′ at 53 Degrees |
| UNLOADING AUGER W/3′ EXTENSION | Approx. 21′ 6″ at 53 Degrees |
| UNLOADING AUGER W/6′ EXTENSION | Approx. 23′ 10″ at 53 Degrees |
|
RM7117 ROLLER MIXER |
|
| TANK CAPACITY-BUSHEL | 135 |
| TANK CAPACITY-CUBIC FT. | 167 |
| TANK DIAMETER | 74″ |
| DIAMETER OF MIXING AUGER | 14″ Diameter w/30″ Base |
| LADDER | Foldable Rear Mount Non-Slip |
| TANK WINDOWS | 5-Port Hole Style |
| OVERALL HEIGHT | 10′ 8″ |
| OVERALL WIDTH | N/A |
| OVERALL LENGTH | 15′ |
| GROUND CLEARANCE | 12″ |
| SUPPLEMENT HOPPER | Side Mounted | Optional Rear Hopper |
| FEEDER | Standard Gravity Hopper | Optional Swinging Intake Augers |
| PTO DRIVE | 540 RPM |
| H.P. REQUIREMENT | 540 RPM up to 125 HP |
| TIRES | 320/75 R15 radial tire |
| JACK | Standard |
| WEIGHT | N/A |
| DRIVE SYSTEM | |
| SELF-CONTAINED | Includes Pump, 15 Gallon Reservoir w/Filter and Pressure Relief Valve |
| PUMP PRESSURE | 3,200 PSI Maximum |
| OIL FLOW | 12 G.P.M. |
| DISCHARGE AUGER SYSTEM | |
| UNLOADING AUGER TUBE DIAMETER | 8″ |
| UNLOADING AUGER LENGTH | 12′ |
| UNLOADING AUGER ROTATION | 240 Degrees |
| UNLOADING AUGER REACH STANDARD | Approx. 19′ at 53 Degrees |
| UNLOADING AUGER W/3′ EXTENSION | Approx. 21′ 6″ at 53 Degrees |
| UNLOADING AUGER W/6′ EXTENSION | Approx. 23′ 10″ at 53 Degrees |
| ROLLER MILL SPECIFICATIONS | |
| Rolls | 2 - 18" Wide x 16 Diameter Chill Cast Rolls |
| Roll Drive | 540 RPM Direct |
| Grooves Per Inch (GPI) | Choice of 4, 5, 6, 8, 10, 12 or 15 GPI Rolls |
| Roll Protection | Leaf Spring |
| Magnets | Top Hopper w/Grate Magnet |
Options

Hydraulic Drive Corn Cob-Style Variable Speed Swinging Intake Auger w/Fold-In Flair
Hydraulic Drive Conventional Variable Speed Swinging Intake Auger w/Fold-In Flair
Rear Supplement Hopper

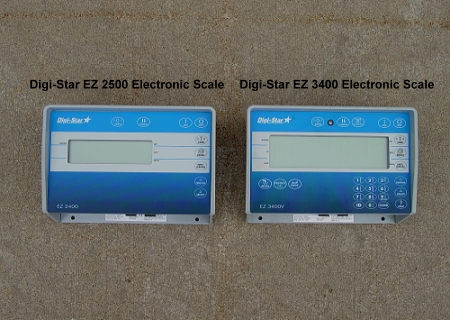

Digi - Star EZ 2500 Electronic Scale
Digi - Star EZ 3410 Electronic Scale W/External Horn
3′ and 6′ Discharge Auger Extensions
9117 - 1000 RPM PTO In Lieu Of Standard 540 RPM PTO
Mill Screens
