Chassis

CH3122 WALKING BEAM CHASSIS

  • Accommodates 18’ – 23’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
  • 32,000# Capacity
  • 34” Wide Heavy Gusseted Frame for superior strength
  • 90″ Tread Width
  • Oscillating Tandem Axles for flexibility w/3” Spindles
  • 8 Bolt 8,000# Hubs
  • Choice of Clevis or Bullnose Hitch
  • Jack

CH3126 WALKING BEAM CHASSIS

  • Accommodates 24’ – 26’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
  • 48,000# Capacity
  • 34” Wide Heavy Gusseted Frame for superior strength
  • 90″ Tread Width
  • Oscillating Tandem Axles for flexibility w/3.5” Spindles
  • 10 Bolt 12,000# Hubs
  • Choice of Clevis or Bullnose Hitch
  • Jack

CH3130 WALKING BEAM CHASSIS

  • Accommodates 27’ – 30’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
  • 60,000# Capacity
  • 34” Wide Heavy Gusseted Frame for superior strength
  • 90″ Tread Width
  • Oscillating Tandem Axles for flexibility w/3.5” Spindles
  • 10 Bolt 15,000# Hubs
  • Bullnose Hitch
  • Jack

CH4126 SUSPENSION CHASSIS

  • Accommodates 24’ – 28’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
  • 26 Ton Spring Suspension System w/13 Ton per Axle Rating
  • 34” Wide Heavy Gusseted Box-Style Frame
  • Bull Nose Hitch
  • Jack

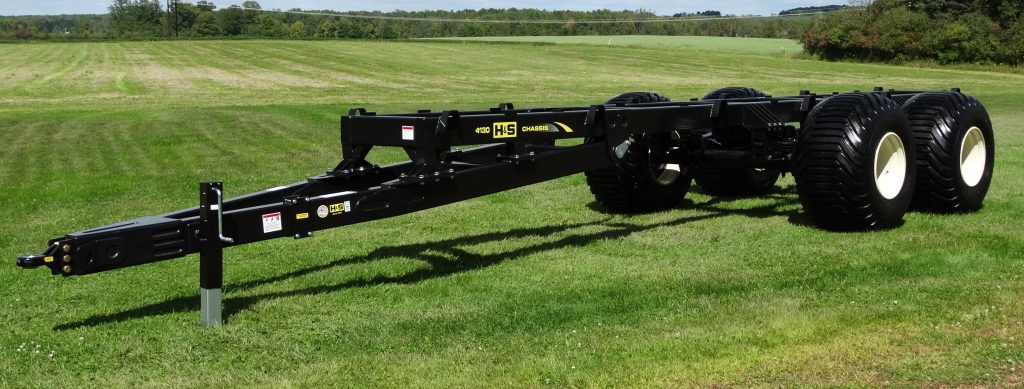

CH4130 SUSPENSION CHASSIS

  • Accommodates 30’ TOTAL LENGTH (including the unit if applicable) Forage Boxes
  • 32 Ton Spring Suspension System w/15 Ton per Axle Rating
  • 34” Wide Heavy Gusseted Box-Style Frame
  • Bull Nose Hitch
  • Jack
CH3122
OVERALL LENGTH N/A
HITCH CHOICE OF CLEVIS OR BULLNOSE
TIRE/RIM CHOICES 19L x 16.1 10 PLY TIRES w/RIMS or 425 x 22.5 USED TRUCK TIRES w/RIMS
TREAD WIDTH 90″
SPINDLES 3″
HUBS 8 BOLT – 8,000 #
JACK STANDARD
BRAKES – OPTIONAL   ELECECTRIC ACTIVATED OVER HYD. BRAKE SYSTEM W/CAB CONTROL BOX
SCALE – OPTIONAL
CH3126
OVERALL LENGTH  N/A
HITCH CHOICE OF CLEVIS OR BULLNOSE
TIRE/RIM CHOICES 425 x 22.5 USED TRUCK TIRES w/RIMS, or 480/55 x 22.5 TIRES w/RIMS, or

600/50 x 22.5 16 PLY FLOATION TIRES w/RIMS

TREAD WIDTH 90″
SPINDLES 3.5″
HUBS 10 BOLT – 12,000#
JACK STANDARD
BRAKES – OPTIONAL  ELECECTRIC ACTIVATED OVER HYD. BRAKE SYSTEM W/CAB CONTROL BOX
SCALE – OPTIONAL
CH3130
OVERALL LENGTH  N/A
HITCH BULLNOSE
TIRE/RIM CHOICES 700/50 x 22.5 16 PLY TIRES w/RIMS
TREAD WIDTH 90″
SPINDLES 3.5″
HUBS 10 BOLT – 15,000#
JACK STANDARD
BRAKES – OPTIONAL   ELECECTRIC ACTIVATED OVER HYD. BRAKE SYSTEM W/CAB CONTROL BOX
SCALE – OPTIONAL
CH4126
OVERALL LENGTH N/A
HITCH BULLNOSE
TIRE/RIM CHOICES      600/50 x 22.5 FLOATION TIRES w/RIMS, or 700/50 x 22.5 FLOATATION TIRES w/RIMS or

700/50 x 22.5 FLOATATION TIRES w/RIMS

TREAD WIDTH N/A
AXLE RATING 13 TON PER AXLE
SUSPENSION 26-TON SPRING
HUBS 10 BOLT
BRAKES HYDRAULIC
JACK STANDARD
CH4130
OVERALL LENGTH        N/A
HITCH BULLNOSE
TIRE/RIM CHOICES 700/50 x 22.5 FLOATATION TIRES w/RIMS

                                      or

710/45 x 22.5 RADIAL FLOATATION TIRES w/RIMS

TREAD WIDTH N/A
AXLE RATING 15 TON PER AXLE
SUSPENSION 32-TON SPRING
HUBS 10 BOLT
BRAKES HYDRAULIC
JACK STANDARD

WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

CH3122 WALKING BEAM CHASSIS OPTIONS

  • (4) 19L x 16.1 10 Ply Tires w/New Silver 8-Bolt Rims
  • (4) 22.5 x 13.5 8 Bolt Silver Rims w/425 x 22.5 Used Truck Tires
  • 4 Wheel Electrically Activated Brake System
  • 6-Point Scale System w/Monitor

CH3126 WALKING BEAM CHASSIS OPTIONS

  • (4) 22.5 x 13.5 Silver Rims w/425 x 22.5 Used Truck Tires
  • (4) New 480/55R x 22.5 Tires/Rims
  • (4) 600/50 x 22.5 16 ply Tires on 20 x 22.5 10 Bolt Wheels
  • 4 Wheel Electrically Activated Brake System
  • 6-Point Scale System w/Monitor
  • Clevis Hitch or Bullnose Hitch

CH3130 WALKING BEAM CHASSIS OPTIONS

  • (4) 700/50 x 22.5 16 Ply Tires/Rims
  • 4 Wheel Electrically Activated Brake System
  • 8-Point Scale System w/Monitor

CH4126 SUSPENSION CHASSIS OPTIONS

  • (4) 600/50 x 22.5 Flotation Tires/Rims
  • (4) 700/50 x 22.5 Flotation Tires/Rims
  • Hydraulic Brake Cylinder Package

CH4130 SUSPENSION CHASSIS OPTIONS

  • (4) 700/50 x 22.5 Flotation Tires/Rims
  • (4) 710/45R22.5 Flotation Tires/Rims
  • Hydraulic Brake Cylinder Package
