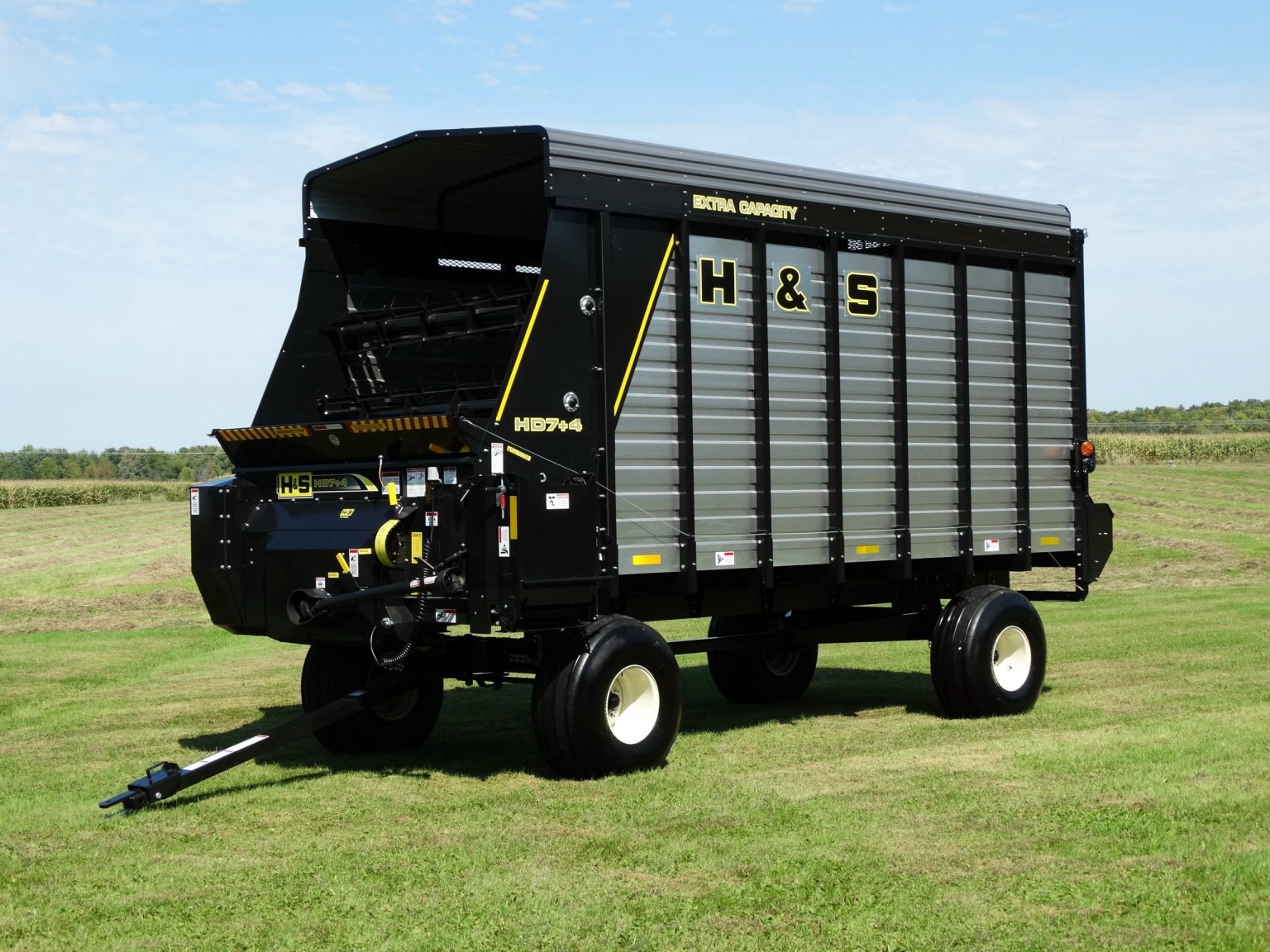

5200 Series “EXTRA CAPACITY” Front Unload Forage BoxesForage Box

Find a Dealer

Features

5200 Series Forage Box Information

Features common to all models:

  • The 5200 Series Forage Boxes are front unload only.
  • Available in either HD 7-4 (cross conveyor), or HD Twin Auger front unload systems.
  • PTO front unload drive as standard, and hydraulic drive front unload as optional.
  • Faster unload time and the smoothest unloading system on the market
  • New swept back unit design
  • H&S uses (3) – 18″ 4 Bar Heavy Duty spiral type beaters – not augers. Aggressive in handling tough material, they are even feeding.
  • Beater shafts are 1¼″ & equipped with greaseable bearings and are mounted in the head, not auxiliary panels in the box.
  • Full length side screen venting
  • Easy install 4th beater w/knock-out lugs
  • A simple trouble-free variable speed drive lets you match just the right unload speed to the crop type, load condition and blower capacity.
  • A separate clutch allows you to start and clear the cross conveyor or augers before you start the beaters or main apron conveyors.
  • Heavy 10″ frame stringers
  • 5” - 6 Gauge Steel Channel Cross-Frame Members
  • 2.5″ x 2.5″ tube uprights
  • 2″ Apron Drive Shaft
  • 7+4 Models - Standard Spring Assist 24″ Cross Conveyor Extension has the ability to tip DOWNWARD 22 degrees
  • Spring loaded tighteners for the beater drive chains
  • Remote grease zerks for the beater bearings
  • All models feature a Removable Roof/No Roof Option

Specifications

5217 Twin Auger & 7-4 Specifications
  • Inside Width . . . . . . . . . . . . . . . . . . . . . 88.25″
  • Inside Height (floor to roof center) .  99″
  • Inside Length . . . . . . . . . . . . . . . . . . . . 17′
  • Overall Width . . . . . . . . . . . . . . . . . . . . 112″
  • Overall Length . . . . . . . . . . . . . . . . . . .  20′ 8″
  • Overall Height . . . . . . . . . . . . . . . . . . .  120″
  • Cubic Ft. Cap. - No Roof/Struck . . . . . 858.48 cu. ft.
  • Apron Chain . . . . . . . . . . . . . . . . . . . . .  667X
  • HD 7-4 Cross-Conveyor . . . . . . . . . .  .  22″ Wide – CA550 Chain w/Welded Slats
  • HD 7-4 Cross-Conveyor Extension . .  24” Spring Assist/Hydraulic Extend/Retract is optional
  • Twin Auger Discharge . . . . . . . . . . . . . (2) 10" High Speed Cross Augers w/Poly-Lined Auger Troughs & 11" Slide-Out Extension
  • Beaters . . . . . . . . . . . . . . . . . . . . . . . . . . 3 – 18″ – 4 Bar Spiral
  • Main Apron Speed . . . . . . . . . . . . . . . .  Variable Speed Drive — 12 Unload Speeds
  • Drive System . . . . . . . . . . . . . . . . . . . . . Bronze Worm Gear Box — #80 Roller Chain
  • Main Apron Drive Shaft . . . . . . . . . . .  2″
  • Drive . . . . . . . . . . . . . . . . . . . . . . . . . . .  540 PTO is Standard/Hydraulic Drive is optional - (1) Remote Needed
  • Emergency Stop Clutch . . . . . . . . . . . . Standard
  • Main Stringers . . . . . . . . . . . . . . . . . . .  10” – 7 Gauge Channel set on 42” Spacing
  • Box Uprights . . . . . . . . . . . . . . . . . . . . . 2.5” x 2.5” Tubular Steel
  • Box Sides & Rear . . . . . . . . . . . . . . . . .  Aluminized
  • Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . .  Removable Roof is Standard w/No Roof option available
  • Highway Lighting & Power Cord . . . . Standard
  • Running Gear Hold-Down Kit . . . . . .  Standard
5219 Twin Auger & 7-4 Specifications
  • Inside Width . . . . . . . . . . . . . . . . . . . . . 88.25″
  • Inside Height (floor to roof center) .  99″
  • Inside Length . . . . . . . . . . . . . . . . . . . . 19′
  • Overall Width . . . . . . . . . . . . . . . . . . . . 112″
  • Overall Length . . . . . . . . . . . . . . . . . . .  22′ 8″
  • Overall Height . . . . . . . . . . . . . . . . . . .  120″
  • Cubic Ft. Cap. - No Roof/Struck . . . . . 963.23 cu. ft.
  • Apron Chain . . . . . . . . . . . . . . . . . . . . .  667X
  • HD 7-4 Cross-Conveyor . . . . . . . . . .  .  22″ Wide – CA550 Chain w/Welded Slats
  • HD 7-4 Cross-Conveyor Extension . .  24” Spring Assist/Hydraulic Extend/Retract is optional
  • Twin Auger Discharge . . . . . . . . . . . . . (2) 10" High Speed Cross Augers w/Poly-Lined Auger Troughs & 11" Slide-Out Extension
  • Beaters . . . . . . . . . . . . . . . . . . . . . . . . . . 3 – 18″ – 4 Bar Spiral
  • Main Apron Speed . . . . . . . . . . . . . . . .  Variable Speed Drive — 12 Unload Speeds
  • Drive System . . . . . . . . . . . . . . . . . . . . . Bronze Worm Gear Box — #80 Roller Chain
  • Main Apron Drive Shaft . . . . . . . . . . .  2″
  • Drive . . . . . . . . . . . . . . . . . . . . . . . . . . .  540 PTO is Standard/Hydraulic Drive is optional - (1) Remote Needed
  • Emergency Stop Clutch . . . . . . . . . . . . Standard
  • Main Stringers . . . . . . . . . . . . . . . . . . .  10” – 7 Gauge Channel set on 42” Spacing
  • Box Uprights . . . . . . . . . . . . . . . . . . . . . 2.5” x 2.5” Tubular Steel
  • Box Sides & Rear . . . . . . . . . . . . . . . . .  Aluminized
  • Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . .  Removable Roof is Standard w/No Roof option available
  • Highway Lighting & Power Cord . . . . Standard
  • Running Gear Hold-Down Kit . . . . . .  Standard
5221 Twin Auger & 7-4 Specifications
  • Inside Width . . . . . . . . . . . . . . . . . . . . . 88.25″
  • Inside Height (floor to roof center) .  99″
  • Inside Length . . . . . . . . . . . . . . . . . . . . 21′
  • Overall Width . . . . . . . . . . . . . . . . . . . . 112″
  • Overall Length . . . . . . . . . . . . . . . . . . .  24′ 8″
  • Overall Height . . . . . . . . . . . . . . . . . . .  120″
  • Cubic Ft. Cap. - No Roof/Struck . . . . . 1,067.98 cu. ft.
  • Apron Chain . . . . . . . . . . . . . . . . . . . . .  667X
  • HD 7-4 Cross-Conveyor . . . . . . . . . .  .  22″ Wide – CA550 Chain w/Welded Slats
  • HD 7-4 Cross-Conveyor Extension . .  24” Spring Assist/Hydraulic Extend/Retract is optional
  • Twin Auger Discharge . . . . . . . . . . . . . (2) 10" High Speed Cross Augers w/Poly-Lined Auger Troughs & 11" Slide-Out Extension
  • Beaters . . . . . . . . . . . . . . . . . . . . . . . . . . 3 – 18″ – 4 Bar Spiral
  • Main Apron Speed . . . . . . . . . . . . . . . .  Variable Speed Drive — 12 Unload Speeds
  • Drive System . . . . . . . . . . . . . . . . . . . . . Bronze Worm Gear Box — #80 Roller Chain
  • Main Apron Drive Shaft . . . . . . . . . . .  2″
  • Drive . . . . . . . . . . . . . . . . . . . . . . . . . . .  540 PTO is Standard/Hydraulic Drive is optional - (1) Remote Needed
  • Emergency Stop Clutch . . . . . . . . . . . . Standard
  • Main Stringers . . . . . . . . . . . . . . . . . . .  10” – 7 Gauge Channel set on 42” Spacing
  • Box Uprights . . . . . . . . . . . . . . . . . . . . . 2.5” x 2.5” Tubular Steel
  • Box Sides & Rear . . . . . . . . . . . . . . . . .  Aluminized
  • Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . .  Removable Roof is Standard w/No Roof option available
  • Highway Lighting & Power Cord . . . . Standard
  • Running Gear Hold-Down Kit . . . . . .  Standard
