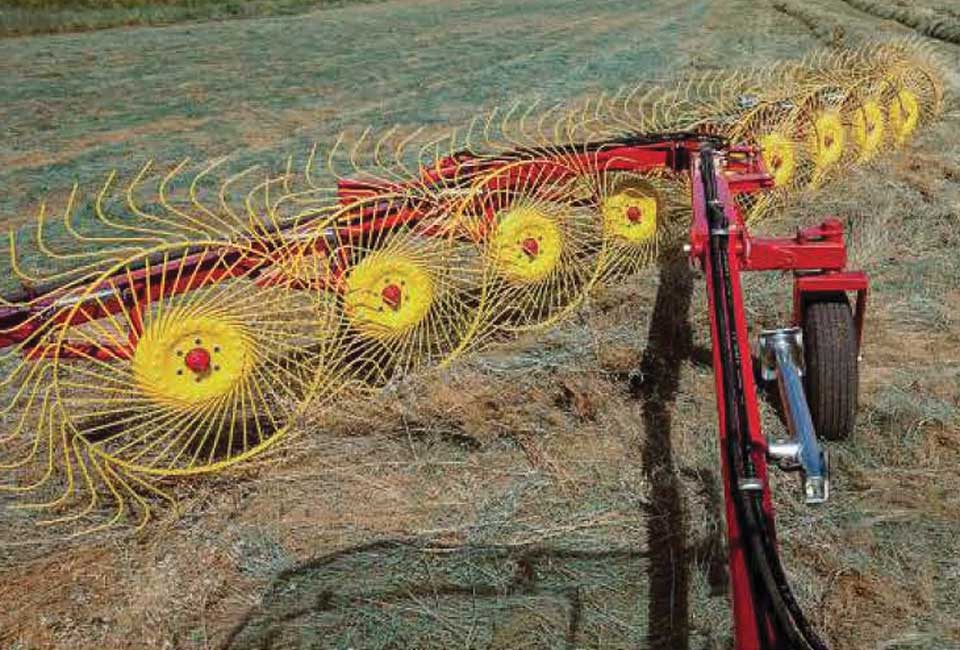

- Unlike the other TR model rakes, the TR/9-S has a narrow transport width of 77″
- The TR/9-S is equipped with a strong joint system that can move from transport position to the working position by the hydraulic cylinders that are operated by the tractor remote lever
- The hydraulic cylinder/joint system feature allows the operator to make width adjustments on the go, adapting to any changing field conditions
| TR/9-S | |
|---|---|
| NUMBER OF WHEELS | 9 |
| WHEEL DIAMETER | 55″ |
| TINES PER WHEEL | 40 |
| RAKE WHEEL TINE DIAMETER | 7mm |
| TR/9-3W | |
|---|---|
| NUMBER OF WHEELS | 9 |
| WHEEL DIAMETER | 55″ |
| TINES PER WHEEL | 40 |
| RAKE WHEEL TINE DIAMETER | 7mm |
| TR9 | |
|---|---|
| NUMBER OF WHEELS | 9 |
| WHEEL DIAMETER | 55″ |
| TINES PER WHEEL | 40 |
| RAKE WHEEL TINE DIAMETER | 7mm |
| TR7 | |
|---|---|
| NUMBER OF WHEELS | 7 |
| WHEEL DIAMETER | 55″ |
| TINES PER WHEEL | 40 |
| RAKE WHEEL TINE DIAMETER | 7mm |
