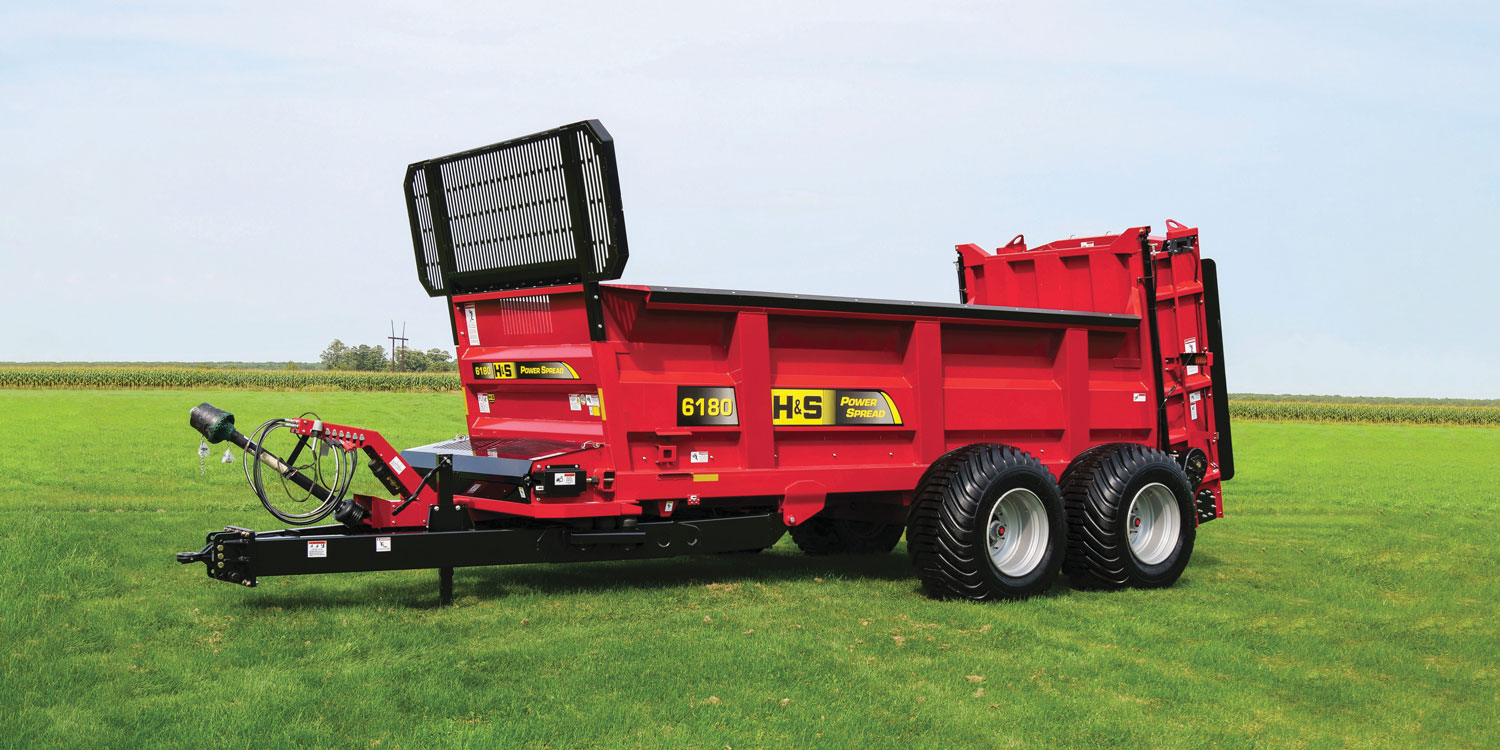

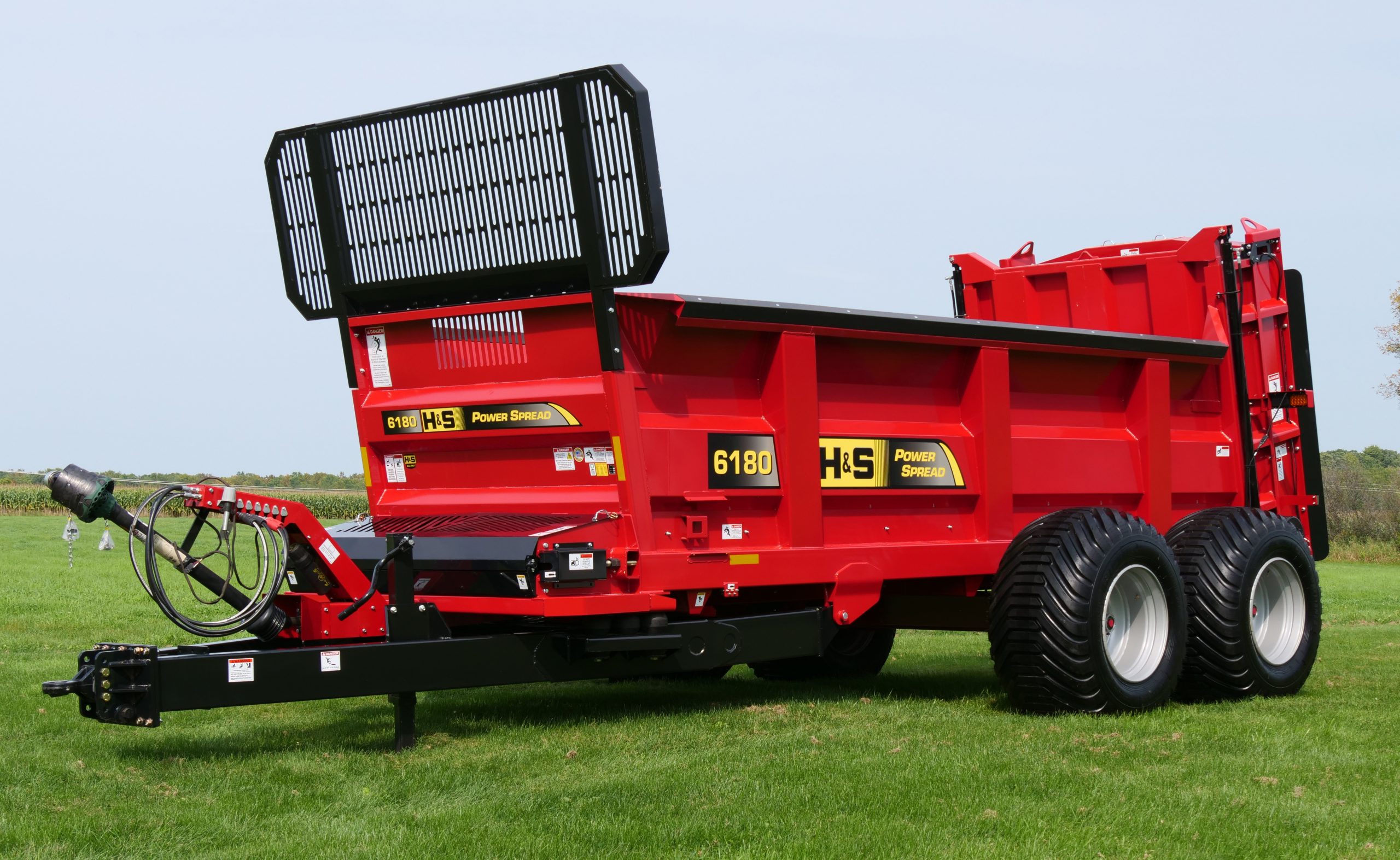

PS6180 Power Spread Information
- 3/4″ thick vertical beaters vs. 1/2″ on some competitors.
- Vertical beaters feature “REVERSE FLIGHTING” on the top 20+″ of the beater flighting. This patented feature allows for an even spread pattern of material.
- Rubber tongue suspension is standard equipment – not an option like some of the competition!
- Single bolt easy adjust main apron chain.
- Heavy 2″ x 4″ x 1/4″ tubular apron slats.
- 3/4″ marine grade 80 log chain vs. competitors w/5/8″.
- Heavy duty rectangular tubing is used for the pole to ensure strength and long life.
- The bottom drive Monoblock Gearbox w/3-1/8″ output shafts vs. 2-1/ 2 on the competition.
- A constant velocity tractor PTO, and overrunning clutch on the gearbox PTO provides protection to the driveline.
- The hydraulically driven apron features “Heavy Duty Dual Drive Apron Gearboxes.”
- Beater blades are replaceable, and the beater assembly is removable for stockpiling manure.
- Removal of the beater assembly is done by simply removing the mounting bolts and disconnecting the PTO gearbox driveshaft.
- LED lighting is a standard feature.
| PS6180 | |
|---|---|
| CAPACITY – HEAPED BUSHEL PER S324.2 | 638 Cu. Ft. |
| CAPACITY – HEAPED BUSHEL PER S324.1 | 764 Cu. Ft. |
| CAPACITY CUBIC FT. STRUCK LEVEL | 578 Cu. Ft. |
| SIDE LOADING HEIGHT | 94.75″ / 8′ 10.75″ |
| VERTICAL BEATER HEIGHT | 132″ / 11′ |
| HEIGHT-TOP OF HYD. END GATE | 127″ / 10′ 7″ |
| HEIGHT-TOP OF SCREEN | 132″ / 11′ |
| INSIDE WIDTH | 78.75″ / 6′ 6.75″ |
| INSIDE LENGTH | 235.50″ / 19′ 7.50″ |
| INSIDE DEPTH | 52.50″ / 4′ 4.50″ |
| OVERALL WIDTH W/TIRES | 169″ / 14′ 1″ |
| OVERALL LENGTH | 393″ / 27′ 5″ |
| STANDARD NUMBER OF BEATERS | 2 |
| VERTICAL BEATER DIAMETER | 39″ |
| REPLACEABLE BEATER PADDLES | Yes |
| SPREAD PATTERN – APPROXIMATE | 25’ – 30’ dependent on the weight of material |
| UNLOAD TIME – APPROXIMATE | 2-1/2 minutes dependent on tractor hydraulic flow & pressure |
| REMOVEABLE BEATER ASSEMBLY | Yes |
| APRON CHAIN SIZE | 3/4″ Grade 80 |
| HITCH EMPTY WEIGHT – APPROXIMATE | 570 LBS. |
| HUB | 10 Bolt – 25,000 Rating |
| SPINDLE SIZE | 4.5″ |
| TIRE SIZE – STANDARD | 700/50 x 26.5 |
| HYDRAULIC REQUIEMENTS | 3,000 p.s.i. & 30 g.p.m. |
| HYDRAULIC END GATE | Guillotine/Metering Style |
| CYLINDERS ON END GATE | 2 |
| JACK | Choice of Crank or Hydraulic |
| HITCH CHOICES | Swivel Clevis / Class 4 or 5 Bullnose |
| POLY BUMP RAILS | Standard |
| PTO CHOICES | Choice of 1-3/8″ or 1-3/4″ 1,000 RPM Constant Velocity |
| WEIGHT W/TIRES | Approximately 21,000# |
WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
| OPTIONS: |
| Electric Adjust Hydraulic Variable Speed Control |
| Reverser Valve |
| 4-Wheel Disc Brakes |
| Scale Kit |
| Safety Chain – 60,000 Lb. |

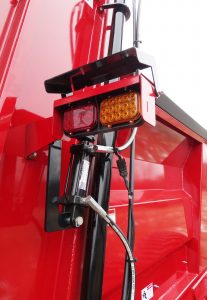

| Hydraulic Activated Light Covers (pictured below) |
