ALL MODELS EXCEPT THE 5215 are available with the optional Digi-Star GT400, or Nutrient Tracker Scale System with GPS!
The heavy-duty expeller system with a quick release poly-lined fine spread pan, and side fins help cut the drift of material towards the tractor and spreader, and provide an excellent spread pattern.
- 40″ Wide “Top Shot” Expeller Beater
- 24″ Diameter Round Core Segmented Auger
- Left Side Poly Lined Tank
- Front and Rear Splash Guards
- Flip-Over Adjustable Hitch
- Overrunning Clutch /Torque Limiting Clutch & Shear Bolt Protection
- Shear Bolt Protection
- The auger System hydraulically raise and lower a full 8″ to break-up material that may bridge during the unloading process.
- Automatic Chain Oiler System
- Highway Lighting System
- Remote Grease System
Cylinder System
A master/slave cylinder system raises and lowers the main auger evenly to keep material moving to the expeller.
A master/slave cylinder system raises and lowers the main auger evenly to keep material moving to the expeller.
Drive System
The 5215 drive system features a sprocket reduction system with heavy-duty chain.
The 5215 drive system features a sprocket reduction system with heavy-duty chain.
Lighting System
The optional highway lighting system connects to the 7-pin tractor plug for added safety.
The optional highway lighting system connects to the 7-pin tractor plug for added safety.
Manual Adjust Shield & Expeller
The 5215 features a 3 Section - 30″ Expeller with a quick release poly-lined fine spread pan. The manual adjust shield allows for distance of spread.
The 5215 features a 3 Section - 30″ Expeller with a quick release poly-lined fine spread pan. The manual adjust shield allows for distance of spread.
Oiler System
An optional automatic oiler system oils the drive system chains anytime the discharge door is raised. A scraper holder is standard equipment.
An optional automatic oiler system oils the drive system chains anytime the discharge door is raised. A scraper holder is standard equipment. Jack storage is on the left side of the manure spreader.
Overrunning Clutch
The 5215 has an Overrunning Clutch /Torque Limiting Clutch and shear bolt protection for smooth power transfer.
The 5215 has an Overrunning Clutch /Torque Limiting Clutch and shear bolt protection for smooth power transfer.
Quick Release Pan
A quick release poly-lined fine spread pan allows for easy clean up.
A quick release poly-lined fine spread pan allows for easy clean up.
Segmented Auger
The left side poly liner allows material to slide to the auger. The 5215 features a 24″ diameter round core segmented auger.
The left side poly liner allows material to slide to the auger. The 5215 features a 24″ diameter round core segmented auger. All Auger Systems hydraulically raise and lower a full 8″ to break-up material that may bridge during the unloading process.
| 5215 |
| CUBIC FT. STRUCK LEVEL |
172 |
| GALLON CAPACITY |
1286 |
| TANK LENGTH |
14′ |
| OVERALL LENGTH |
20′ 10″ |
| TANK WIDTH – TOP |
70″ |
| AUGER DIAMETER |
24″ |
| POLY LINED TANK |
Left Side |
| OVERRUNNING CLUTCH |
Yes |
| SHEAR BOLT PROTECTION |
Yes |
| PTO |
540 RPM Std. 1000 RPM Opt. |
| EXPELLER WIDTH |
30″ |
| FRONT SPLASHGUARDS |
Standard |
| REAR SPLASHGUARDS |
Optional |
| AUTOMATIC OILER |
Optional |
| HIGHWAY LIGHTING |
Optional |
| WEIGHT |
5,740# |

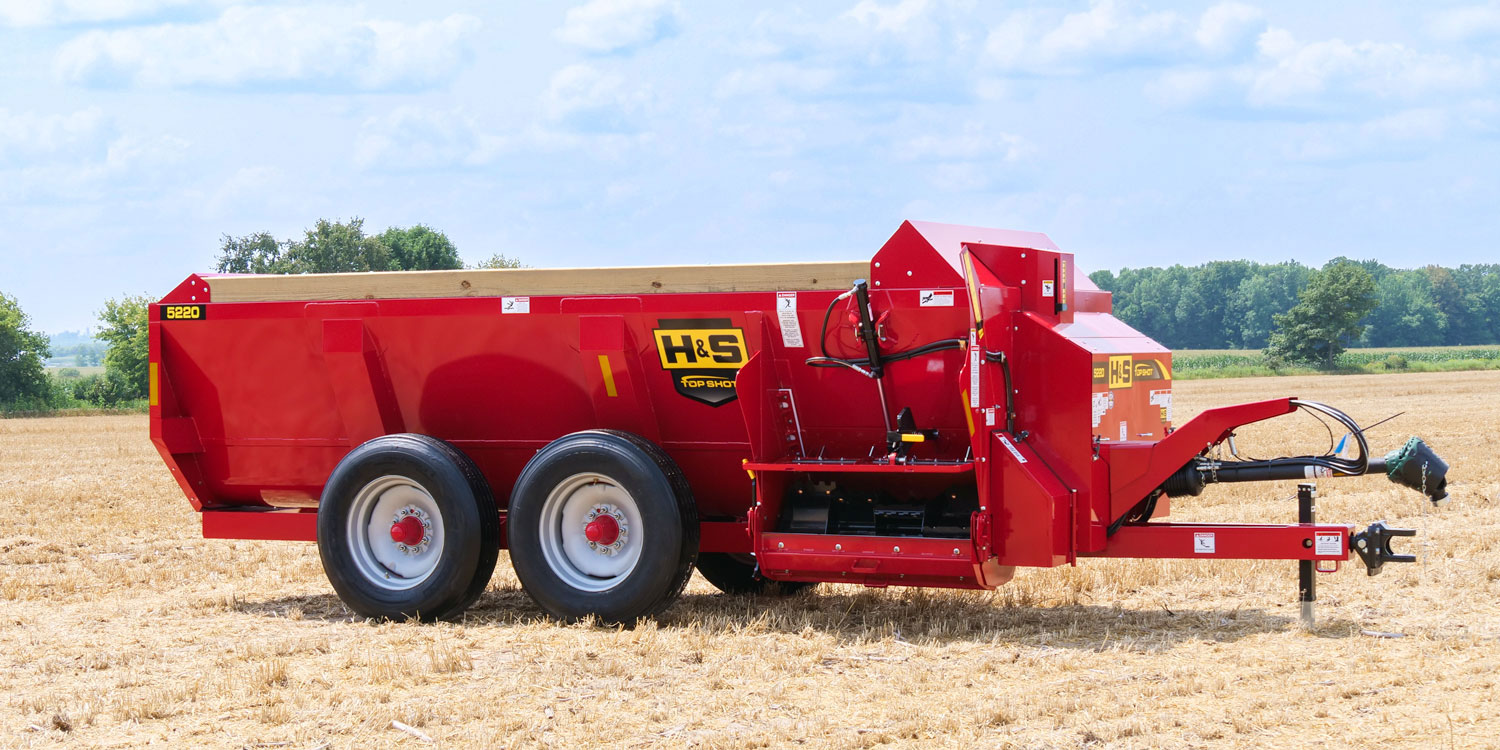

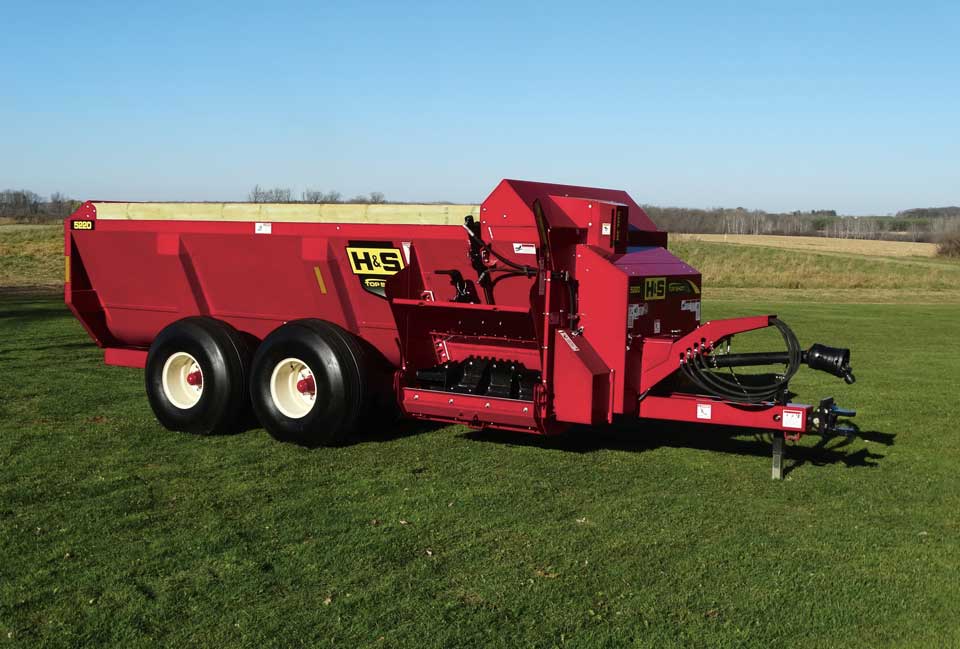

| 5220 |
| CUBIC FT. STRUCK LEVEL |
268.6 |
| GALLON CAPACITY |
2009 |
| TANK LENGTH |
16′ |
| OVERALL LENGTH |
22′ 8″ |
| TANK WIDTH – TOP |
76″ |
| AUGER DIAMETER |
24″ |
| POLY LINED TANK |
Left Side |
| OVERRUNNING CLUTCH |
Yes |
| SHEAR BOLT PROTECTION |
Yes |
| PTO |
540 RPM Std. 1000 RPM Opt. |
| EXPELLER WIDTH |
40″ |
| FRONT SPLASHGUARDS |
Standard |
| REAR SPLASHGUARDS |
Standard |
| AUTOMATIC OILER |
Standard |
| HIGHWAY LIGHTING |
Standard |
| WEIGHT |
6,860# |
| 5226 |
| CUBIC FT. STRUCK LEVEL |
347 |
| GALLON CAPACITY |
2596 |
| TANK LENGTH |
16′ |
| OVERALL LENGTH |
22′ 8″ |
| TANK WIDTH – TOP |
87″ |
| AUGER DIAMETER |
24″ |
| POLY LINED TANK |
Left Side |
| OVERRUNNING CLUTCH |
Yes |
| SHEAR BOLT PROTECTION |
Yes |
| PTO |
540 RPM Std. 1000 RPM Opt. |
| EXPELLER WIDTH |
40″ |
| FRONT SPLASHGUARDS |
Standard |
| REAR SPLASHGUARDS |
Standard |
| AUTOMATIC OILER |
Standard |
| HIGHWAY LIGHTING |
Standard |
| WEIGHT |
7,880# |
| 5215 TIRE SPECIFICATIONS |
| w/19L X 16.1 Tires |
| SIDE LOADING HEIGHT |
65 ¾″ |
| HEIGHT @ REAR CYL. BRACKET |
66 ¾″ |
| HEIGHT @ FRONT SPLASH |
79″ |
| HEIGHT @ REAR SPLASH |
N/A |
| OVERALL WIDTH |
88 ½″ |
WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
