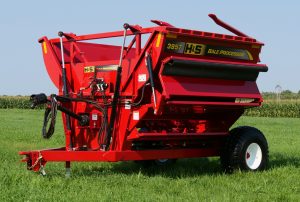

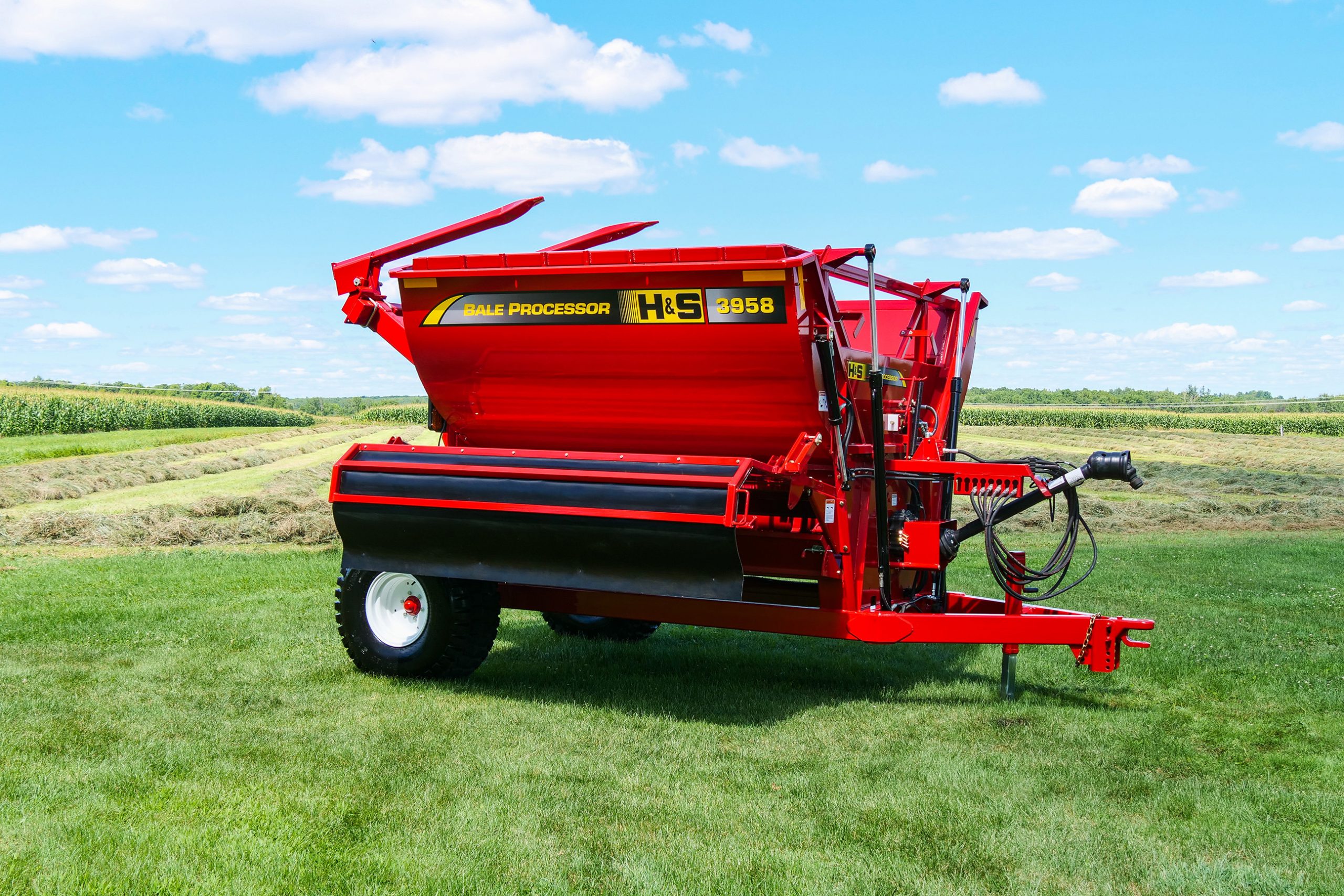

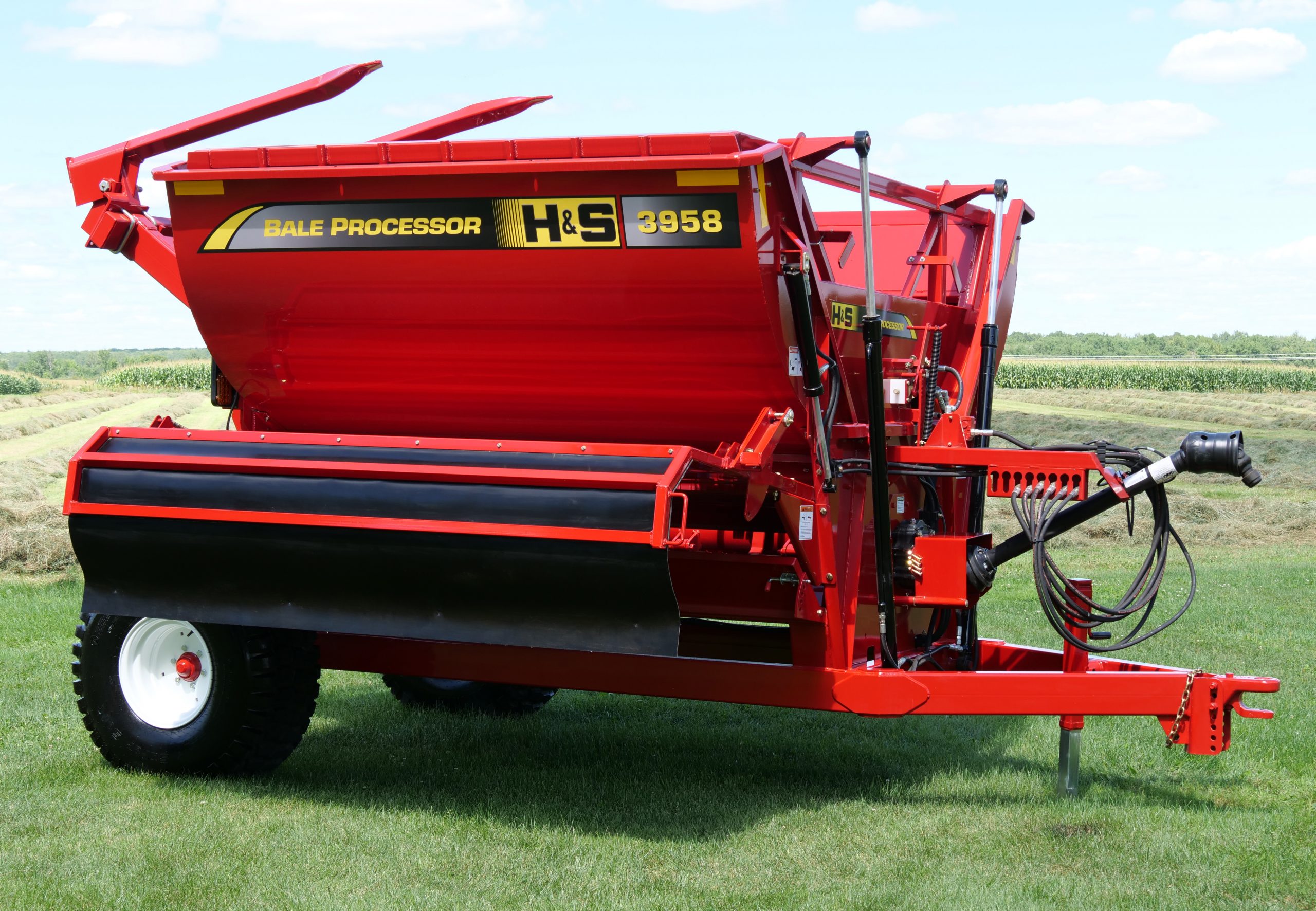

BP3958 BALE PROCESSOR INFORMATION
- Exclusive rocking cradle design handles all types of bales
- Process high moisture hay and silage bales
- Right hand discharge
- Load up to 20 small square bales
- Full adjustable loading forks handle all sizes of bales
- Simple hydraulic valving activates cradle rock and speed
- Easy cradle travel adjustment
- Built in PTO shaft & hydraulic hose storage bracket
- No belts, no chains
- Hydraulic lift available
- Unibody frame construction with high clearance
- Deflector windrows product or feeds directly into bunks
- Hydraulic deflector lift
- Easy access to shear pin
- Remove twine through access door opposite of discharge
- Full pan on the lift frame
- Lower deflector
- Fully adjustable clevis hitch
- 16.5 X 16.1 10 ply flotation tires
- LED tail lights
| RIGHT-HAND DISCHARGE 3958 | |
|---|---|
| OVERALL LENGTH | 193″ |
| WIDTH | 136″ |
| HEIGHT (BODY ONLY) | 98″ |
| TIRES | 16.5 X 16.1 10 Ply |
| EMPTY WEIGHT | 5,750 lbs. |
| PTO | 1-⅜″ 21 Spline 1000 RPM |
| HEAVY DUTY HITCH JACK | Standard |
| ADJUSTABLE HITCH W/HEAVY DUTY CLEVIS | Standard |
| HYDRAULIC CIRCUITS REQUIRED | 3 REMOTES |
| CHAMBER LENGTH | 95″ |
| ROTOR SWING DIAMETER | 25 ⅛″ |
| NUMBER OF HAMMERS | 32 |
| HAMMER SIZE | ½″ X 2″ X 5¼″ |
| ROTOR LENGTH | 83″ |
| WHEEL TRACK | 96″ |
| MIN. HORSEPOWER | 120 HP |
| HYDRAULIC DEFLECTOR | Standard |
| LOWER DEFLECTOR | Standard |
| LED TAIL LIGHTS | Standard |
WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
