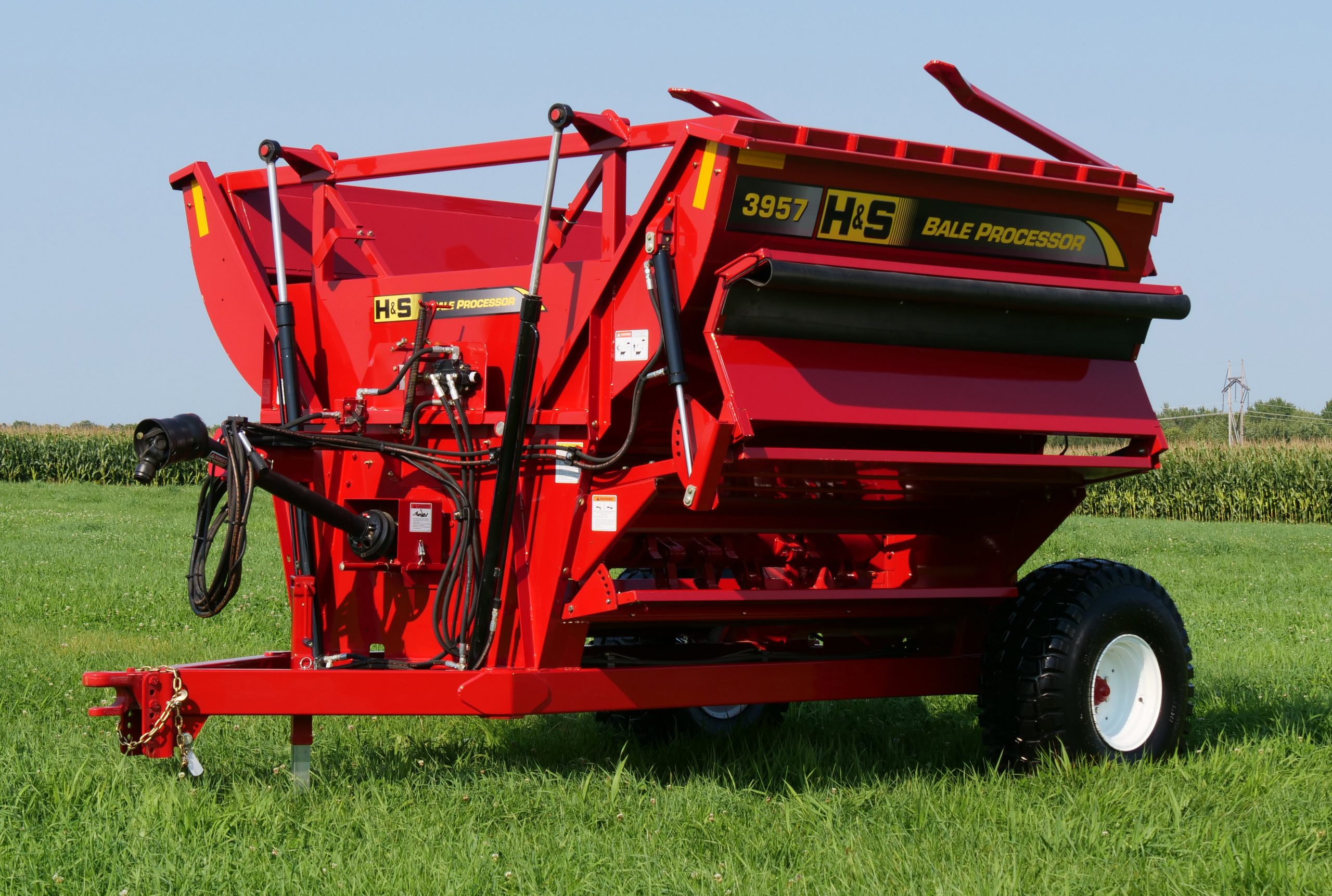

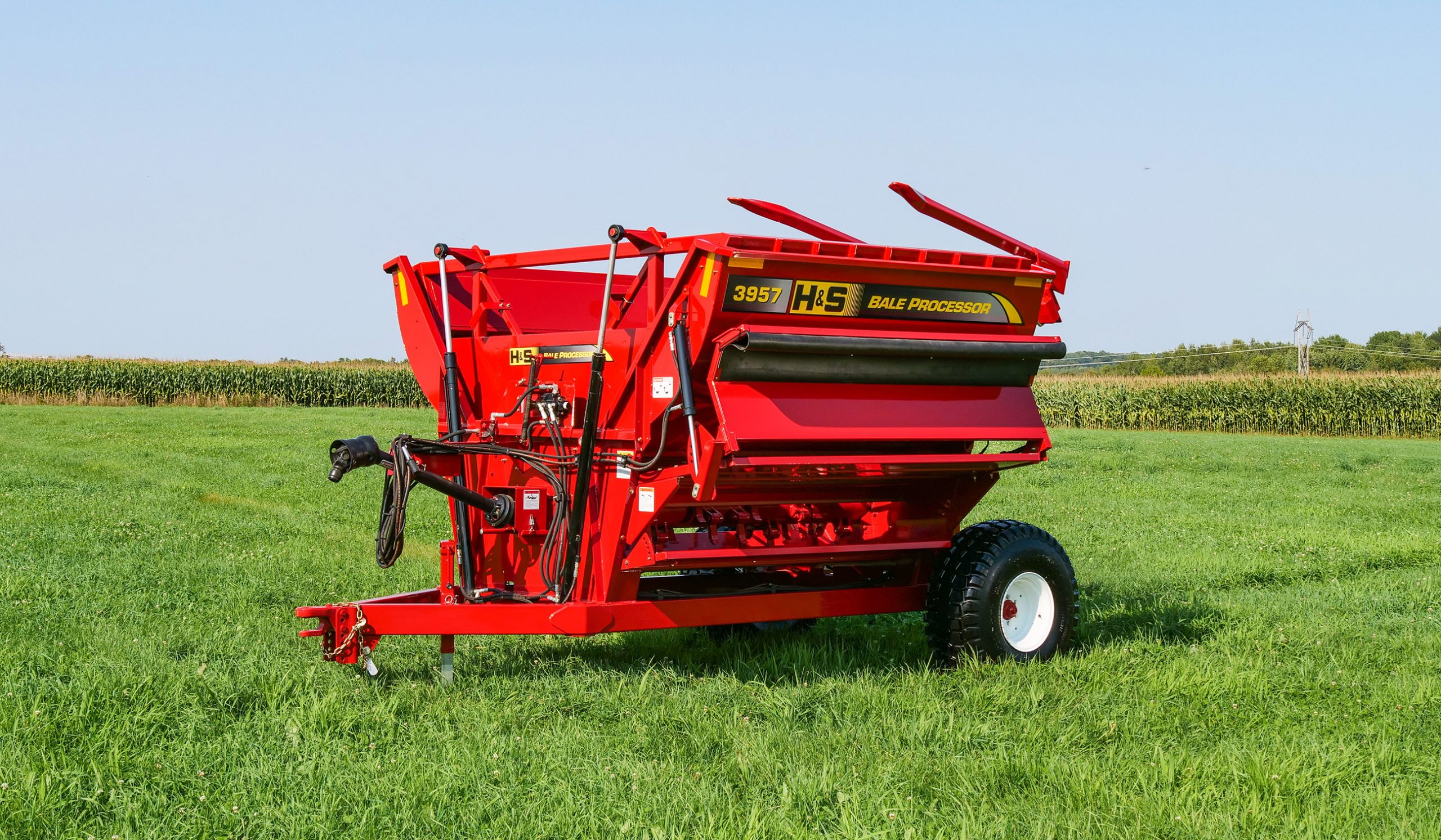

BP3957 BALE PROCESSOR INFORMATION
- Exclusive rocking cradle design handles all types of bales
- Process high moisture hay and silage bales
- Left Hand discharge
- Load up to 20 small square bales
- Fully adjustable loading forks handle all sizes of bales
- Simple hydraulic valving activates cradle rock and speed
- Easy cradle travel adjustment
- Built in PTO shaft & hydraulic hose storage bracket
- No belts, no chains
- Unibody frame construction with high clearance
- Deflector windrows product or feeds directly into bunks
- Easy access to shear pin
- Remove twine through access door opposite of discharge
- Fully adjustable clevis hitch
- 16.5 x 16.1 flotation tires
- LED tail lights
- Optional hydraulic deflector lift
| LEFT-HAND DISCHARGE 3957 | |
|---|---|
| OVERALL LENGTH | 193″ |
| WIDTH | 136″ |
| HEIGHT (BODY ONLY) | 98″ |
| TIRES | 16.5 X 16.1 FLOATATION TIRES |
| EMPTY WEIGHT | 5,675 LBS |
| PTO | 1-⅜″ 21 SPLINE 1000 RPM |
| HEAVY DUTY HITCH JACK | STANDARD |
| ADJUSTABLE HITCH W/HEAVY DUTY CLEVIS | STANDARD |
| HYDRAULIC CIRCUITS REQUIRED | 2 REQUIRED – A 3RD REMOTE NEEDED FOR HYD. DEFLECTOR |
| CHAMBER LENGTH | 95″ |
| ROTOR SWING DIAMETER | 25 ⅛″ |
| NUMBER OF HAMMERS | 32 |
| HAMMER SIZE | ½″ X 2″ X 5¼″ |
| ROTOR LENGTH | 83″ |
| WHEEL TRACK | 96″ |
| MIN. HORSEPOWER | 120 HP |
| HYDRAULIC DEFLECTOR LIFT | OPTIONAL |
WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
