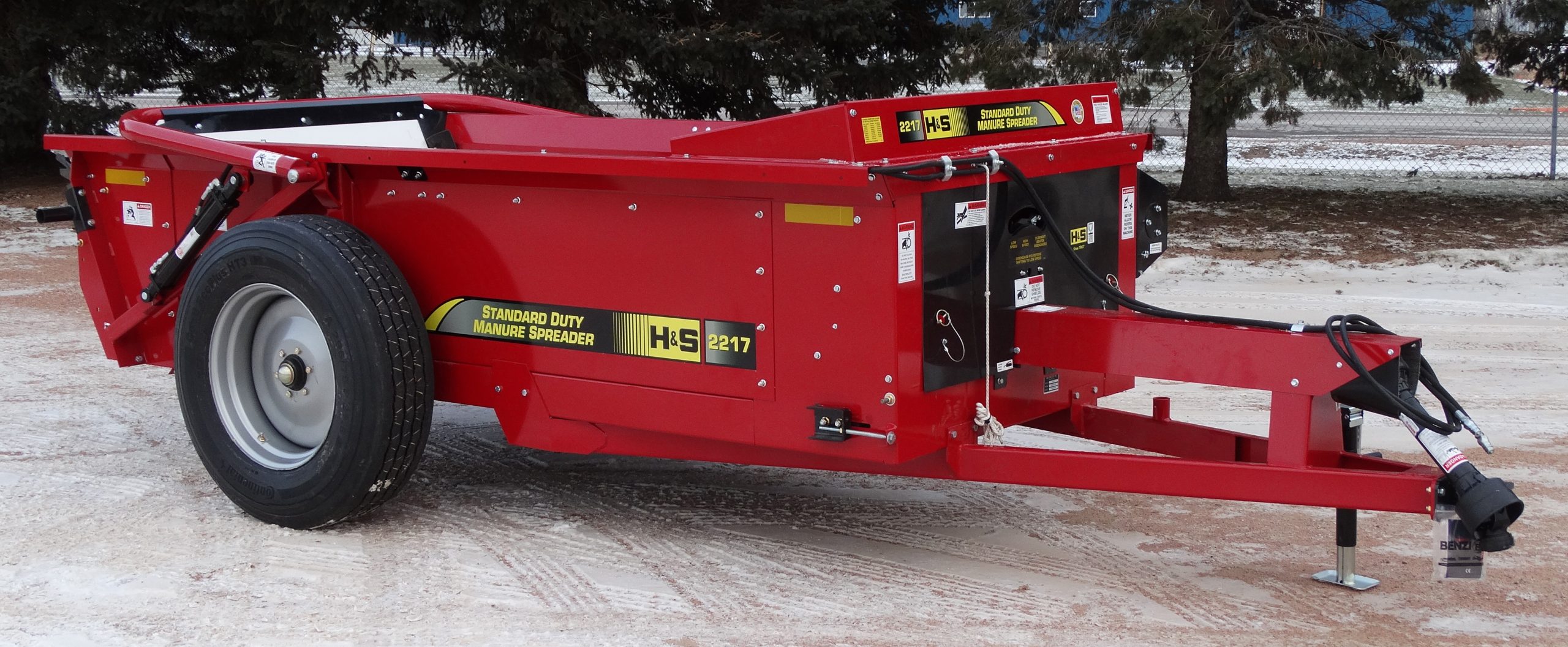

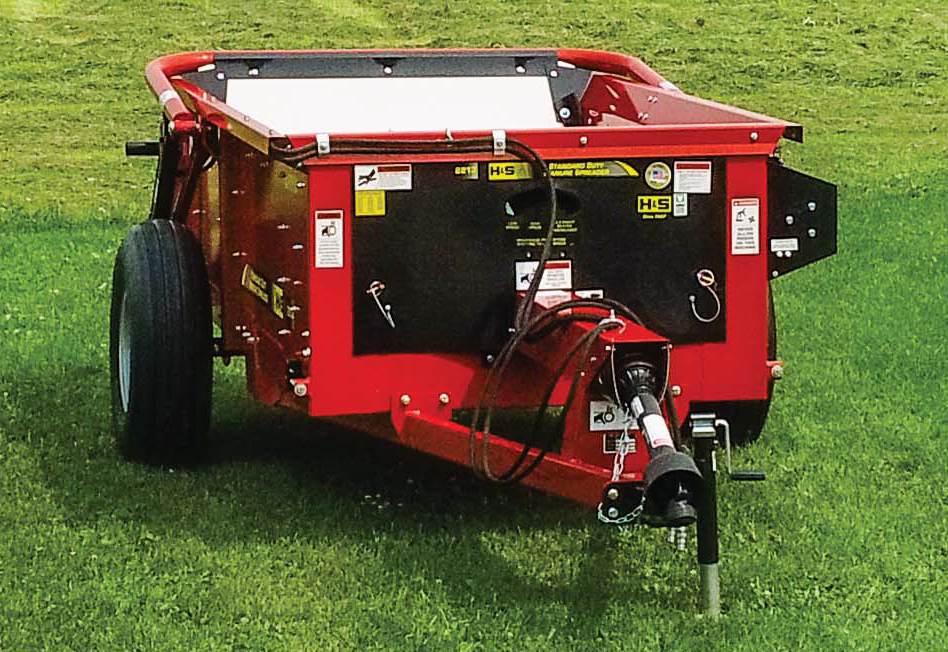

STANDARD DUTY MANURE SPREADER
- All welded heavy duty A-frame hitch assembly and full length unitized main frame.
- Heavy duty 2-speed apron drive system plus beater shutoff for a positive drive and long life.

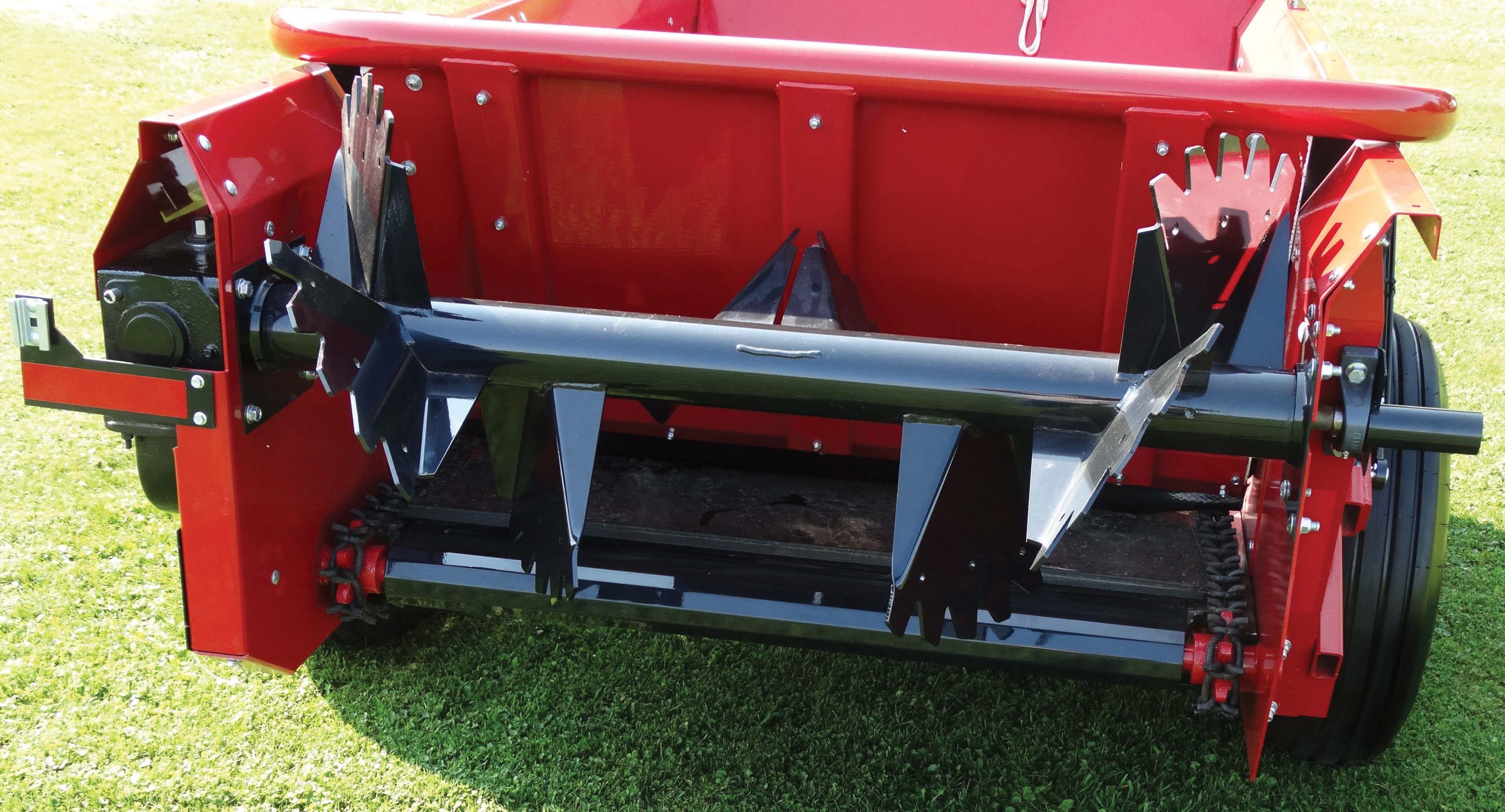

- A heavy duty beater assembly assures aggressive shredding action with even wide spread patterns.
- Spreader box sides are constructed of corrosion resistant galvanized steel.

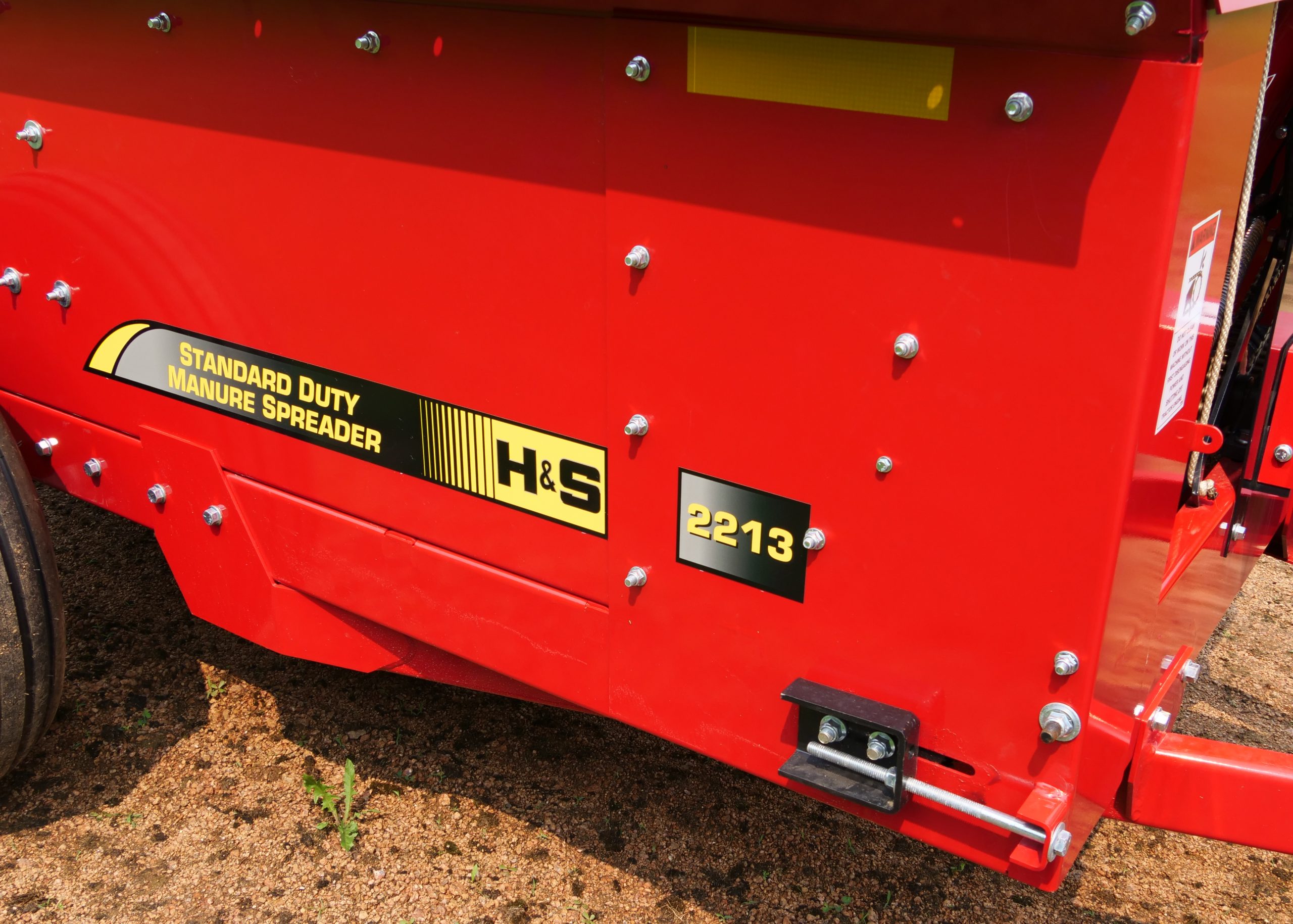

- Main apron tightener bolts are located outside on the lower right and left corners of the main frame.
| 2280 | |
|---|---|
| CAPACITY – HEAPED (OLD RATING) BU. | 80 bu. |
| CAPACITY – CU. FT. STRUCK LEVEL | 53 |
| TOP OF FLARE WIDTH | 48″ (122 cm) |
| INSIDE WIDTH | 48″ (122 cm) |
| INSIDE LENGTH | 7′4″ (223 cm) |
| INSIDE DEPTH | 19 ¾″ (50 cm) |
| OVERALL LENGTH | 13′ 10″ (422 cm) |
| OVERALL LOADING HEIGHT – TOP OF FLARE | 35″ (89 cm) |
| OVERALL HEIGHT W/HYD. ENDGATE | N/A |
| OVERALL WIDTH W/STANDARD TIRES | 76″ (193 cm) |
| STANDARD TIRE SIZE | 6.70 x 15 |
| SPINDLE SIZE | 2″ (5 cm) |
| DIAMETER OF BEATER | 18 ½″ (47 cm) |
| NUMBER OF PADDLES | 10 |
| MAIN APRON CHAIN | 67H |
| BOX CONSTRUCTION | Powder Coated Steel |
| FLOOR CONSTRUCTION | Bonded Poly |
| APRON DRIVE | Gearbox 2 Speed PTO |
| UPPER BEATER | N/A |
| SWING AWAY JACK | STANDARD |
| WEIGHT W/TIRES | 1140 lbs. (517 kg |
| OPTIONS | FINE SPREAD PAN |
| 2213 | |
|---|---|
| CAPACITY – HEAPED (OLD RATING) BU. | 125 bu. |
| CAPACITY – CU. FT. STRUCK LEVEL | 75 |
| TOP OF FLARE WIDTH | 54″ (137 cm) |
| INSIDE WIDTH | 48″ (122 cm) |
| INSIDE LENGTH | 10′ 6″ (320 cm) |
| INSIDE DEPTH | 22″ (56 cm) |
| OVERALL LENGTH | 15′ 3″ (465 cm) |
| OVERALL LOADING HEIGHT – TOP OF FLARE | 43 ½″ (110 cm) |
| OVERALL HEIGHT W/HYD. ENDGATE | N/A |
| OVERALL WIDTH W/STANDARD TIRES | 80″ (203 cm) |
| STANDARD TIRE SIZE | 10.00 x 15 |
| SPINDLE SIZE | 2″ (5 cm) |
| DIAMETER OF BEATER | 22″ (56 cm) |
| NUMBER OF PADDLES | 10 |
| MAIN APRON CHAIN | 67H |
| BOX CONSTRUCTION | Powder Coated Steel |
| FLOOR CONSTRUCTION | Bonded Poly |
| APRON DRIVE | Gearbox 2 Speed PTO |
| UPPER BEATER | OPTIONAL |
| SWING AWAY JACK | STANDARD |
| WEIGHT W/TIRES | 1600 lbs. (726 kg) |
| OPTIONS | FINE SPREAD PAN |
| 2217 | |
|---|---|
| CAPACITY – HEAPED (OLD RATING) BU. | 175 bu. |
| CAPACITY – CU. FT. STRUCK LEVEL | 105 |
| TOP OF FLARE WIDTH | 63 ½″ (161 cm) |
| INSIDE WIDTH | 54″ (137 cm) |
| INSIDE LENGTH | 11′ 1″ (338 cm) |
| INSIDE DEPTH | 25 ¾″ (65 cm) |
| OVERALL LENGTH | 17′ 8″ (538 cm) |
| OVERALL LOADING HEIGHT – TOP OF FLARE | 45 ½″ (116 cm) |
| OVERALL HEIGHT W/HYD. ENDGATE | 49″ |
| OVERALL WIDTH W/STANDARD TIRES | 83 ½″ (212 cm) |
| STANDARD TIRE SIZE | 9.00 x 20 |
| SPINDLE SIZE | 2″ (5 cm) |
| DIAMETER OF BEATER | 27″ (68 cm) |
| NUMBER OF PADDLES | 8 |
| MAIN APRON CHAIN | T-rod |
| BOX CONSTRUCTION | Powder Coated Steel |
| FLOOR CONSTRUCTION | Bonded Poly |
| APRON DRIVE | Gearbox 2 Speed PTO |
| UPPER BEATER | OPTIONAL |
| SWING AWAY JACK | STANDARD |
| WEIGHT W/TIRES | 2030 lbs. (921 kg) |
| OPTIONS | FINE SPREAD PAN – HYD. END GATE |
WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
A rear pan is optional on all models.
