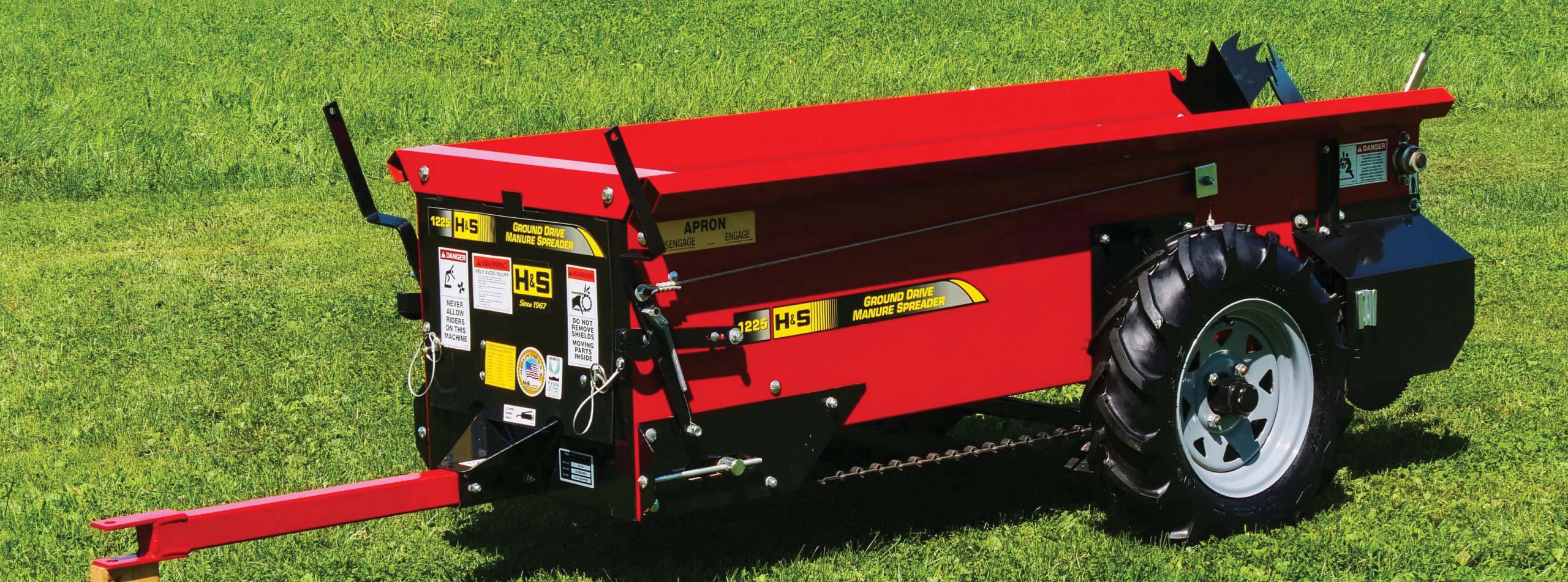

GROUND DRIVE MANURE SPREADER
- 6 x 12 Deep Lug traction tires.

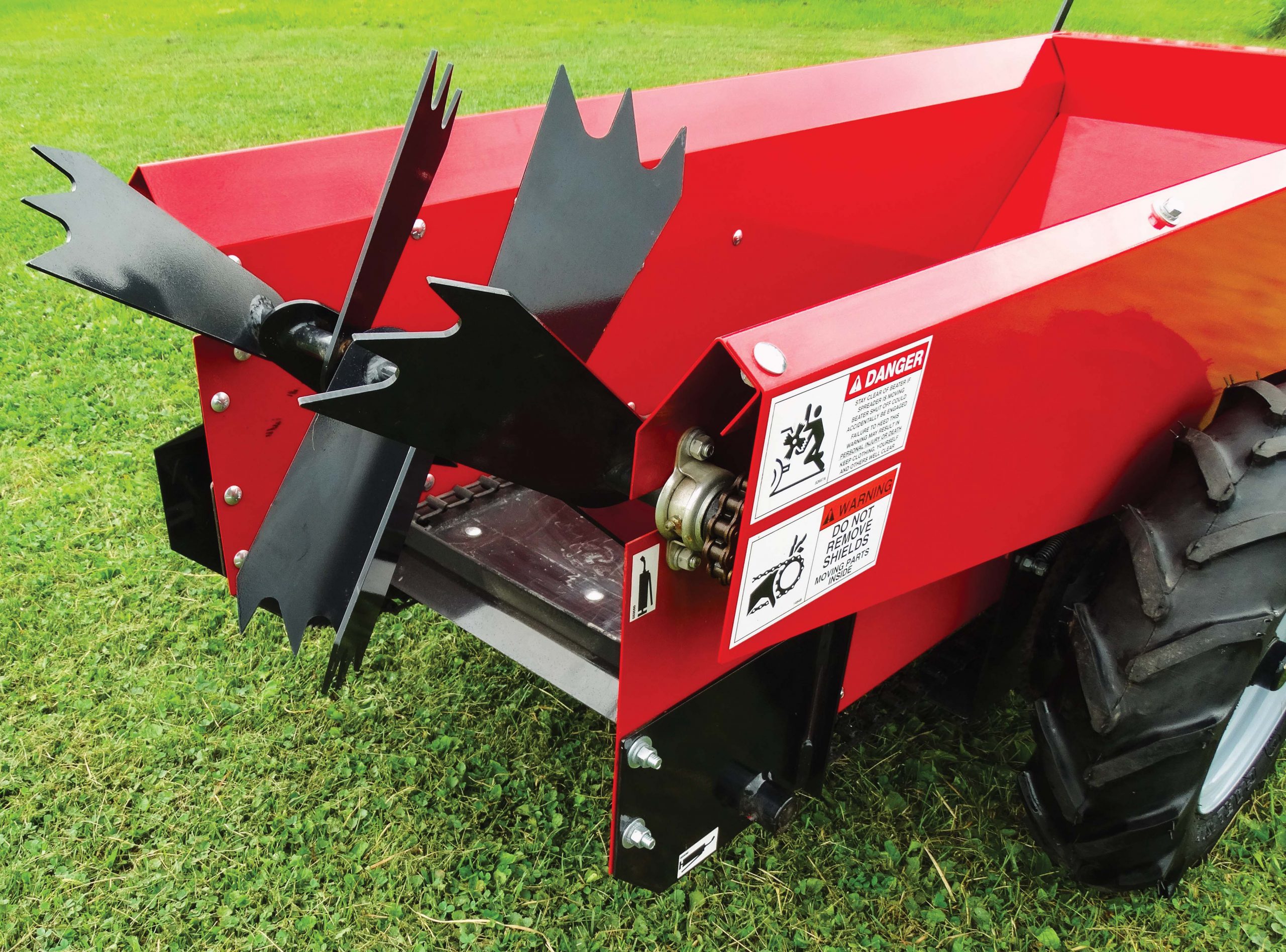

- The beater on the 1225 is 20″ in diameter and with 8 paddles provides an even spread of material.

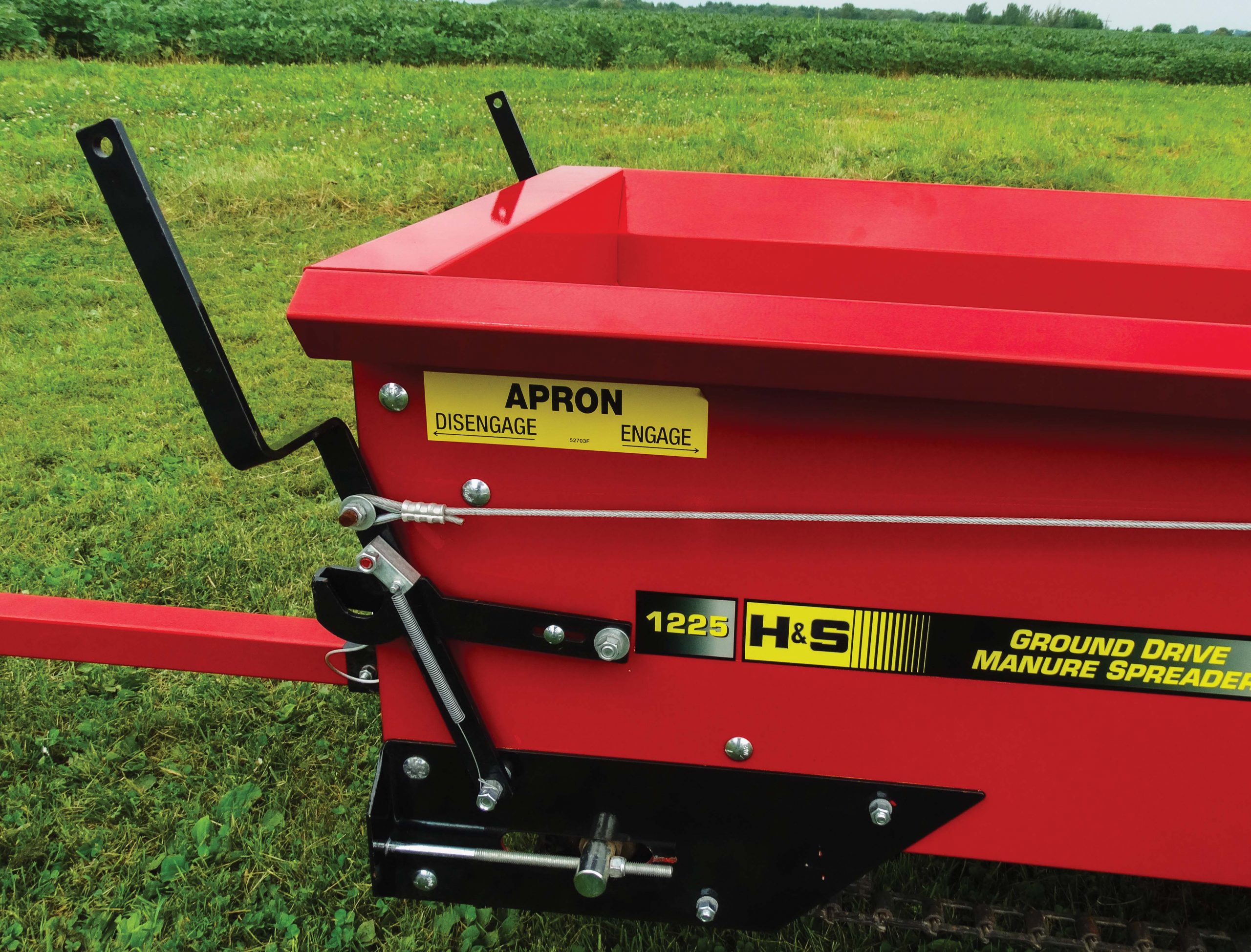

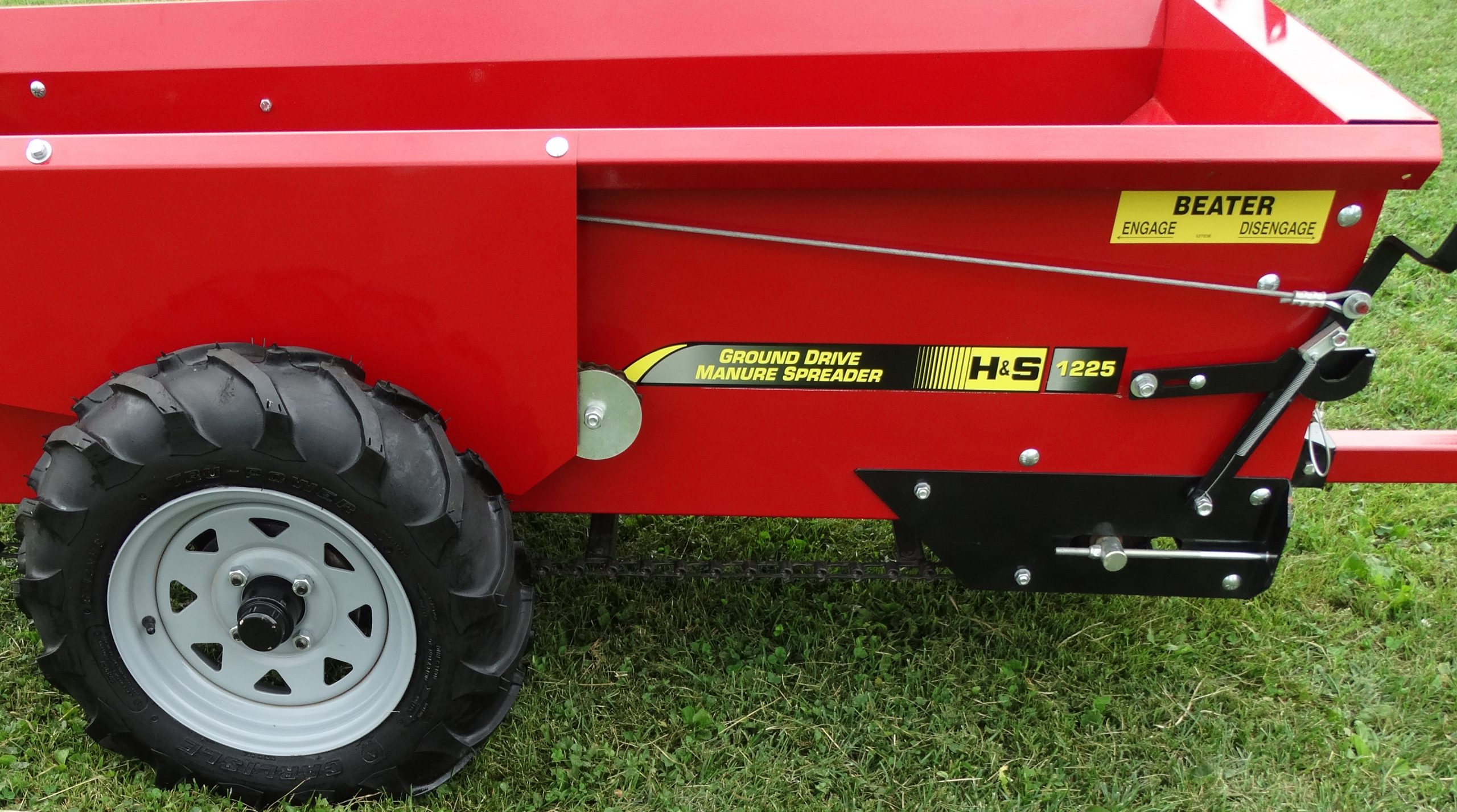

- Separate Apron Engage/Disengage Lever – Beater Engage/Disengage Lever.
| 1225 | |
|---|---|
| CAPACITY – HEAPED (OLD RATING) BU. | 25 bu. |
| CAPACITY – CU. FT. STRUCK LEVEL | 13.6 |
| TOP OF FLARE WIDTH | 28 ½″ (73 cm) |
| INSIDE WIDTH | 22″ (56 cm) |
| INSIDE LENGTH | 6′ (183 cm) |
| INSIDE DEPTH | 17″ (43 cm) |
| OVERALL LENGTH | 9′ 1″ (277 cm) |
| OVERALL LOADING HEIGHT – TOP OF FLARE | 30″ (76 cm) |
| OVERALL HEIGHT W/HYD. ENDGATE | N/A |
| OVERALL WIDTH W/STANDARD TIRES | 42″ (107 cm) |
| STANDARD TIRE SIZE | 6.00 x 12 |
| SPINDLE SIZE | 1 ¼″ (3 cm) |
| DIAMETER OF BEATER | 20″ (51 cm) |
| NUMBER OF PADDLES | 8 |
| MAIN APRON CHAIN | 55 |
| BOX CONSTRUCTION | Powder Coated Steel |
| FLOOR CONSTRUCTION | Bonded Poly |
| APRON DRIVE | Adjustable Ratchet Drive |
| UPPER BEATER | N/A |
| SWING AWAY JACK | N/A |
| WEIGHT W/TIRES | 350 lbs. (159 kg) |
| OPTIONS | FINE SPREAD PAN |
| 1250 | |
|---|---|
| CAPACITY – HEAPED (OLD RATING) BU. | 50 bu. |
| CAPACITY – CU. FT. STRUCK LEVEL | 35 |
| TOP OF FLARE WIDTH | 36″ (91 cm) |
| INSIDE WIDTH | 36″ (91 cm) |
| INSIDE LENGTH | 8′1″ (264 cm) |
| INSIDE DEPTH | 17 ½″ (44 cm) |
| OVERALL LENGTH | 13′ 4″ (406 cm) |
| OVERALL LOADING HEIGHT – TOP OF FLARE | 32 ½″ (82 cm) |
| OVERALL HEIGHT W/HYD. ENDGATE | N/A |
| OVERALL WIDTH W/STANDARD TIRES | 58″ (147 cm) |
| STANDARD TIRE SIZE | 7.60 x 15 |
| SPINDLE SIZE | 1 ¾″ (4 cm) |
| DIAMETER OF BEATER | 17 ½″ (44 cm) |
| NUMBER OF PADDLES | 8 |
| MAIN APRON CHAIN | 62 |
| BOX CONSTRUCTION | Powder Coated Steel |
| FLOOR CONSTRUCTION | Bonded Poly |
| APRON DRIVE | Adjustable Ratchet Drive |
| UPPER BEATER | N/A |
| SWING AWAY JACK | STANDARD |
| WEIGHT W/TIRES | 790 lbs. (358 kg) |
| OPTIONS | FINE SPREAD PAN |
| 1280 | |
|---|---|
| CAPACITY – HEAPED (OLD RATING) BU. | 80 bu. |
| CAPACITY – CU. FT. STRUCK LEVEL | 47 |
| TOP OF FLARE WIDTH | 48″ (122 cm) |
| INSIDE WIDTH | 48″ (122 cm) |
| INSIDE LENGTH | 7′ 1″ (216 cm) |
| INSIDE DEPTH | 17 ½″ (44 cm) |
| OVERALL LENGTH | 13′ 4″ (406 cm) |
| OVERALL LOADING HEIGHT – TOP OF FLARE | 33″ (84 cm) |
| OVERALL HEIGHT W/HYD. ENDGATE | N/A |
| OVERALL WIDTH W/STANDARD TIRES | 72″ (183 cm) |
| STANDARD TIRE SIZE | 7.60 x 15 |
| SPINDLE SIZE | 2″ (5 cm) |
| DIAMETER OF BEATER | 18 ½″ (47 cm) |
| NUMBER OF PADDLES | 10 |
| MAIN APRON CHAIN | 67H |
| BOX CONSTRUCTION | Powder Coated Steel |
| FLOOR CONSTRUCTION | Bonded Poly |
| APRON DRIVE | Adjustable Ratchet Drive |
| UPPER BEATER | N/A |
| SWING AWAY JACK | STANDARD |
| WEIGHT W/TIRES | 975 lbs. (442 kg) |
| OPTIONS | FINE SPREAD PAN |
WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
Rear trip pan.
