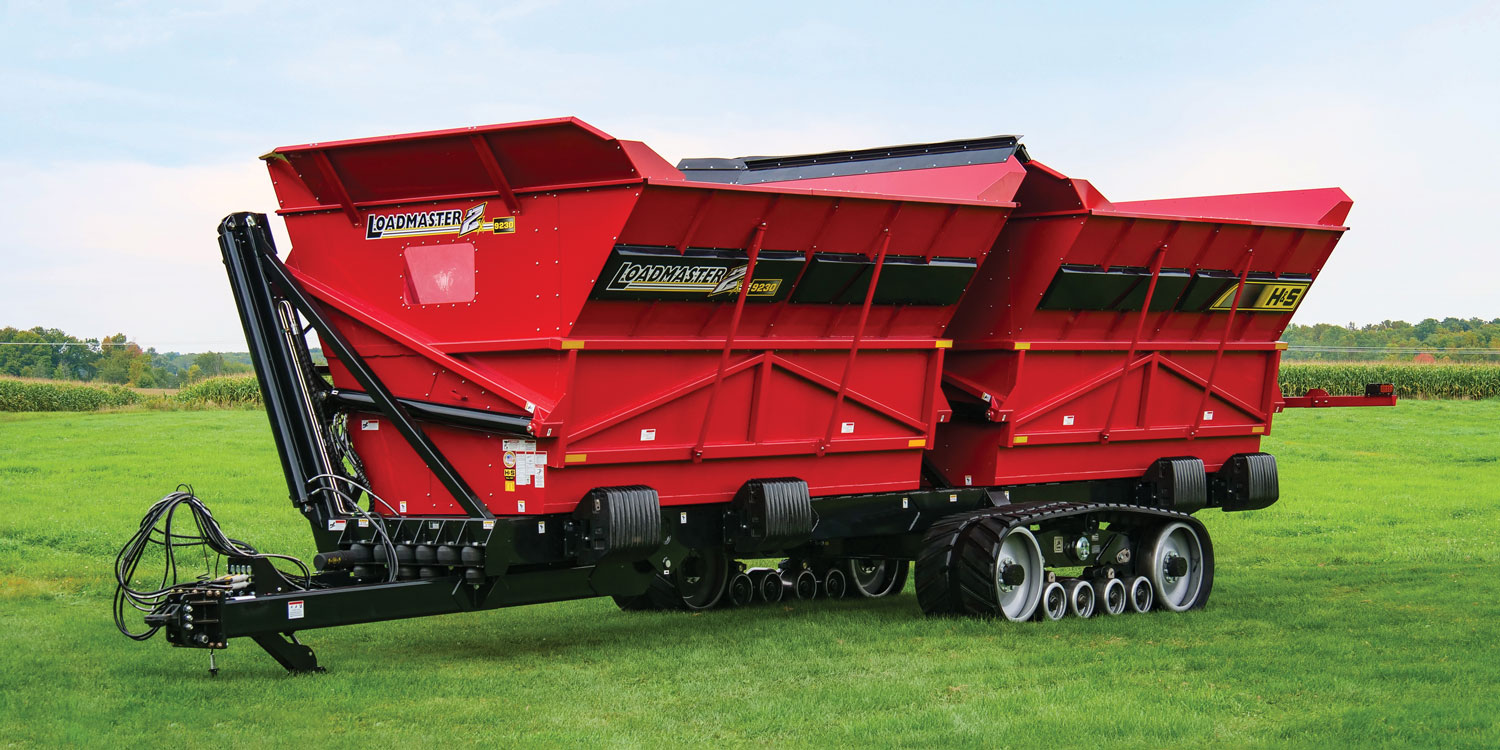

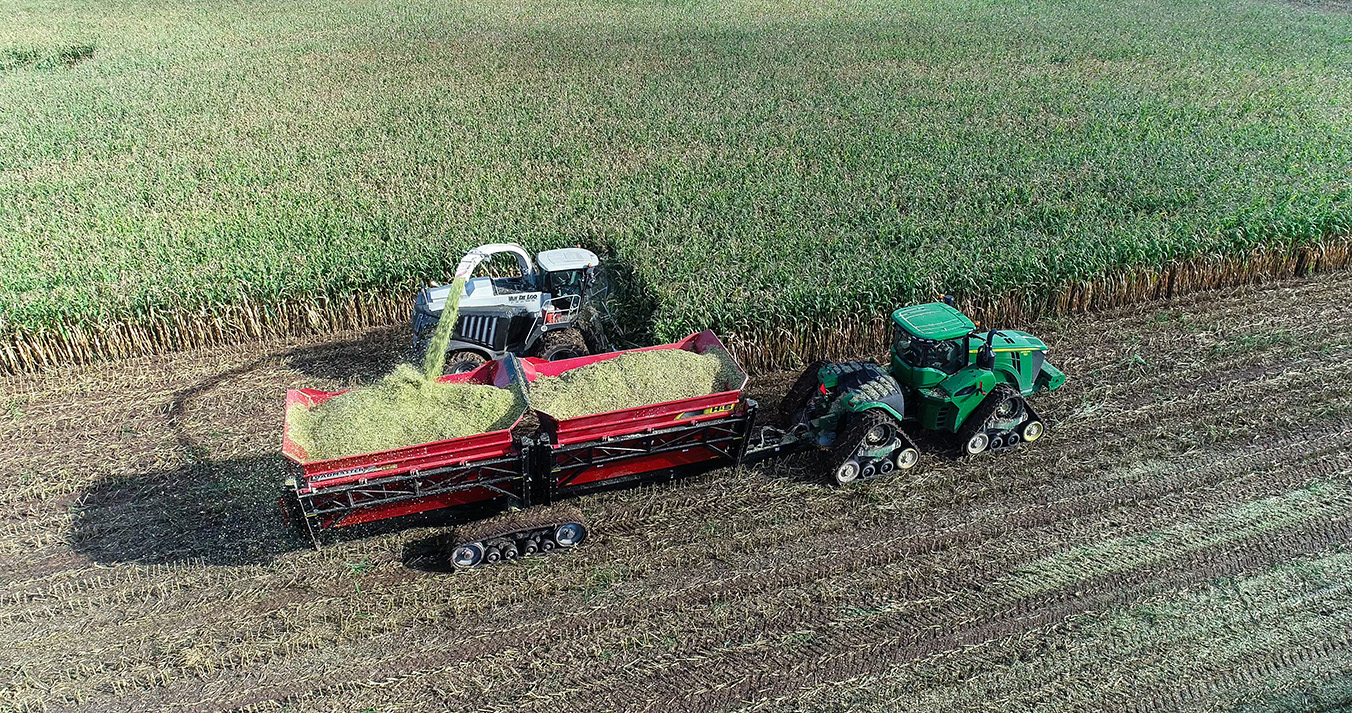

LOADMASTER 9230 2X HI-DUMP BOX

  • Rubber tongue suspension system.
  • Combination 10 and 12 gauge steel tub construction.
  • Heavy gusseted and reinforced box style frame.
  • Each box is capable of lifting and dumping approximately 30,000 lbs. of product for a total of 60,000 lbs.
  • The variable dumping height gives you more versatility at harvest time.
  • The ENTIRE dumping cycle should take approximately two minutes depending on hydraulic supply output.
  • The master/slave hydraulic system automatically rephases at the end of each cylinder stroke and has the flexibility to top off a truckload with a partial dump – not restricted to a
    full dump cycle.

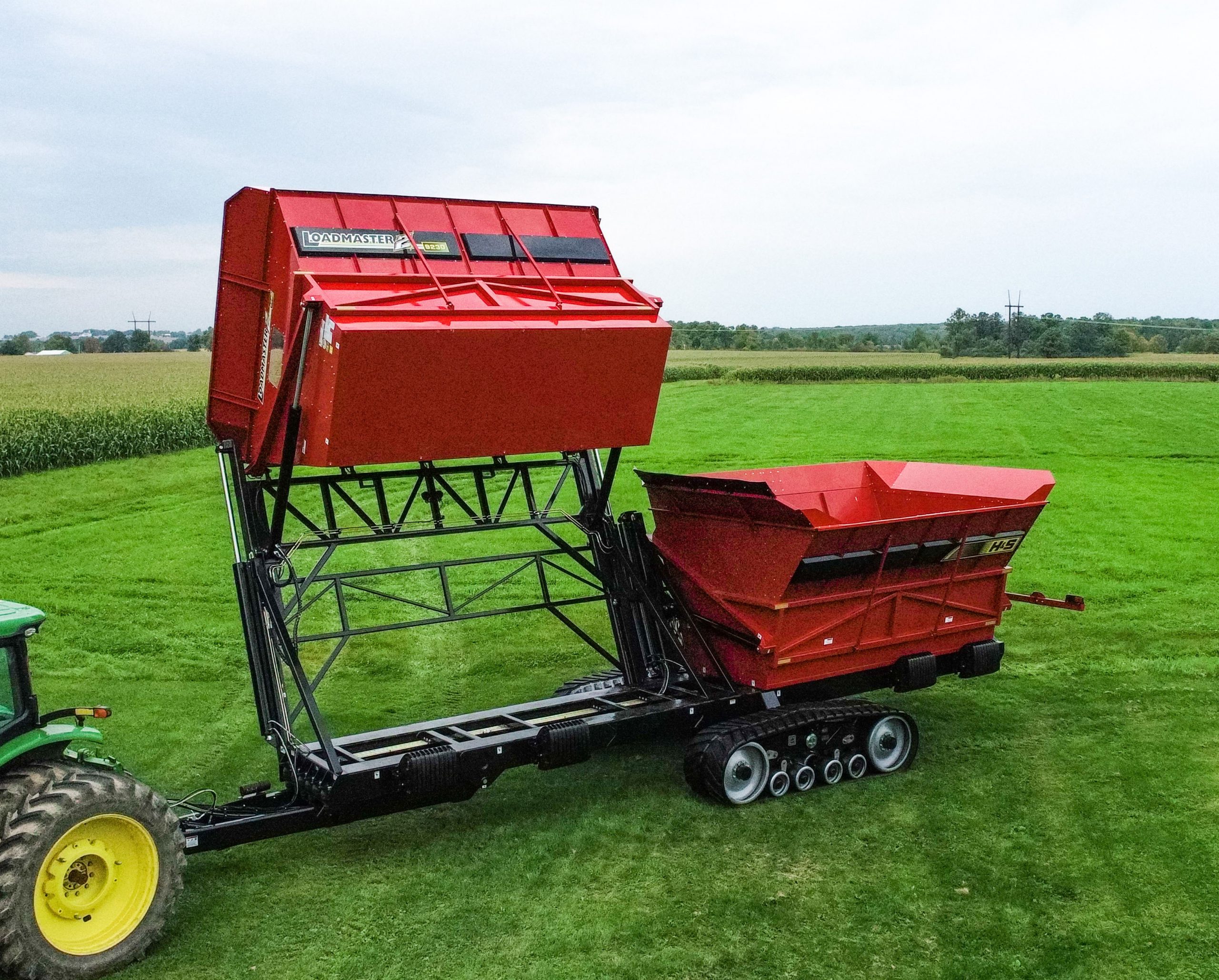

  • Right hand dump has a 47 degree dumping angle with a dump height of over 15′.
  • (1) 27” x 16” sight window and (2) tub access panels in each box.
  • LED highway lighting.
  • Adjustable height single clevis swivel hitch.
  • Camso track system.
  • Hydraulic jack.
  • Optional dumping lip extensions for 36′ and 40′ semi-boxes.



HDB9230
Cubic Ft. Capacity Struck Level w/o Ext.                                      (2) @ 863 cu. ft. each
Cubic Ft. Capacity Struck Level w/ Ext. (2) @ 1,129 cu. ft. each
Inside Length of each Box 180” (15’)
Inside Width of each Box – Bottom/Top 65”/136” (5’ 5”/11’ 4”)
Depth of each Box 89” (7’ 5”)
Overall Length 568” (47′ 4″)
Overall Width 163” (13’ 7”)
Overall Height 158” (13’ 2”)
Loading Height                                       134” (11’ 2”)
Shipping Height 134” (11’ 2”)
Front Lift Cylinder (size/length on each box) 5.5” x 72”
Rear Lift Cylinder (size/length on each box) 4.75” x 72”
Dump Cylinders (size/length on each box) 5” x 71.25”
Maximum Dump Lip Clearance 31” (2’ 7”)
Minimum Dump Height 116” (9’ 8”)
Maximum Dump Height 184” (15’ 4”)
Maximum Ground Clearance                                                                                            N/A
Tread Width 163” (13’ 7”)
Track Pivot Shaft Size N/A
Jack Hydraulic
Shipping Weight 48,177 lbs.



WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

• 36′ Dumping Lip Extension

• 40′ Dumping Lip Extension

• Category 4 Bullnose Hitch

Category 5 Bullnose Hitch
