The H&S GM9117 & RM7117 both offer the convenience, dependability and smoothness of hydraulically operated feed making on your farm.
Features of the GM9117 & RM7117 include:
- The self-contained hydraulic system includes a pulley-driven pump and a 15 gallon reservoir w/filter system provides circulation to cool the oil. The hydraulic motor provides a flow of 12 GPM.
- Magnets in either of the machines remove any metal that may accidentally mix with the material entering the mill.
- The 240 degree swing radius of the unloading auger allows repositioning of the discharge auger from one side of the machine to the other without moving the grinder-mixer.
- A 14″ mixing auger with a 30″ base provides superior mixing uniformity.
- An adjustable slip clutch on the auger rotation provides protection if foreign objects are encountered.
- Mixer drive systems are shear bolt protected
- A large discharge door provides high-capacity unloading.
- Mixer feeding attachments and unloading mechanisms are all driven hydraulically.
- 5-porthole windows allow the operator to see feed levels.
- A 14″ mixing auger with a 30″ base provides superior mixing uniformity.

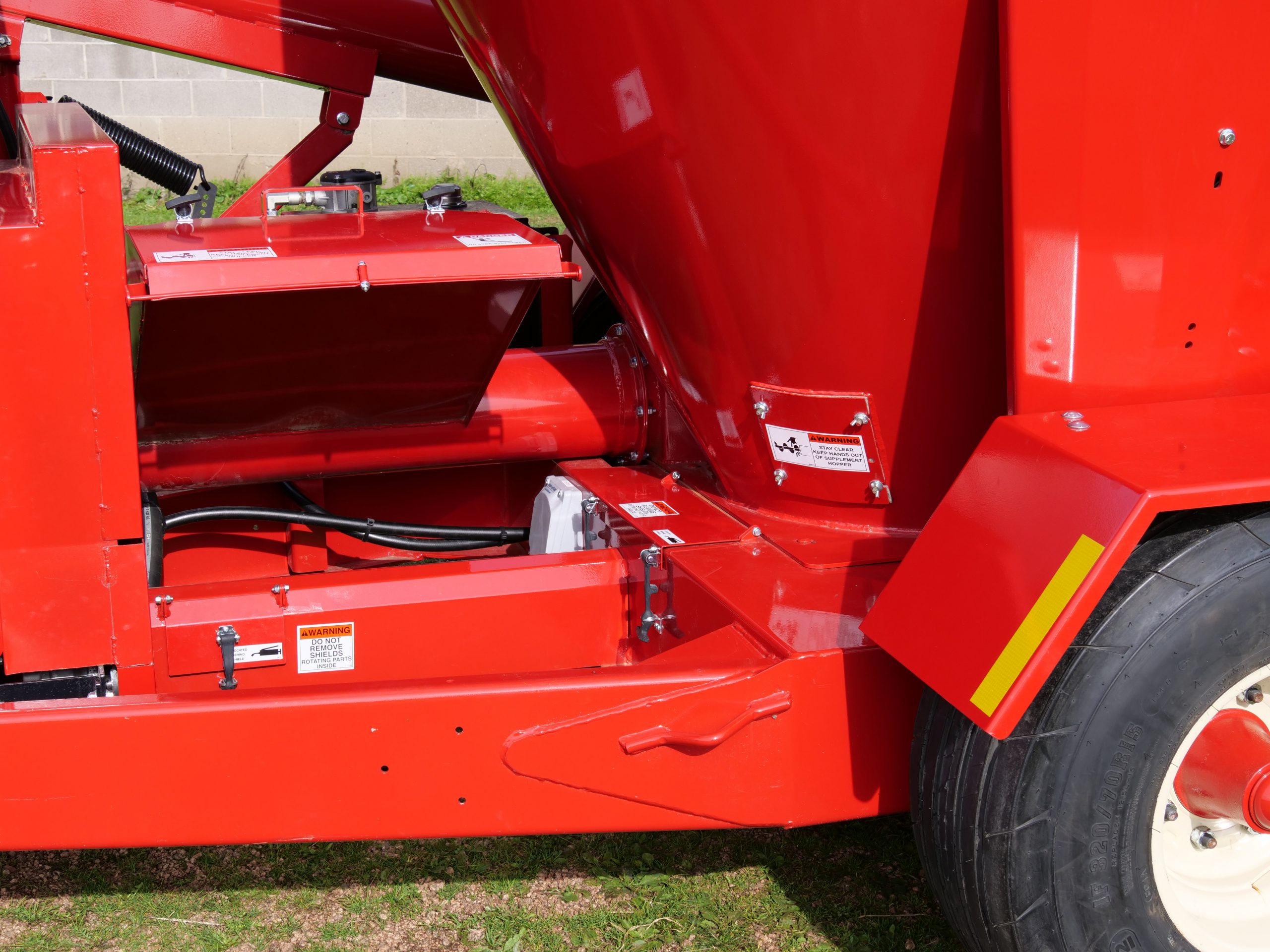

- Mixers feature a side mounted supplement hopper.
- Transport lights are standard equipment.

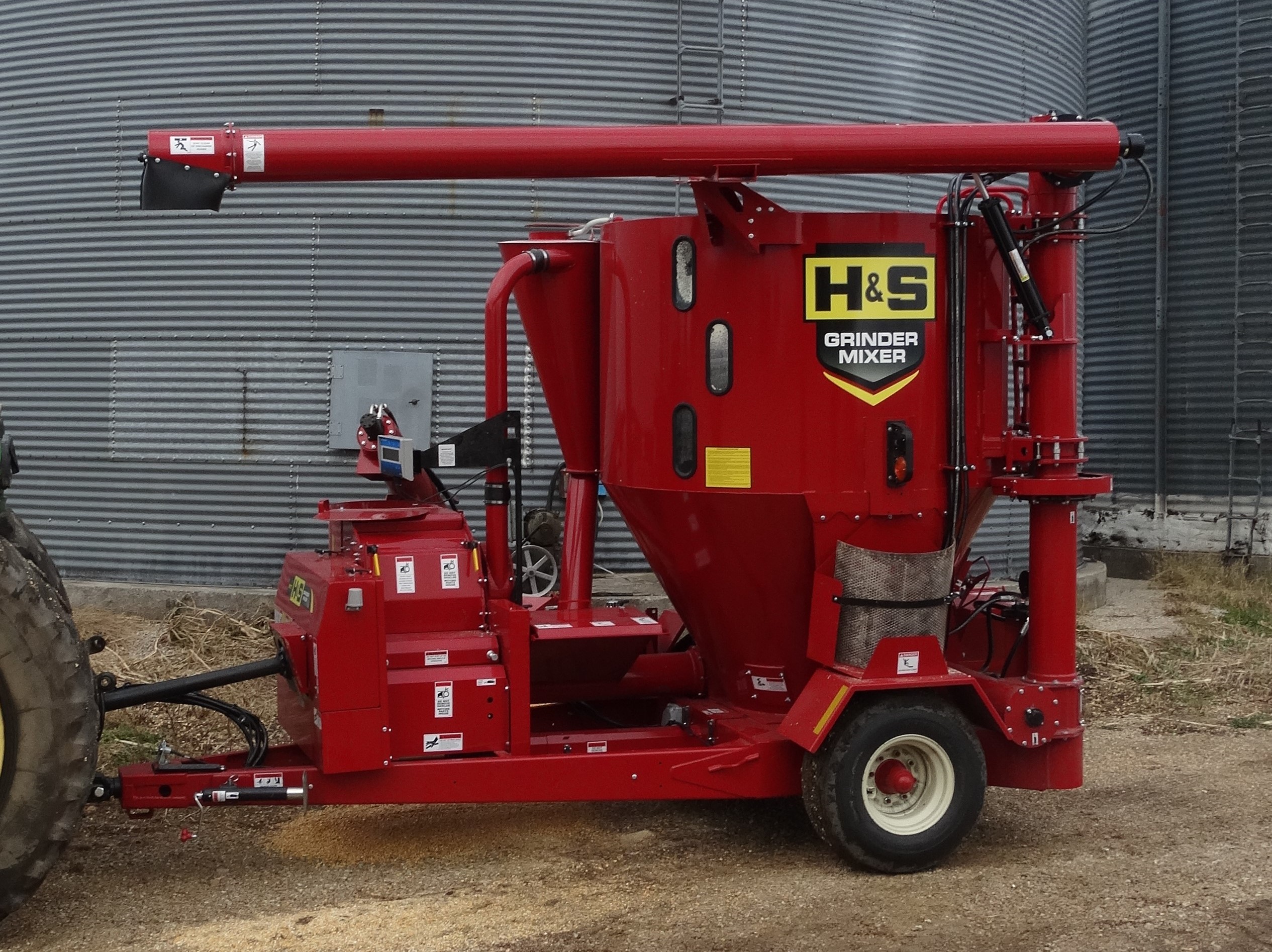

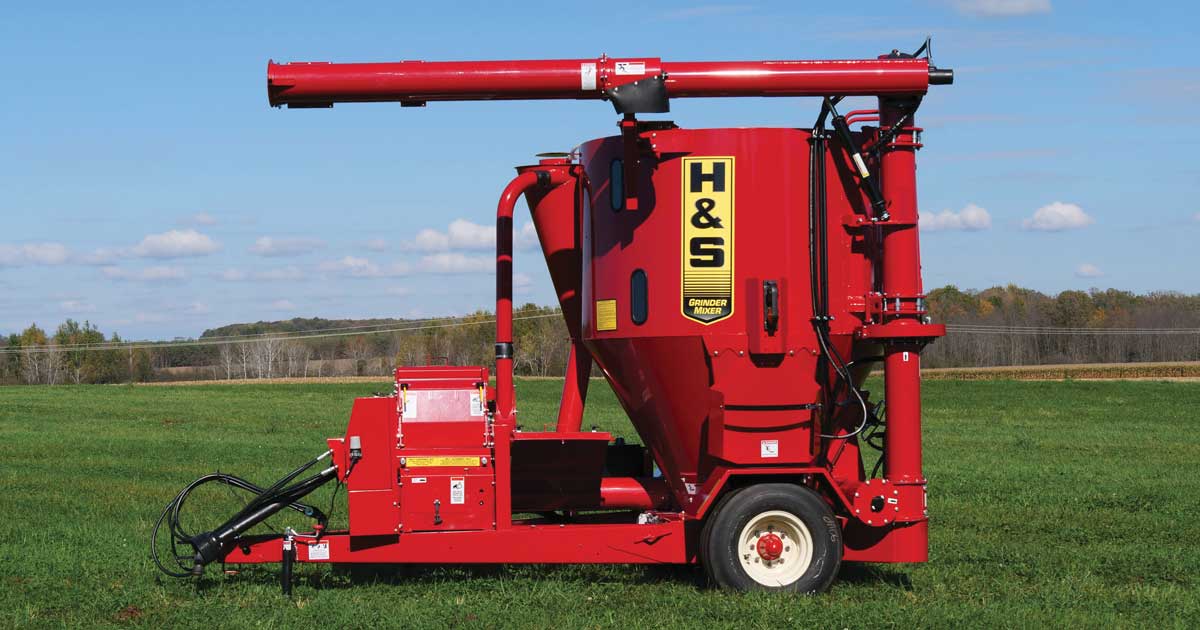

GM9117 GRINDER MIXER |
|
|---|---|
| TANK CAPACITY-BUSHEL | 135 |
| TANK CAPACITY-CUBIC FT. | 167 |
| TANK DIAMETER | 74″ |
| DIAMETER OF MIXING AUGER | 14″ Diameter w/30″ Base |
| LADDER | Foldable Rear Mount Non-Slip |
| TANK WINDOWS | 5-Port Hole Style |
| OVERALL HEIGHT | 10′ 8″ |
| OVERALL WIDTH | N/A |
| OVERALL LENGTH | 15′ |
| GROUND CLEARANCE | 12″ |
| SUPPLEMENT HOPPER | Side Mounted | Optional Rear Hopper |
| FEEDER | Standard Gravity Hopper | Optional Swinging Intake Augers |
| PTO DRIVE | 540 RPM Standard | Optional 1000 RPM |
| H.P. REQUIREMENT | 540 RPM up to 115 HP – 1000 RPM up to 145 HP |
| TIRES | 12.5L – 15 – 20 Ply |
| JACK | Standard |
| WEIGHT | N/A |
| DRIVE SYSTEM | |
| SELF-CONTAINED | Includes Pump, 15 Gallon Reservoir w/Filter and Pressure Relief Valve |
| PUMP PRESSURE | 3,200 PSI Maximum |
| OIL FLOW | 12 G.P.M. |
| HAMMERMILL SPECIFICATIONS | |
| HAMMERMILL WIDTH | 21″ |
| CYLINDER DIAMETER | 20″ |
| GRINDER DRIVE | 8 “A” Section Banded V-Belt |
| GRINDER HAMMERS | 66-4 Way Reversible Steel Alloy |
| CYLINDER SPEED | 2700 RPM |
| THROAT MAGNET | 2 – 3″ x17″ |
| GRINDER SCREEN AREA | 600 Square Inches |
| DISCHARGE AUGER SYSTEM | |
| UNLOADING AUGER TUBE DIAMETER | 8″ |
| UNLOADING AUGER LENGTH | 12′ |
| UNLOADING AUGER ROTATION | 240 Degrees |
| UNLOADING AUGER REACH STANDARD | Approx. 19′ at 53 Degrees |
| UNLOADING AUGER W/3′ EXTENSION | Approx. 21′ 6″ at 53 Degrees |
| UNLOADING AUGER W/6′ EXTENSION | Approx. 23′ 10″ at 53 Degrees |
RM7117 ROLLER MIXER |
|
| TANK CAPACITY-BUSHEL | 135 |
| TANK CAPACITY-CUBIC FT. | 167 |
| TANK DIAMETER | 74″ |
| DIAMETER OF MIXING AUGER | 14″ Diameter w/30″ Base |
| LADDER | Foldable Rear Mount Non-Slip |
| TANK WINDOWS | 5-Port Hole Style |
| OVERALL HEIGHT | 10′ 8″ |
| OVERALL WIDTH | N/A |
| OVERALL LENGTH | 15′ |
| GROUND CLEARANCE | 12″ |
| SUPPLEMENT HOPPER | Side Mounted | Optional Rear Hopper |
| FEEDER | Standard Gravity Hopper | Optional Swinging Intake Augers |
| PTO DRIVE | 540 RPM |
| H.P. REQUIREMENT | 540 RPM up to 125 HP |
| TIRES | 12.5L – 15 – 20 Ply |
| JACK | Standard |
| WEIGHT | N/A |
| DRIVE SYSTEM | |
| SELF-CONTAINED | Includes Pump, 15 Gallon Reservoir w/Filter and Pressure Relief Valve |
| PUMP PRESSURE | 3,200 PSI Maximum |
| OIL FLOW | 12 G.P.M. |
| DISCHARGE AUGER SYSTEM | |
| UNLOADING AUGER TUBE DIAMETER | 8″ |
| UNLOADING AUGER LENGTH | 12′ |
| UNLOADING AUGER ROTATION | 240 Degrees |
| UNLOADING AUGER REACH STANDARD | Approx. 19′ at 53 Degrees |
| UNLOADING AUGER W/3′ EXTENSION | Approx. 21′ 6″ at 53 Degrees |
| UNLOADING AUGER W/6′ EXTENSION | Approx. 23′ 10″ at 53 Degrees |
| ROLLER MILL SPECIFICATIONS | |
| Rolls | 2 – 18″ Wide x 16 Diameter Chill Cast Rolls |
| Roll Drive | 540 RPM Direct |
| Grooves Per Inch (GPI) | Choice of 4, 5, 6, 8, 10, 12 or 15 GPI Rolls |
| Roll Protection | Leaf Spring |
| Magnets | Top Hopper w/Grate Magnet |
WARRANTY: SEE OERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
Hydraulic Drive Corn Cob-Style Variable Speed Swinging Intake Auger w/Fold-In Flair
Hydraulic Drive Conventional Variable Speed Swinging Intake Auger w/Fold-In Flair
Rear Supplement Hopper
Digi – Star EZ 2500 Electronic Scale
Digi – Star EZ 3410 Electronic Scale W/External Horn
3′ and 6′ Discharge Auger Extensions
9117 – 1000 RPM PTO In Lieu Of Standard 540 RPM PTO
Mill Screens
